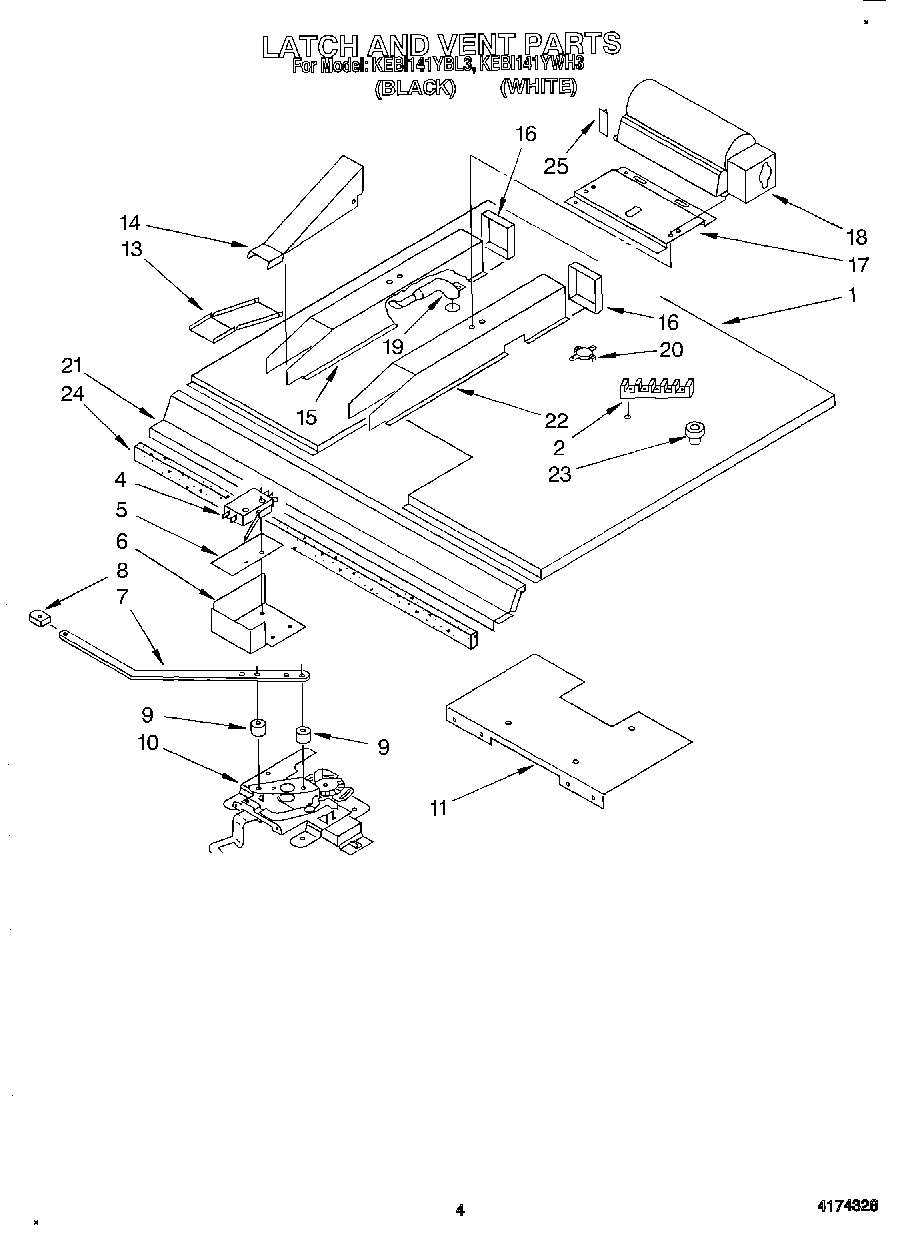

KEBI141YBL3 03 – LATCH AND VENT

KEBI141YBL3 03 – LATCH AND VENT

Written by

in

KEBI141YBL3 03 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Screw,
4Switch, Latch
4Screw
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Knob, Latch Handle
8Screw
9Screw (2)
9Spacer, Latch Handle
10Latch, Mechanism
11Plate, Mounting
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
15Screw
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Tube, Vent
20Screw
20SPST Thermostat
21Shield, Heat
21WP3177991 Whirlpool Screw
22Box, Vent
23Bushing
24Seal, foam
25Screw
25Baffle-Blower
