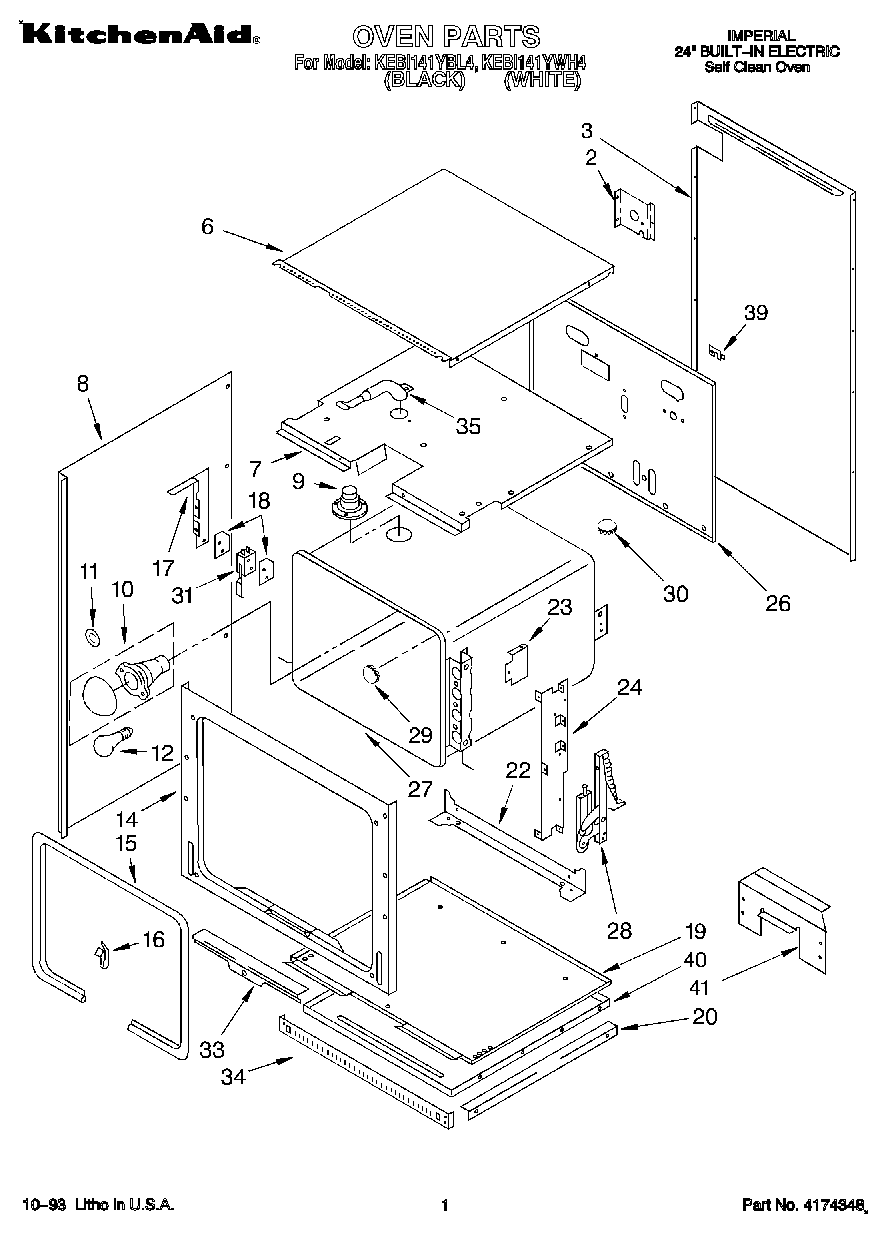

KEBI141YBL4 01 – OVEN, OPTIONAL

KEBI141YBL4 01 – OVEN, OPTIONAL

Written by

in

KEBI141YBL4 01 – OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
40	Bottom, Oven
41	242831 Whirlpool Oven Wire
41	Wire (14 Ga. 200 c Brown)
41	WPL 832985
41	WPL 591014
41	WPL 350806
41	WPL 3185550
41	WPL 3182584
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Orange)
41	Wire (14 Ga. 150 c Yellow)
41	Wire (12 Ga. 150 c Black)
41	18 Ga. 80~c Rating (Red)
41	WP261869 Whirlpool Microwave Paint
41	1
41	WPL 3177870
41	Wire (14 Ga. 150 c Blue)
41	Golden Harvest
41	Golden Harvest (Uncut)
41	72113 Whirlpool Touch-Up Paint
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	WP3177991 Whirlpool Screw
41	Almond (Uncut)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	350956 Whirlpool Spray Assembly
41	Toast
41	Paint, Spray (13 Oz.) (Platinum)
41	Enamal, Toast (1 Qt. Uncut)
41	WP482338 Whirlpool Refrigerator Adhesive
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	Wire, 25“ Roll (White 14 GA.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25` Roll (Black 14 Ga.)
41	WPL 799832
41	350942 Whirlpool Spray Paint
41	WPL 72112
41	Platinum (Uncut)
41	350930 Whirlpool White Spray Paint
