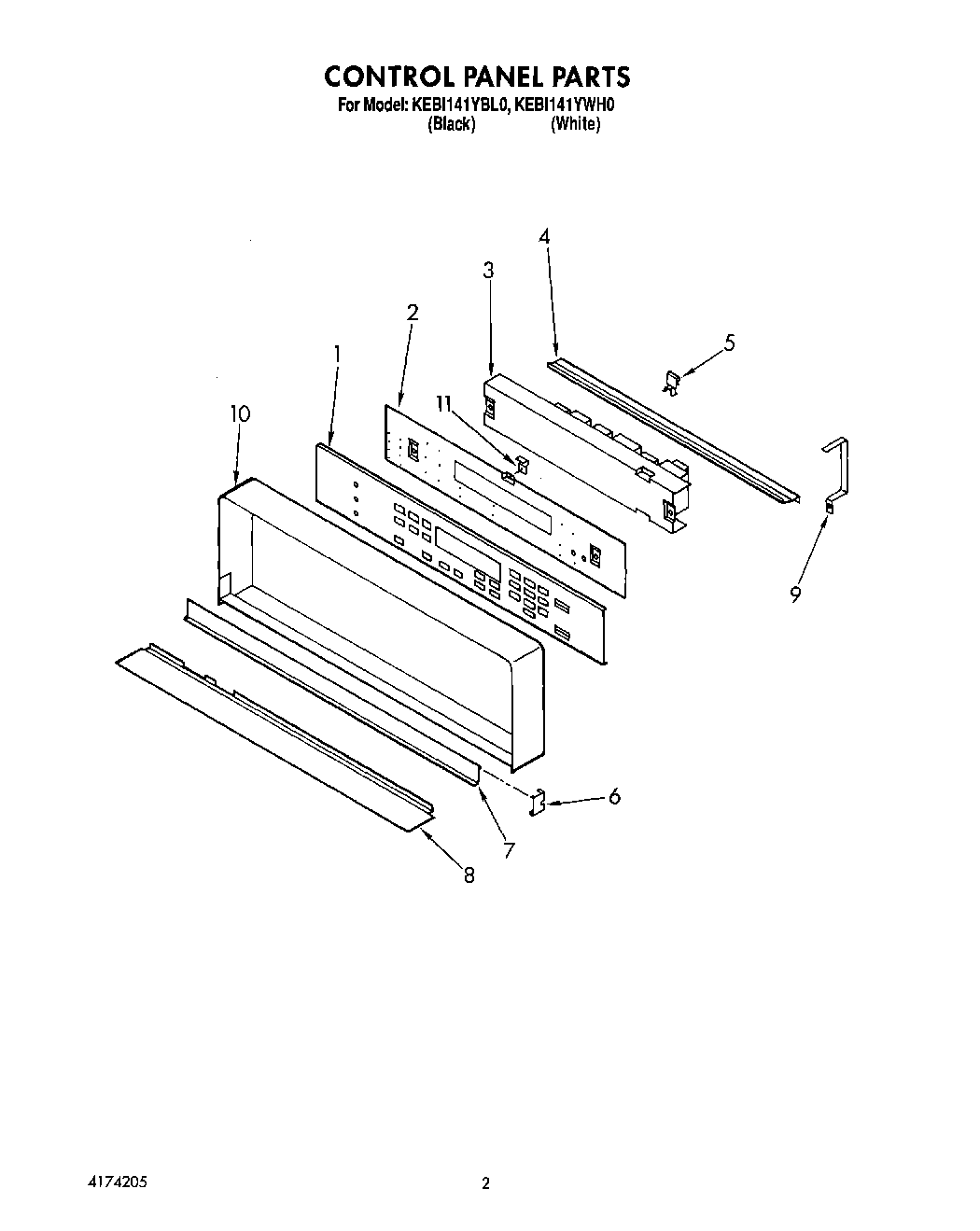

KEBI141YWH0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Tech Sheet
WPL LIT3182134
Repair Parts List
Installation Instructions
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel
11Clip, Control Frame
11Screw
