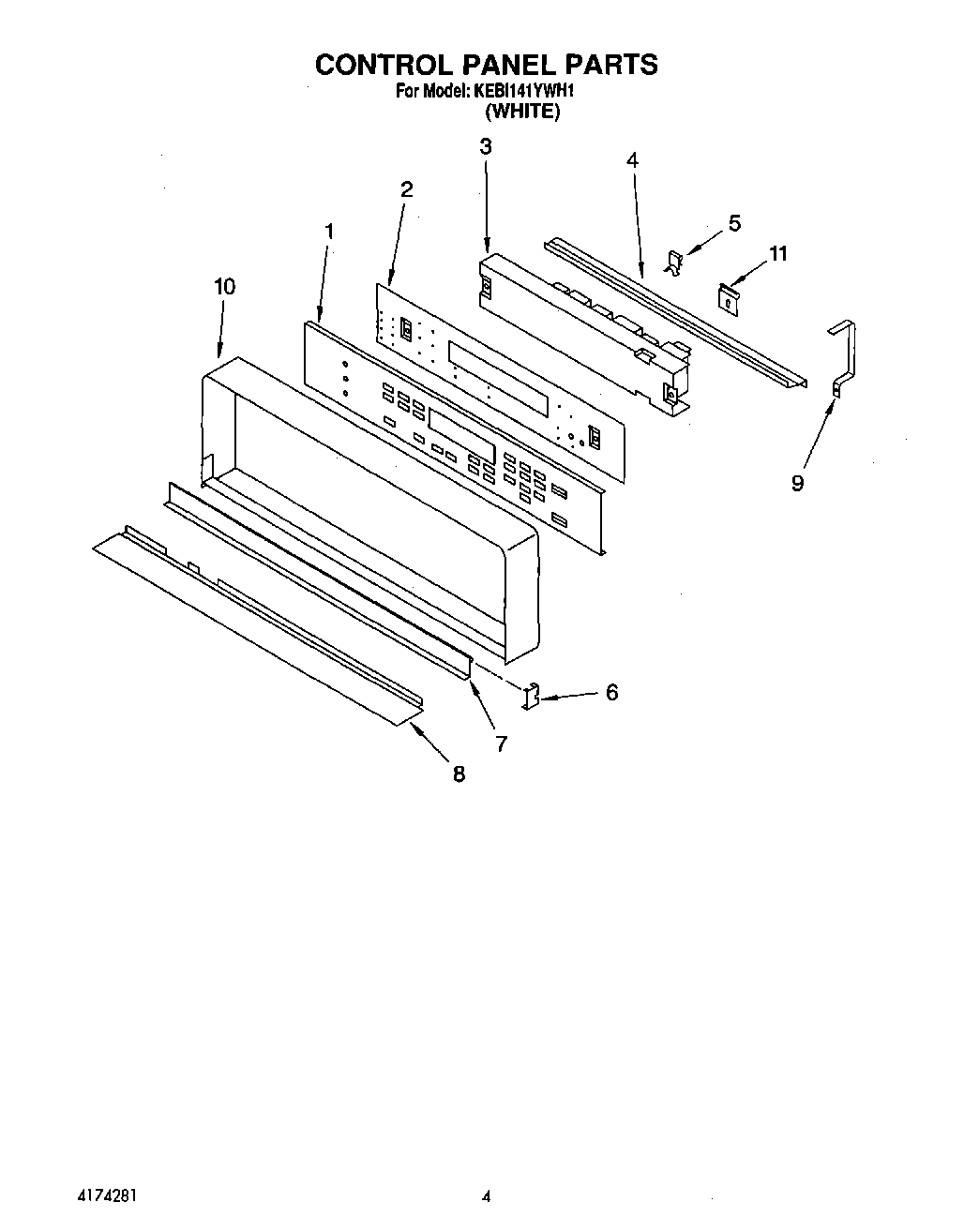

KEBI141YWH1 02 – CONTROL PANEL, LIT/OPTIONAL

KEBI141YWH1 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBI141YWH1 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Tech Sheet
WPL LIT3182134
Repair Parts List
Installation Instructions
1Membrane, Switch (White Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
11Screw
