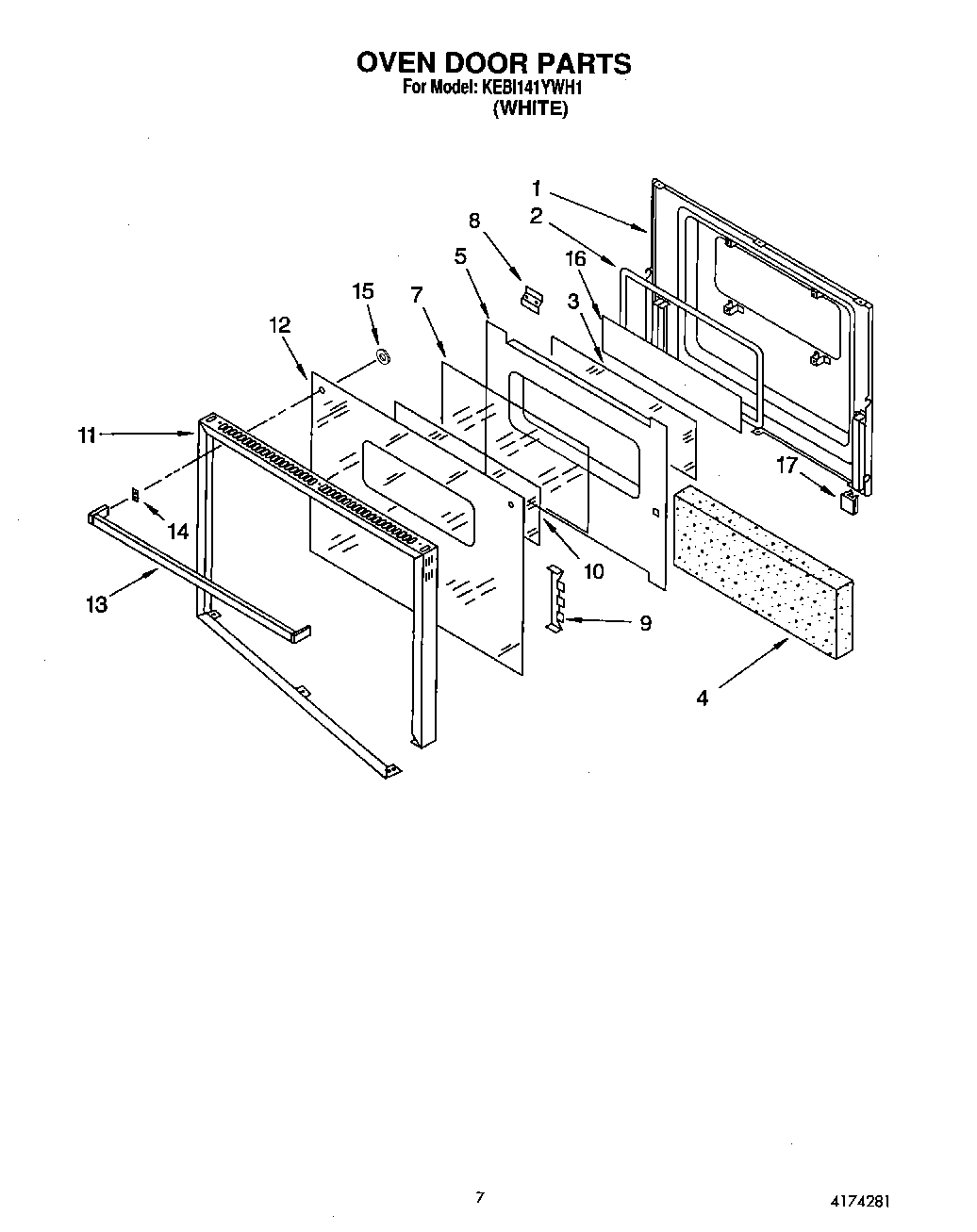

KEBI141YWH1 05 – OVEN DOOR

KEBI141YWH1 05 – OVEN DOOR

Written by

in

KEBI141YWH1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
5	Screw
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Vent, Lower Trim (Screw (2))
15	Bushing, Door Handle
15	Screw
16	Foil-Adhesive Backed
17	Bumper, Door Glass
