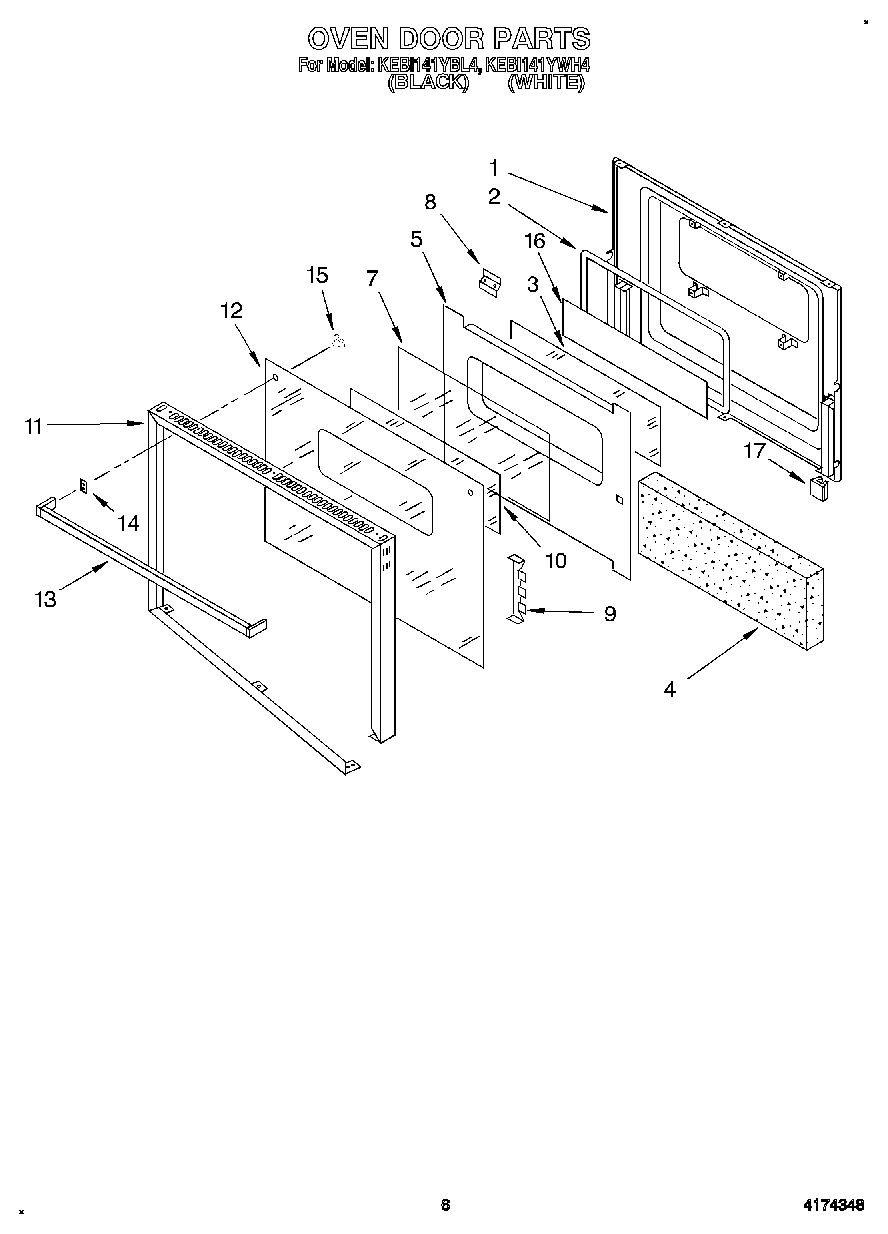

KEBI141YWH4 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
5	Screw
7	Glass, Reflective
8	Latch, Strike
9	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (Black Model)
12	Glass, Door (White Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Screw
15	Bushing, Door Handle
15	Screw, 10-32 x 1/2
16	Foil-Adhesive Backed
17	Bumper, Door Glass
