KEBI170SBL1 05 – OVEN DOOR, LITERATURE

KEBI170SBL1 05 – OVEN DOOR, LITERATURE

Written by

in

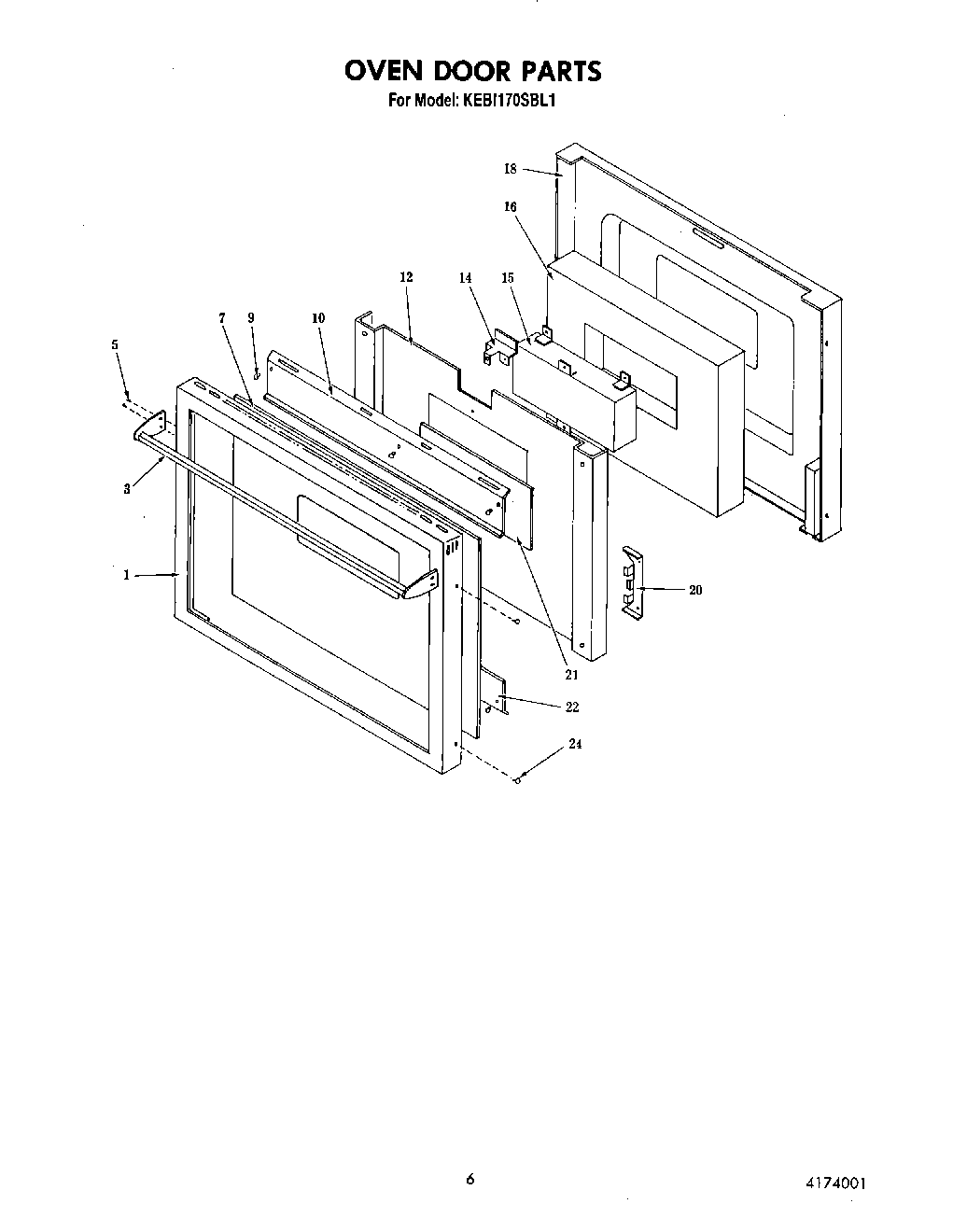

KEBI170SBL1 05 – OVEN DOOR, LITERATURE

Products

PositionProduct
List, Repair Parts
Use and Care Guide
Installation Instructions
1Door Frame
3Door Handle
5Screw, 8-32 X 3/8“ PFHMS
7Door Glass
9Rubber Bumper
10Air Baffle
12Retainer, Insulation
14Bracket, Lock
15Window Package
16Insulation
18Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
22Air Baffle, Bottom
24Vent, Lower Trim (Screw (2))
