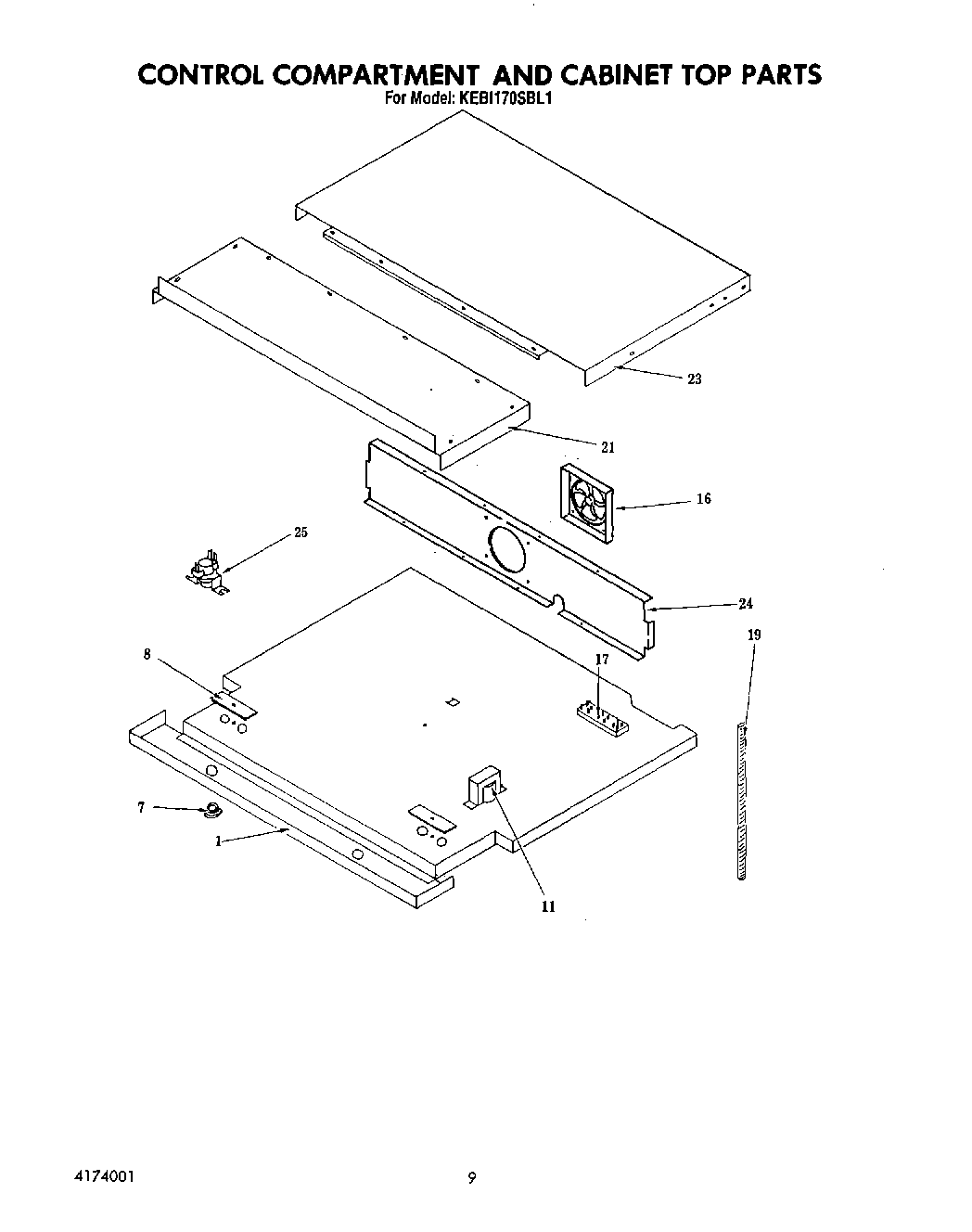

KEBI170SBL1 07 – CONTROL COMPARTMENT AND CABINET TOP
Written by
in
KEBI170SBL1 07 – CONTROL COMPARTMENT AND CABINET TOP
Products
| Position | Product |
|---|---|
| 1 | Sandwich Panel |
| 7 | Bushing |
| 8 | Hole Cover |
| 11 | Transformer |
| 16 | Blower |
| 17 | Terminal Block, Power Supply |
| 19 | Conduit, 1/2“ X 56“ |
| 21 | Cabinet Top, Front |
| 23 | Cabinet Top, Rear |
| 24 | Panel, Blower Mounting |
| 25 | Switch, Fan |
