KEBI171BBL0 03 – OVEN DOOR

KEBI171BBL0 03 – OVEN DOOR

Written by

in

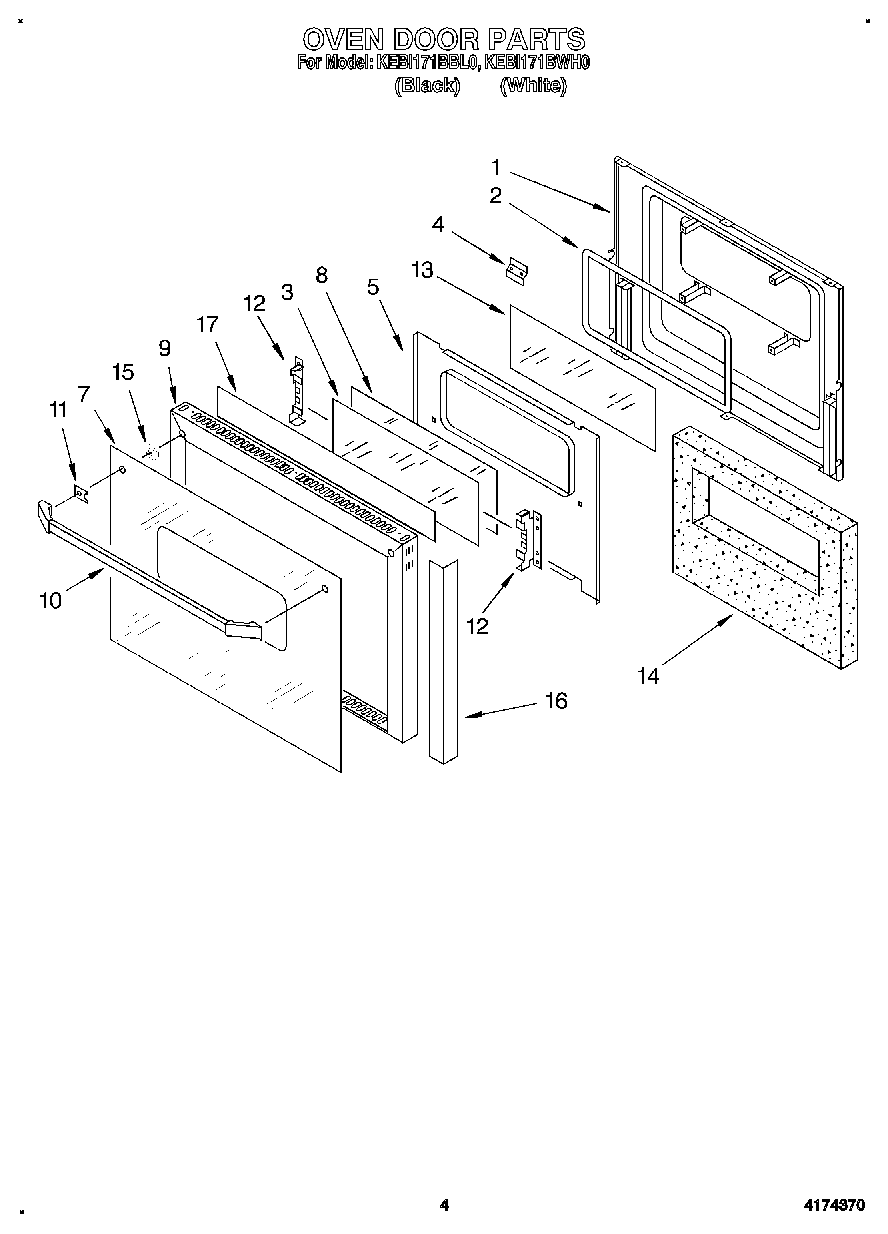

KEBI171BBL0 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Retainer, Insulation
5	Vent, Lower Trim (Screw (2))
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
8	Glass, Reflective
9	Frame, Door (Black Model)
9	Frame, Door (White Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
11	Spacer, Door Handle
12	Screw
12	Retainer, Glass
13	Glass, Clear
14	Insulation, Door
15	Screw
15	Bushing, Door Handle
16	Foil-Adhesive
17	Foil, Adhesive
