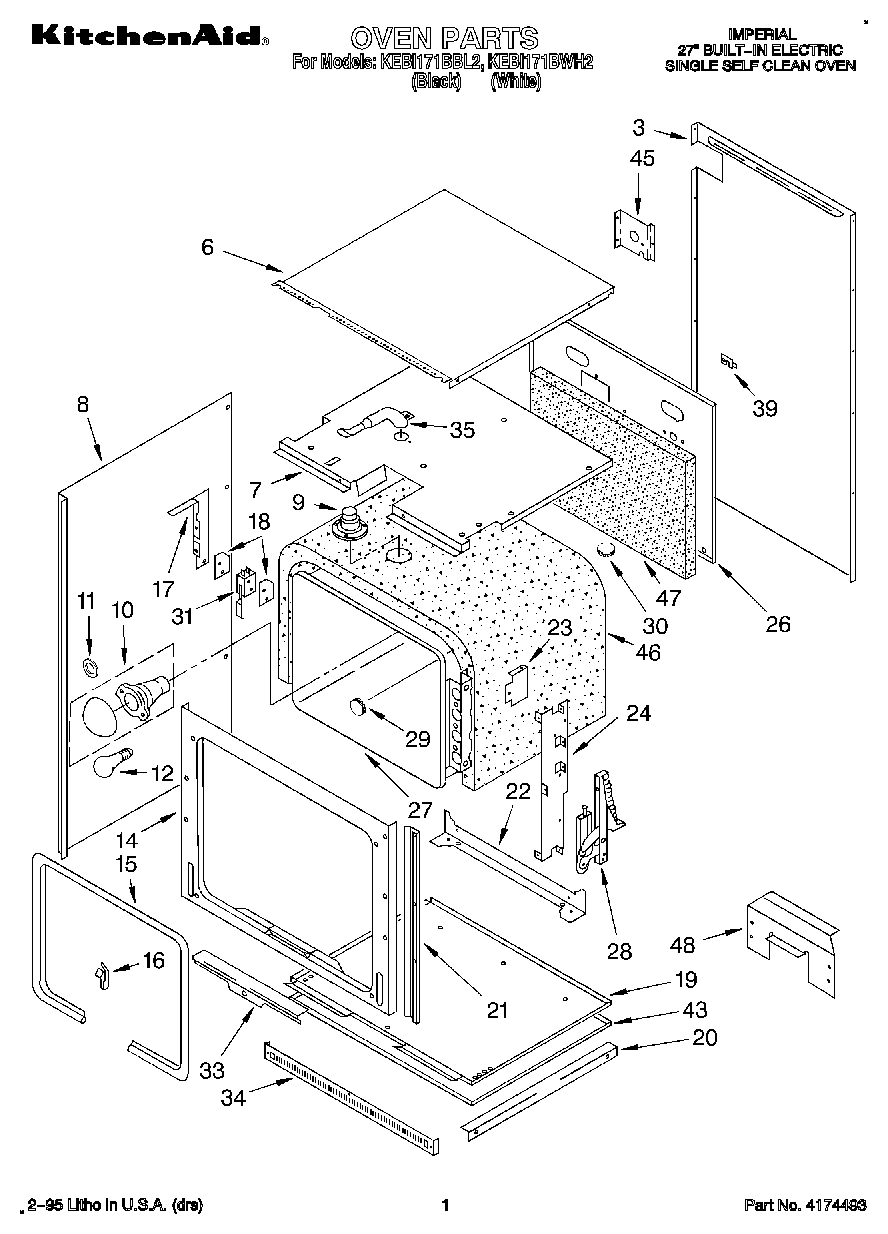

KEBI171BBL2 01 – OVEN, OPTIONAL

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Trim, Door Side (2) (Black Model)
21	Side Trim, Door (2) (White Model)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Screw (2)
31	Nut (2)
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
35	Tube, Vent
39	Screw
39	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
48	Wire (14 Ga. 150 c Brown)
48	Wire (14 Ga. 150 c Blue)
48	WP261869 Whirlpool Microwave Paint
48	242831 Whirlpool Oven Wire
48	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
48	Wire (14 Ga. 150 c Green)
48	Wire (14 Ga. 150 c Orange)
48	Wire (14 Ga. 150 c Yellow)
48	Wire (12 Ga. 150 c Black)
48	350930 Whirlpool White Spray Paint
48	350956 Whirlpool Spray Assembly
48	WPL 832985
48	WPL 591014
48	WPL 350806
48	1
48	Wire (14 Ga. 200 c Brown)
48	18 Ga. 80~c Rating (Red)
48	Golden Harvest
48	72017 Whirlpool Appliance Touch-Up Paint White
48	799344 Whirlpool Refrigerator Paint
48	350942 Whirlpool Spray Paint
48	WPL 799832
48	Wire, 25` Roll (Black 14 Ga.)
48	Wire, 25` Roll (Red 14 Ga.)
48	Wire, 25“ Roll (White 14 GA.)
48	285006 Whirlpool Spray
48	72032 Whirlpool Touch Up Paint Black
48	WP482338 Whirlpool Refrigerator Adhesive
48	WPL 72112
48	Platinum (Uncut)
48	Enamal, Toast (1 Qt. Uncut)
48	WP72107 Whirlpool Touchup
48	WPL 3183752
48	Leveler (Thinner)
48	Almond (Uncut)
48	72113 Whirlpool Touch-Up Paint
48	Golden Harvest (Uncut)
48	Toast
48	Paint, Spray (13 Oz.) (Platinum)
48	Screw
