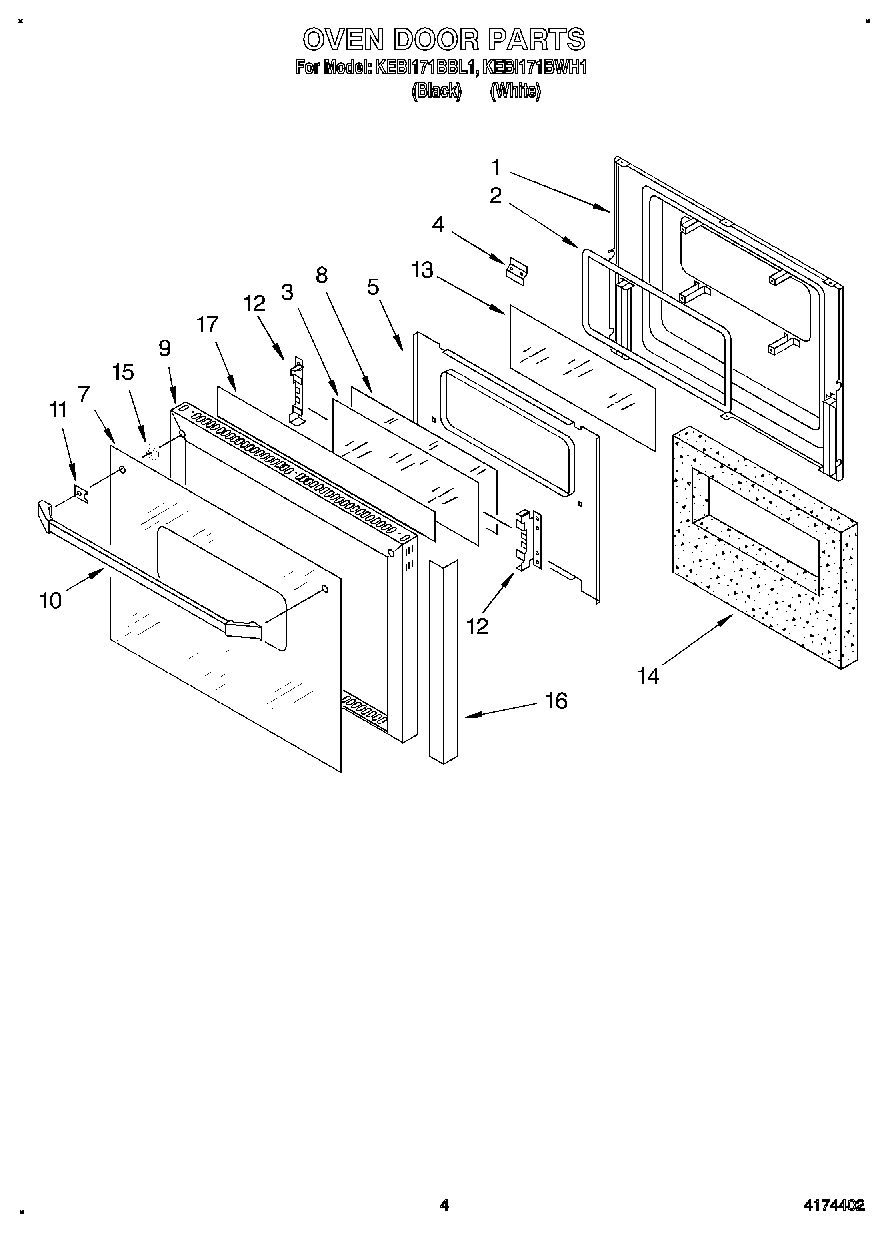

KEBI171BWH1 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Latch, Strike
5Retainer, Insulation
5Vent, Lower Trim (Screw (2))
7Glass, Door (White Model)
7Glass, Door (Black Model)
8Glass, Reflective
9Frame, Door (Black Model)
9Frame, Door (White Model)
10Handle, Door (Black Model)
10Handle, Door (White Model)
11Spacer, Door Handle
12Screw
12Retainer, Glass
13Glass, Clear
14Insulation, Door
15Screw
15Bushing, Door Handle
16Foil-Adhesive
17Foil, Adhesive
