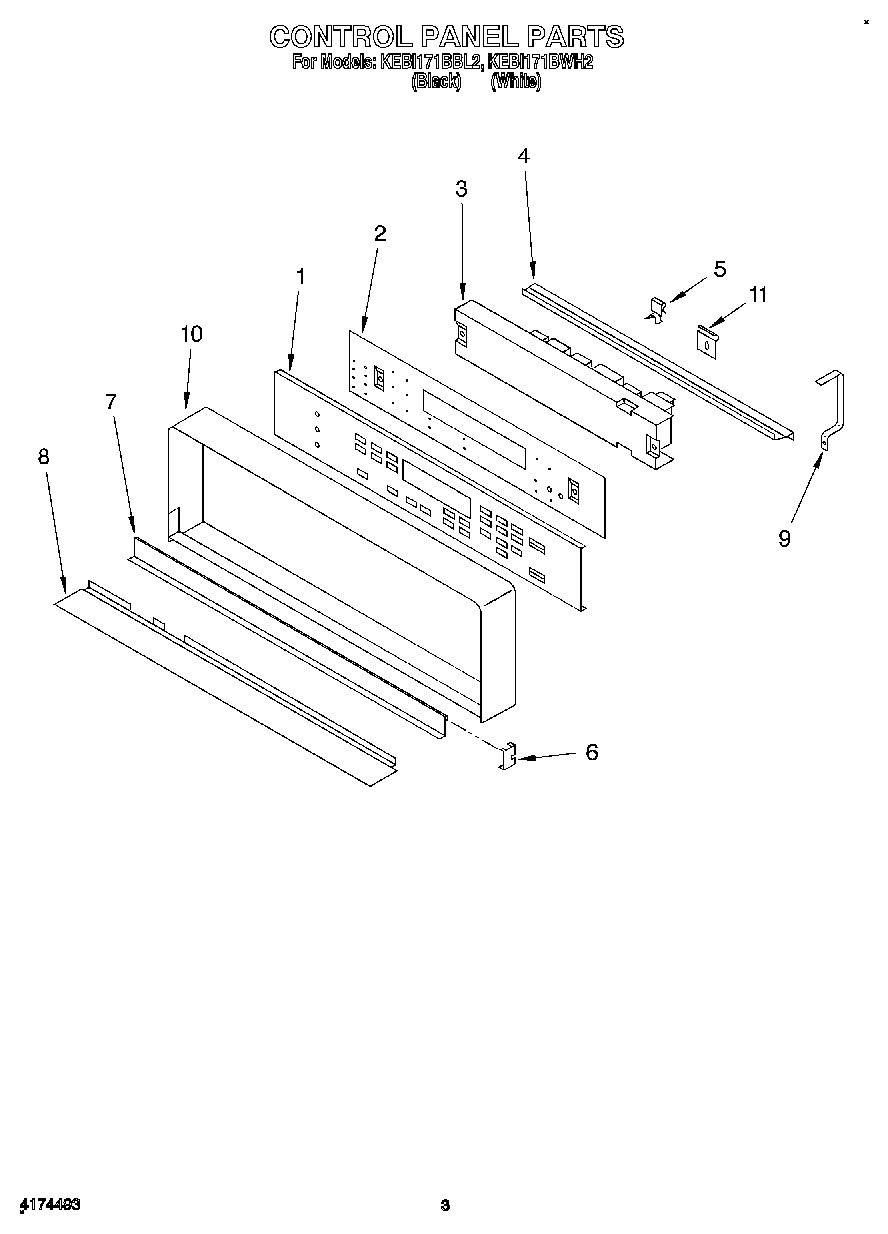

KEBI171BWH2 02 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1Membrane, Switch (Black Model)
1Membrane, Switch (White, Model)
2Bracket, Mounting Switch Membrane
3Screw (2)
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (White Model)
11Clip, Control Frame
11Screw
11Screw
