KEBI171BWH3 04 – LATCH AND VENT

KEBI171BWH3 04 – LATCH AND VENT

Written by

in

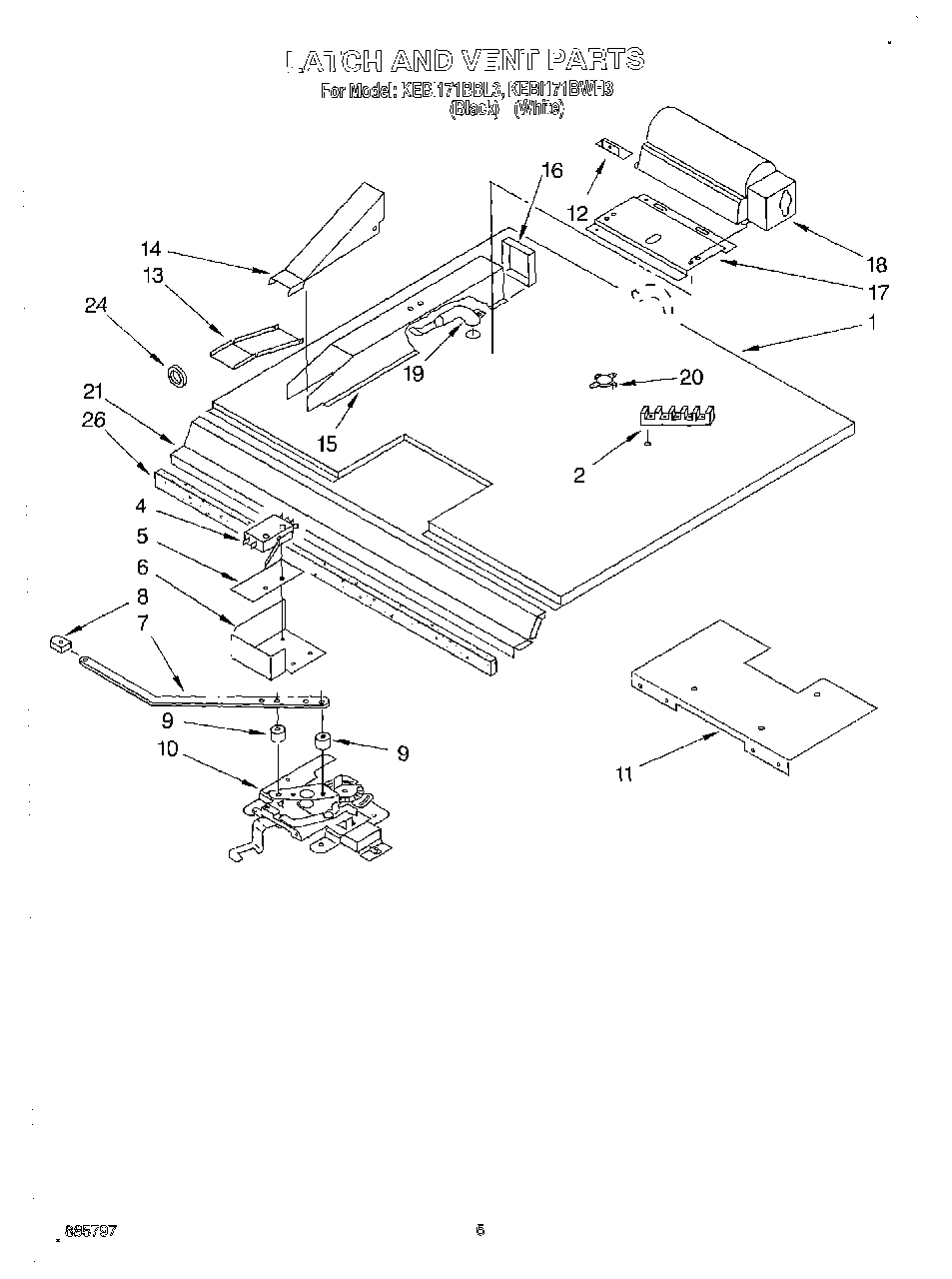

KEBI171BWH3 04 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Switch, Latch
4Screw
4Screw,
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Screw, 8-18 X 3/4 (4)
9Screw (2)
9Spacer, Latch Handle
10Latch, Mechanism
11Plate, Mounting
12Screw
12Baffle-Blower
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Screw
19Tube, Vent
20SPST Thermostat
20Screw
21Shield, Heat
21WP3177991 Whirlpool Screw
24Bushing
26Seal, foam
