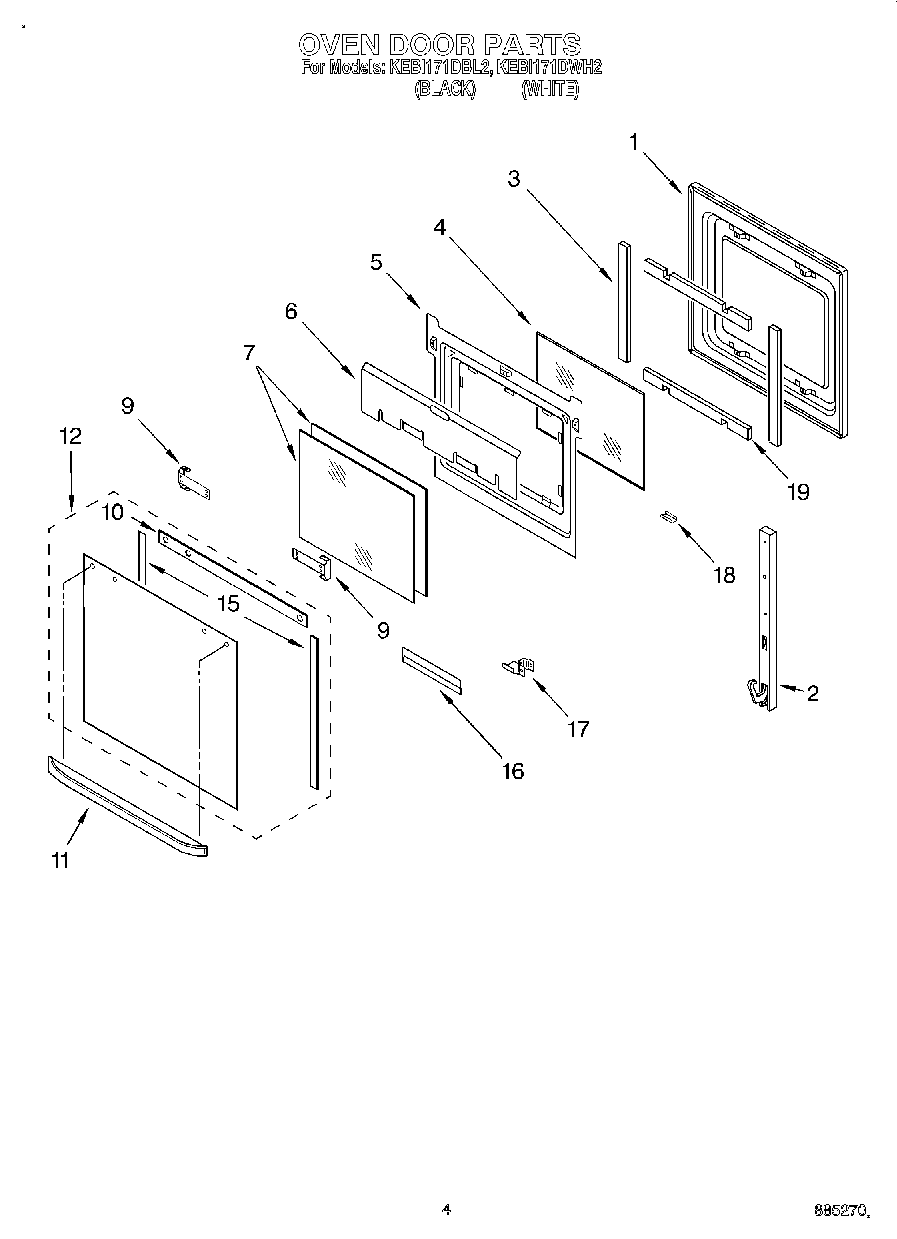

KEBI171DBL2 03 – OVEN DOORadmin2025-04-26T09:53:01+00:00KEBI171DBL2 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 2 | WP4449743 Whirlpool Screw |
| 2 | WP4455524 Whirlpool Door Hinge |
| 3 | W11688413 Whirlpool Insulation |
| 4 | WP4449253 Whirlpool Glass Window |
| 5 | Retainer, Glass |
| 6 | Shield, Heat |
| 7 | WP4449257 Whirlpool Door Glass |
| 9 | Screw |
| 9 | Bracket, Handle |
| 10 | Seal, Top |
| 11 | Handle (Black Model) |
| 11 | Handle (White Model) |
| 12 | Glass, Outer (White Model) |
| 12 | Glass, Outer (Black Model) |
| 15 | Seal, Sides |
| 16 | Retainer, Glass |
| 17 | Retainer, Glass |
| 17 | WP4449809 Whirlpool Screw |
| 18 | Clip, Retainer (Black Model) |
| 18 | Clip, Retainer (White Model) |
| 19 | Insulation Top and Bottom |
