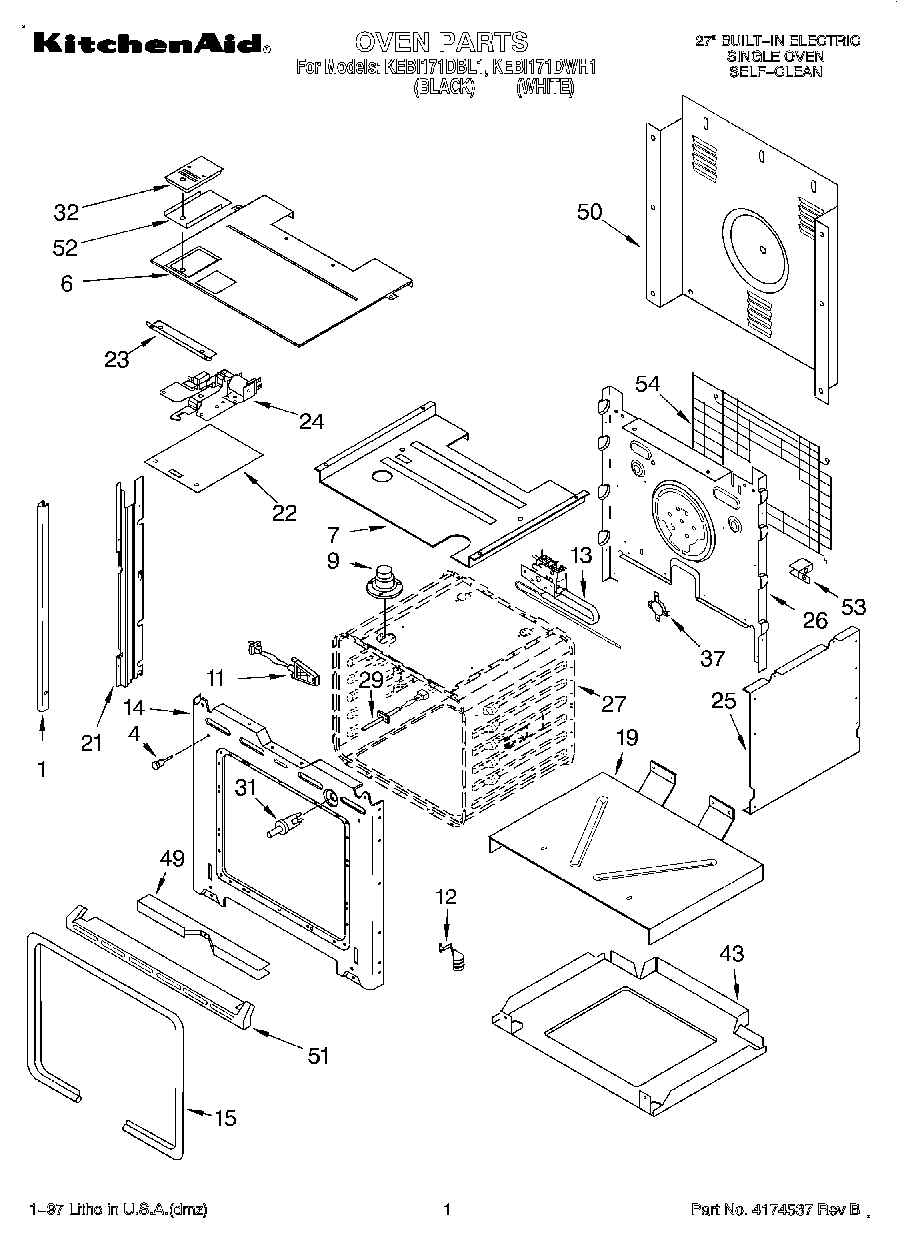

KEBI171DWH1 01 – OVEN

Products

Position	Product
1	Trim, Side (RH Black)
1	WP8281236 Whirlpool Screw
1	Trim, Side (White)
1	Trim, Side (White, Right)
1	Trim, Side (LH Black)
1	Trim, Side (LH White Screw)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	98005642 Whirlpool Clip
13	Safety Switch (Oven Temp)
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
22	Shield, Latch
22	Trim, Bottom (Screw)
23	Deflector, Latch
24	Latch, Assy
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
31	Switch, Door
32	Vent Box Assy
37	WP4450934 Whirlpool Thermostat Assembly
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	Cover, Back
51	Trim, Bottom (White Model)
51	Screw, (2)
51	Trim, Bottom (Black Model)
52	Vent Extension
52	WP4449154 Whirlpool Screw
53	WPL 4449845
54	Spacer, Harness
54	WP4449809 Whirlpool Screw
54	WPL 4450364
54	WPL 4449315
