KEBI171DWH2 01 – OVEN

KEBI171DWH2 01 – OVEN

Written by

in

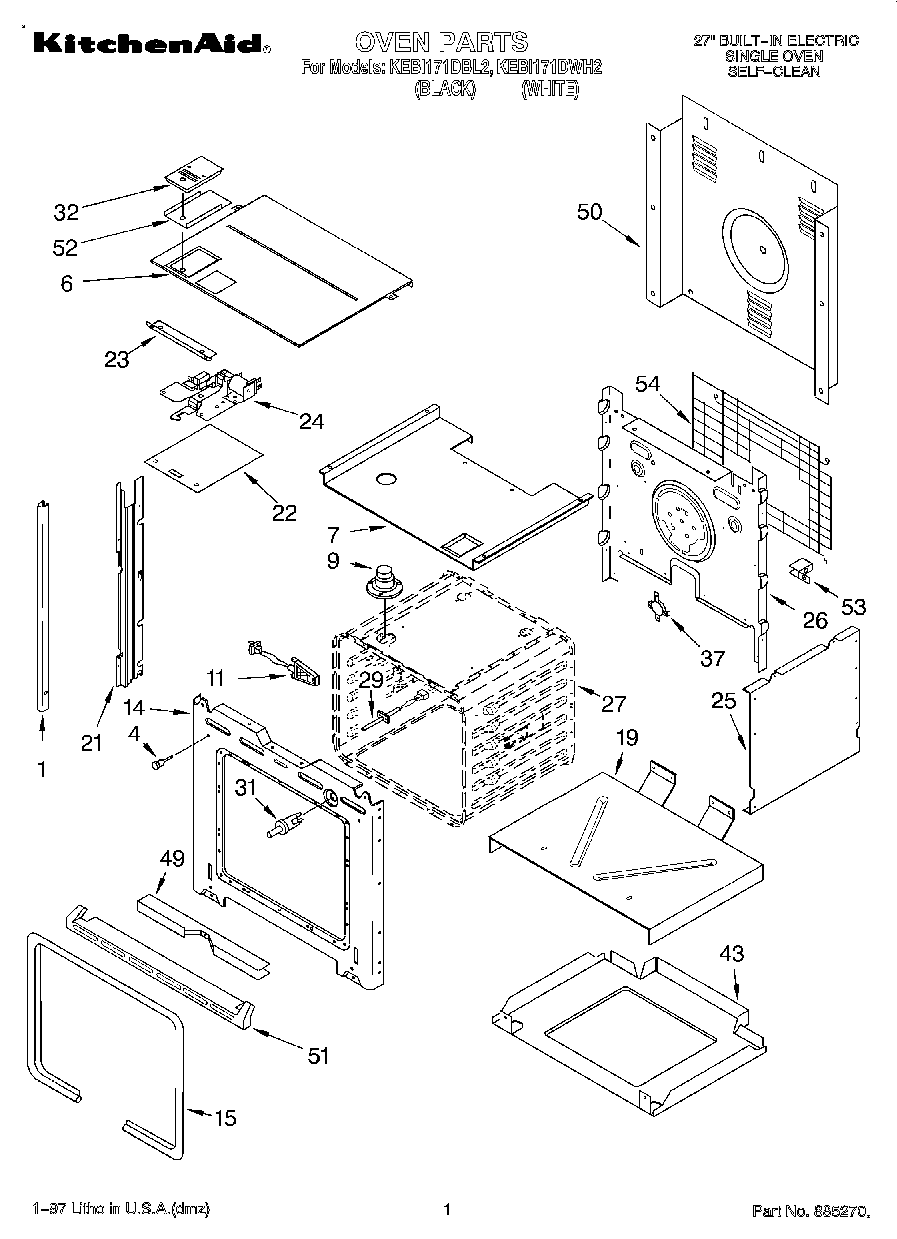

KEBI171DWH2 01 – OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (RH Black)
1Trim, Side (White, Right)
1Trim, Side (LH White Screw)
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Partition
9Tube, Vent
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Shield, Latch
23Deflector, Latch
24Latch Assy
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450934 Whirlpool Thermostat Assembly
43Base, Chassis
49WP4448933 Whirlpool Retainer
50Cover, Back
51Trim, Bottom (Black Model)
51Trim, Bottom (Screw)
51Trim, Bottom (White Model)
52WP4449154 Whirlpool Screw
52Vent Extension
53WPL 4449845
54WPL 4450364
54WP4449809 Whirlpool Screw
54WPL 4449315
54Spacer, Harness
