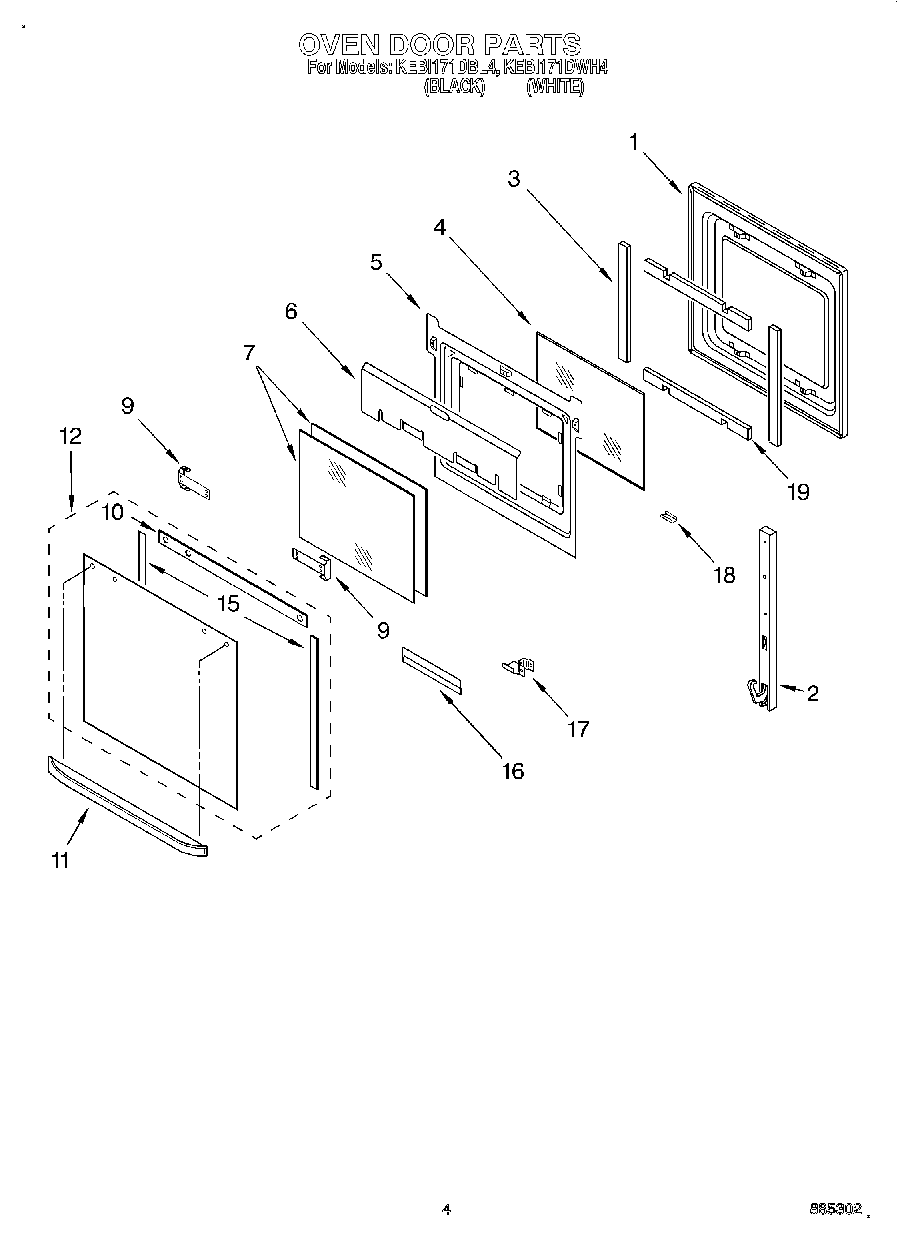

KEBI171DWH4 03 – OVEN DOOR

KEBI171DWH4 03 – OVEN DOOR

Written by

in

KEBI171DWH4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	W11688413 Whirlpool Insulation
4	WP4449253 Whirlpool Glass Window
5	Retainer, Glass
6	Shield, Heat
7	WP4449257 Whirlpool Door Glass
9	Screw
9	Bracket, Handle
10	Seal, Top
11	Handle (Black Model)
11	Handle (White Model)
12	Glass, Outer (White Model)
12	Glass, Outer (Black Model)
15	Seal, Sides
16	Retainer, Glass
17	Retainer, Glass
17	WP4449809 Whirlpool Screw
18	Clip, Retainer (Black Model)
18	Clip, Retainer (White Model)
19	Insulation Top and Bottom
