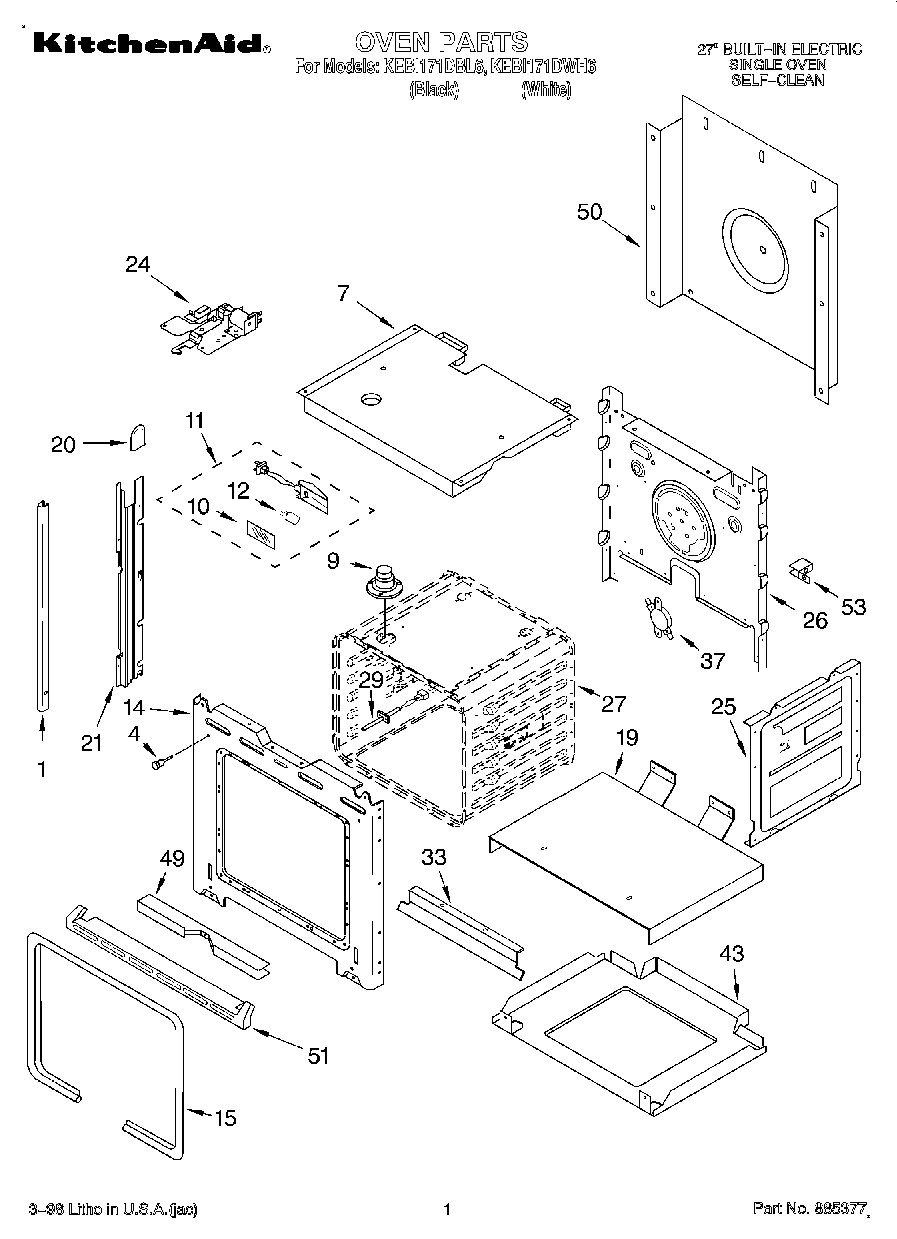

KEBI171DWH6 01 – OVEN

Products

Position	Product
1	Trim, Side (White)
1	Trim, Side (LH Black)
1	Trim, Side (White, Right)
1	Trim, Side (RH Black)
1	Trim, Side (LH White Screw)
1	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
24	Latch Assembly
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
33	Deflector, Vent
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
50	WP4449809 Whirlpool Screw
51	Trim, Bottom (White Model)
51	Screw, (2)
51	Trim, Bottom (Black Model)
53	WPL 4450364
53	WPL 4449845
53	WPL 4449315
