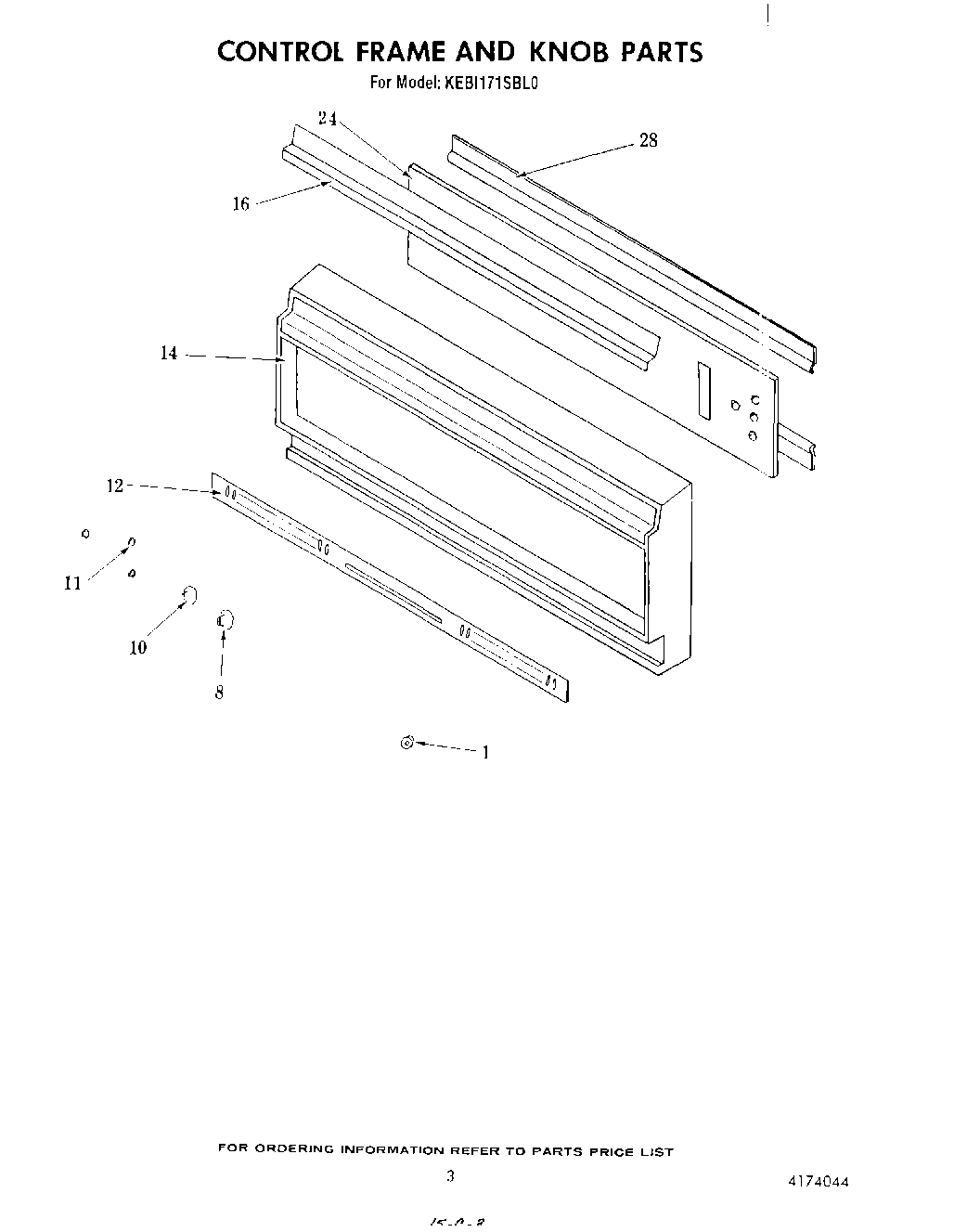

KEBI171SBL0 03 – CONTROL FRAME AND KNOB
Products
| Position | Product |
|---|---|
| 1 | Bezel, Oven Light Switch |
| 8 | WP4168403 Whirlpool Knob |
| 10 | Knob, Clock (2) |
| 11 | Knob, Clock |
| 12 | Vent Insert |
| 14 | Control Frame |
| 16 | Insert, Top (Black) |
| 24 | Control Panel Glass |
| 28 | Retainer |
KEBI171SBL0 03 – CONTROL FRAME AND KNOB
| Position | Product |
|---|---|
| 1 | Bezel, Oven Light Switch |
| 8 | WP4168403 Whirlpool Knob |
| 10 | Knob, Clock (2) |
| 11 | Knob, Clock |
| 12 | Vent Insert |
| 14 | Control Frame |
| 16 | Insert, Top (Black) |
| 24 | Control Panel Glass |
| 28 | Retainer |
