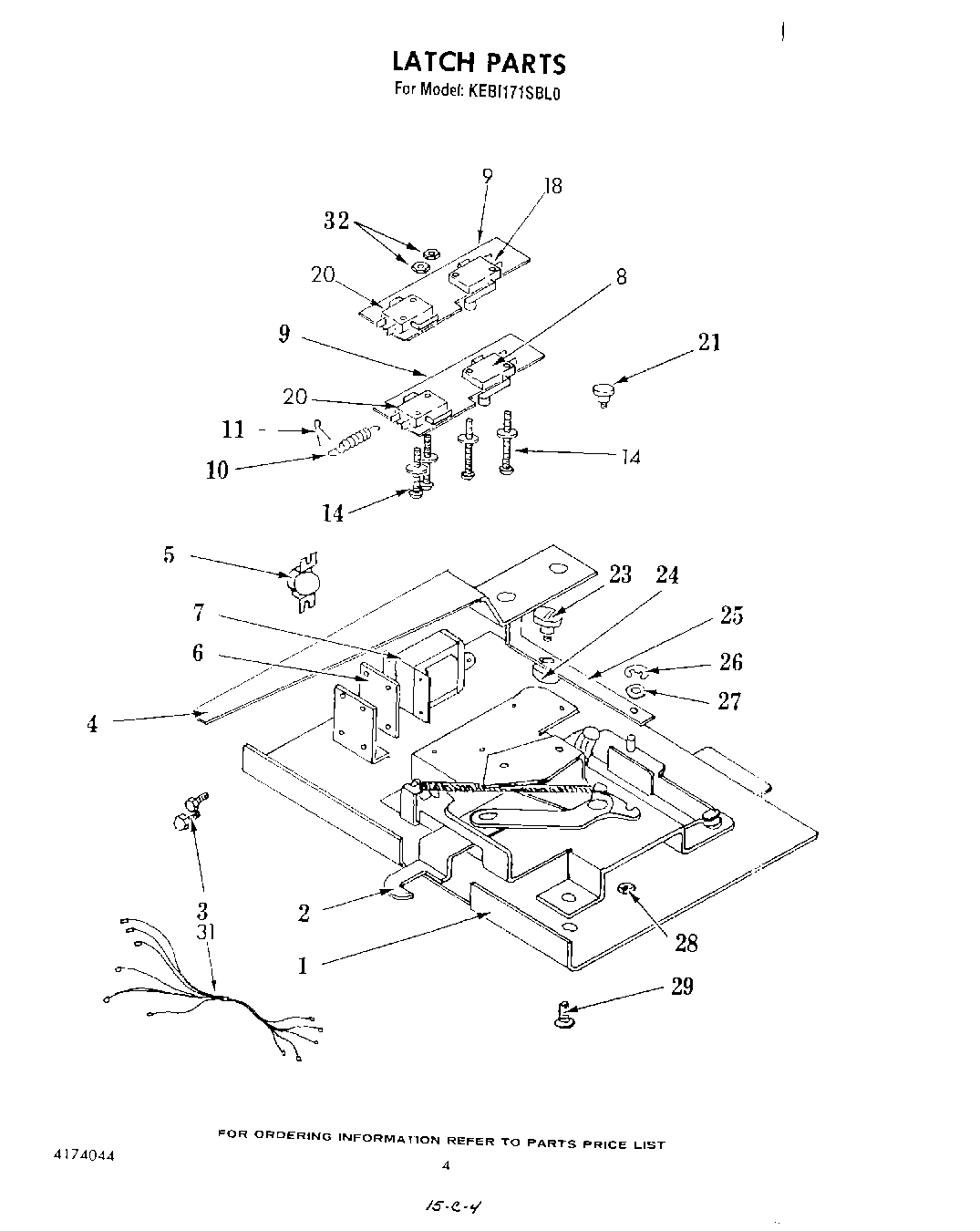

| 1 | Latch Mounting Plate |
| 2 | Mechanism, Latch |
| 3 | Screw, No.10-24 X 3/8`` Hex TCS |
| 4 | Latch Lever |
| 5 | Thermal Switch |
| 6 | Solenoid Spacer |
| 7 | Solenoid |
| 8 | Latch Switch With Roller |
| 9 | Insulator (2) |
| 10 | Solenoid Spring |
| 11 | Cotter Pin |
| 14 | Screw, No.4-40 X 1 1/4`` Hex |
| 18 | Latch Switch |
| 20 | Latch Switch (2) |
| 21 | Shoulder Screw Latch Lever Upper Oven |
| 23 | Shoulder Screw, Actuator Arm |
| 24 | Spacer, Actuator Arm |
| 25 | Actuator Arm |
| 26 | Retaining Ring |
| 27 | Washer, Flat |
| 28 | Nut, No.10-24 Hex Kep |
| 29 | Screw, No.10-24 X 3/8`` PTHMS |
| 31 | Wiring Harness, Latch Switch |
| 32 | Nut (2) |
