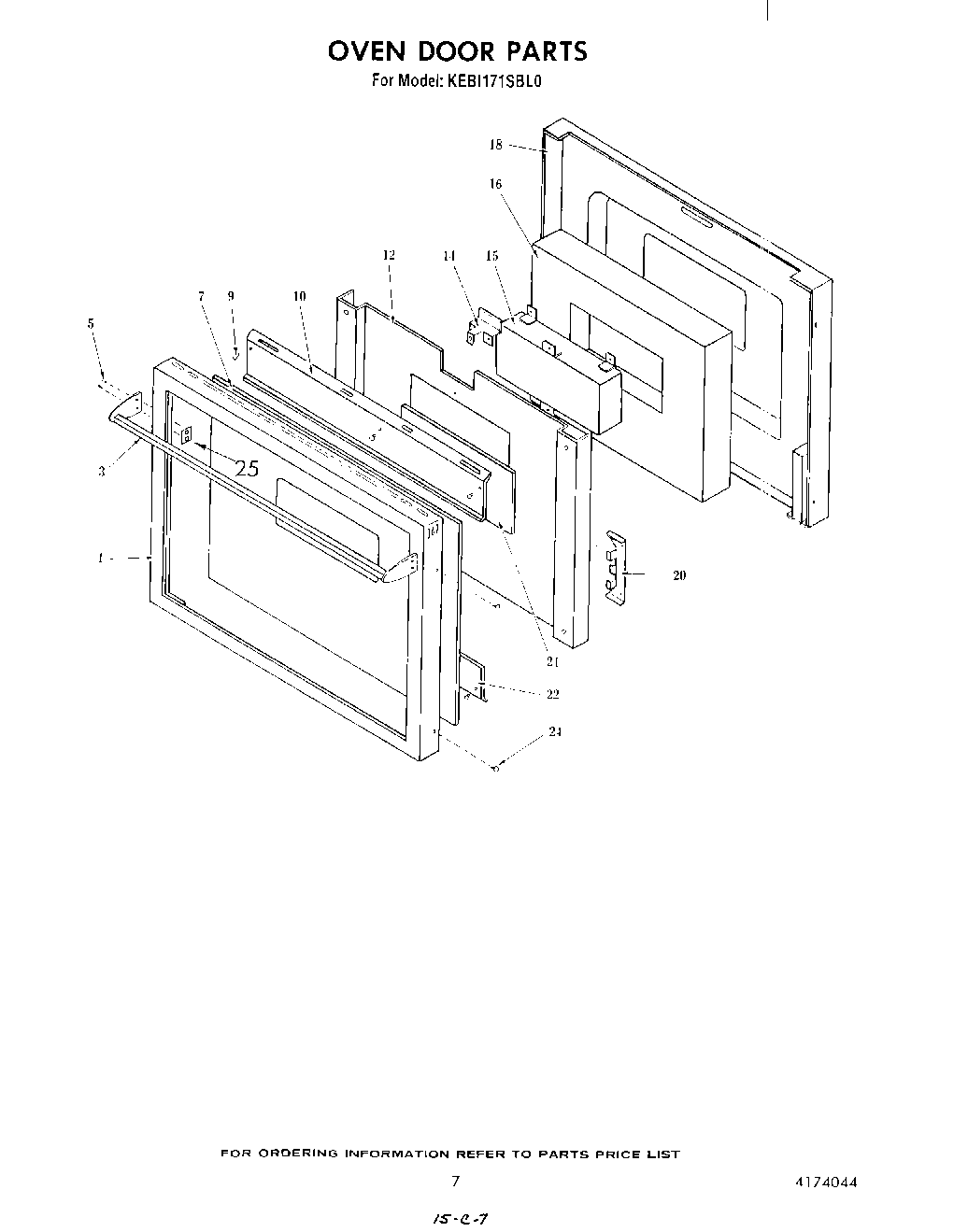

KEBI171SBL0 06 – OVEN DOOR , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Use and Care Guide
Installation Instructions
1Door Frame
3Door Handle
5Screw, 8-32 X 3/8“ PFHMS
7Door Glass
9Rubber Bumper
10Air Baffle
12Retainer, Insulation
14Bracket, Lock
15Window Pack
16Insulation
18Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
22Air Baffle, Bottom
24Vent, Lower Trim (Screw (2))
25Insert (4)
