KEBI171SBL0 07 – CABINET

KEBI171SBL0 07 – CABINET

Written by

in

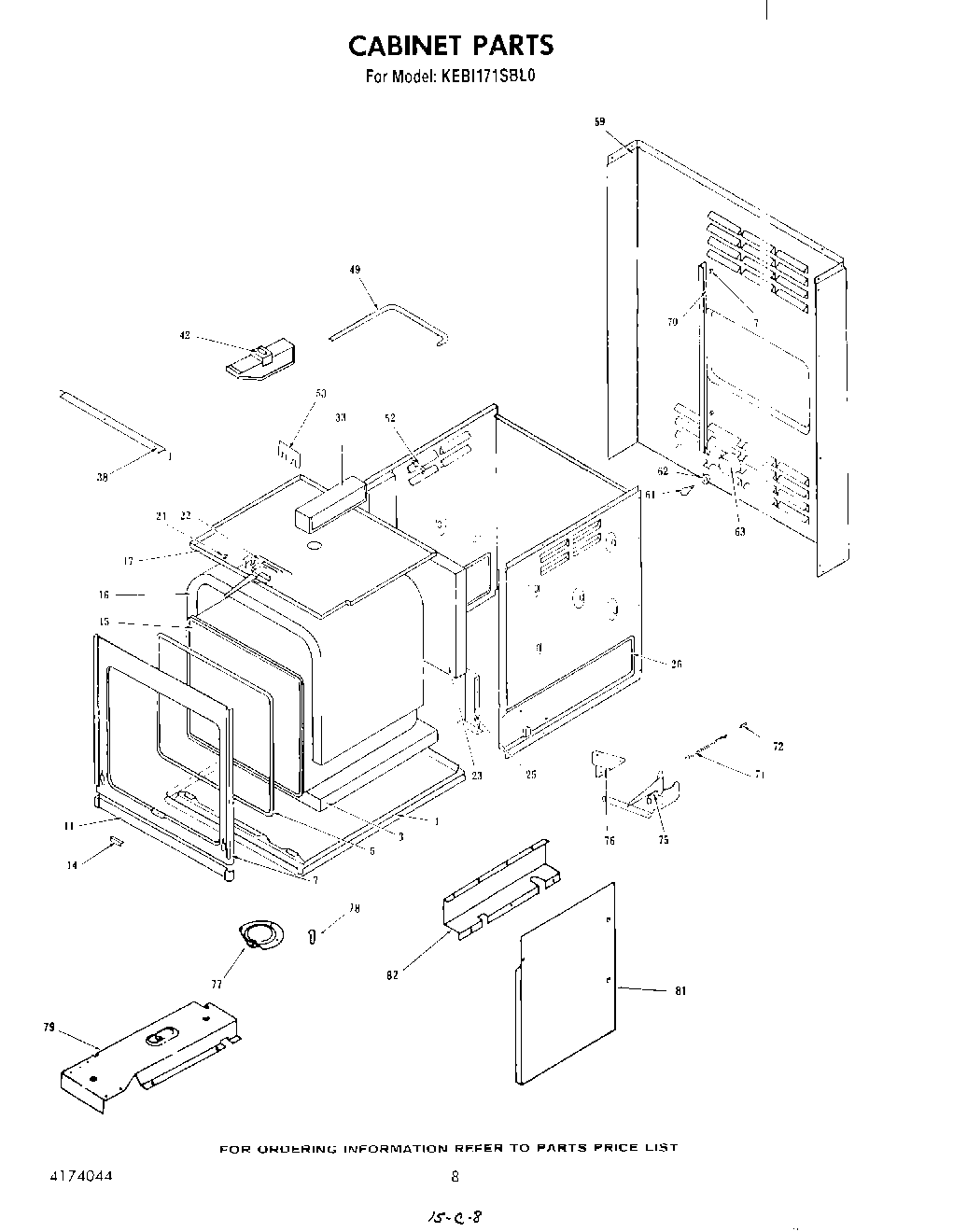

KEBI171SBL0 07 – CABINET

Products

PositionProduct
1Main Bottom
3Insulation, Bottom
5Door Gasket
7Front Frame
11Bottom Trim
14Cover, Seal End
15Oven Liners (See Page 6 For Further Breakdown)
16Insulation, Top and Sides
17Compartment Top
21Knob, Latch Lever
22Latch Assembly (See Latch Parts On Pages 4 & 5 For Further Breakdown)
23Insulation, Rear
25Rear Anchor
26Cabinet Side
33Collector Box
38Control Frame Support
42Vent Box
49Vent Tube (Upper Oven)
52Clamp, Conduit
53Vent Tube Mounting Bracket
59Cabinet Back
61RANGE ONLY 40W 120V APPL BULB
62Socket, Lamp
63Light Shield
70Cabinet Support (Left)
70Cabinet Support (Right)
71Spacer
72Spring, Anchor
74Door Spring (Self Cleaning Oven)
75Hinge Assembly
76Cam Plate (Right)
76Cam Plate (Left Left)
77Probe Cover
78Vent, Lower Trim (Screw (2))
79Air Duct (Upper Oven) (Right)
79Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
81WPL 4173017
81WPL 4173016
82Air Baffle Channel
