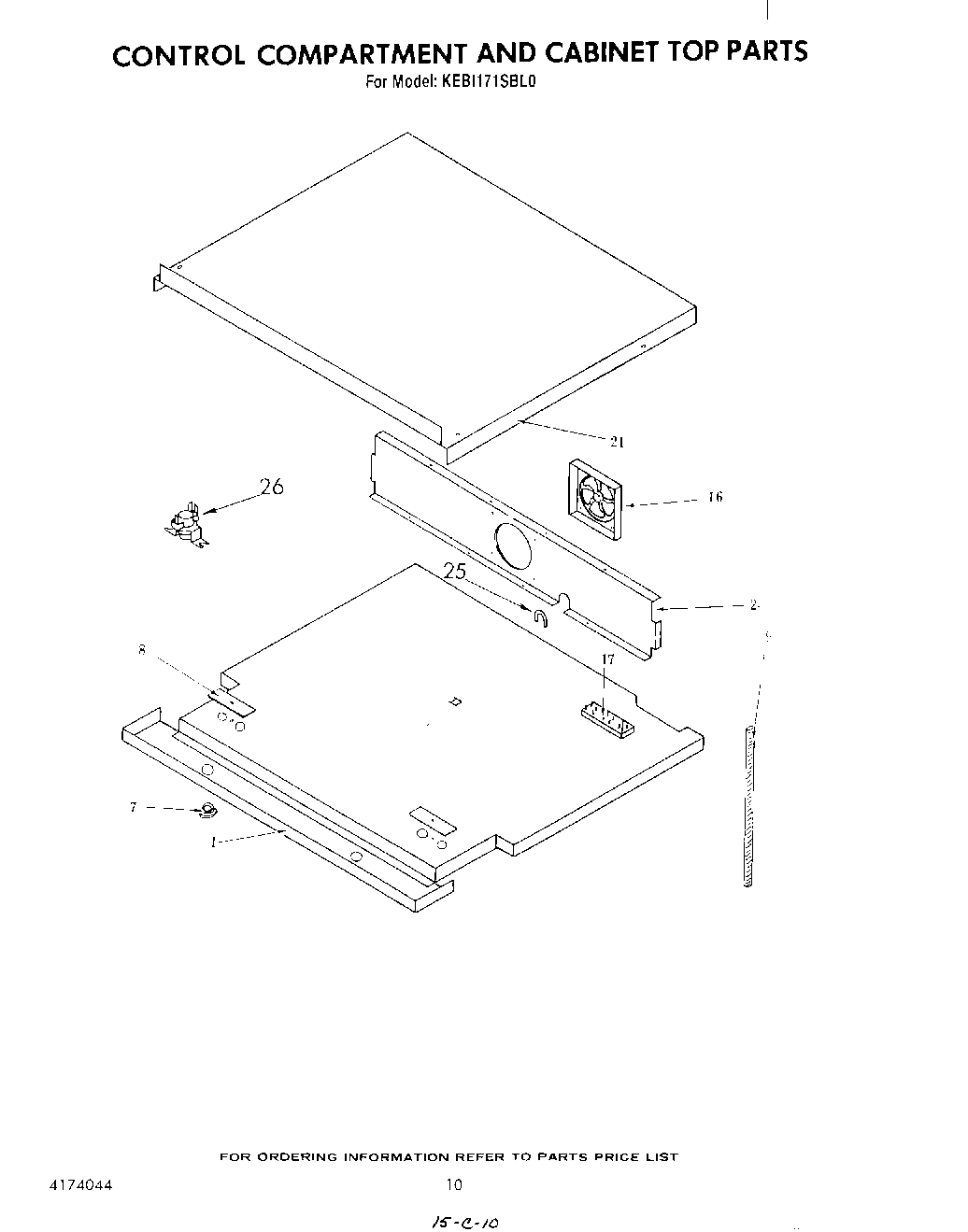

KEBI171SBL0 08 – CONTROL COMPARTMENT AND CABINET TOP
Written by
in
KEBI171SBL0 08 – CONTROL COMPARTMENT AND CABINET TOP
Products
| Position | Product |
|---|---|
| 1 | Sandwich Panel |
| 7 | Bushing |
| 8 | Hole Cover |
| 16 | Blower |
| 17 | Terminal Block, Power Supply |
| 19 | Conduit, 1/2“ X 56“ |
| 21 | Cabinet Top |
| 24 | Blower Mounting Panel |
| 25 | Bushing, Flexible |
| 26 | Switch, Fan |
