KEBI171SBL1 02 – CONTROL PANEL

KEBI171SBL1 02 – CONTROL PANEL

Written by

in

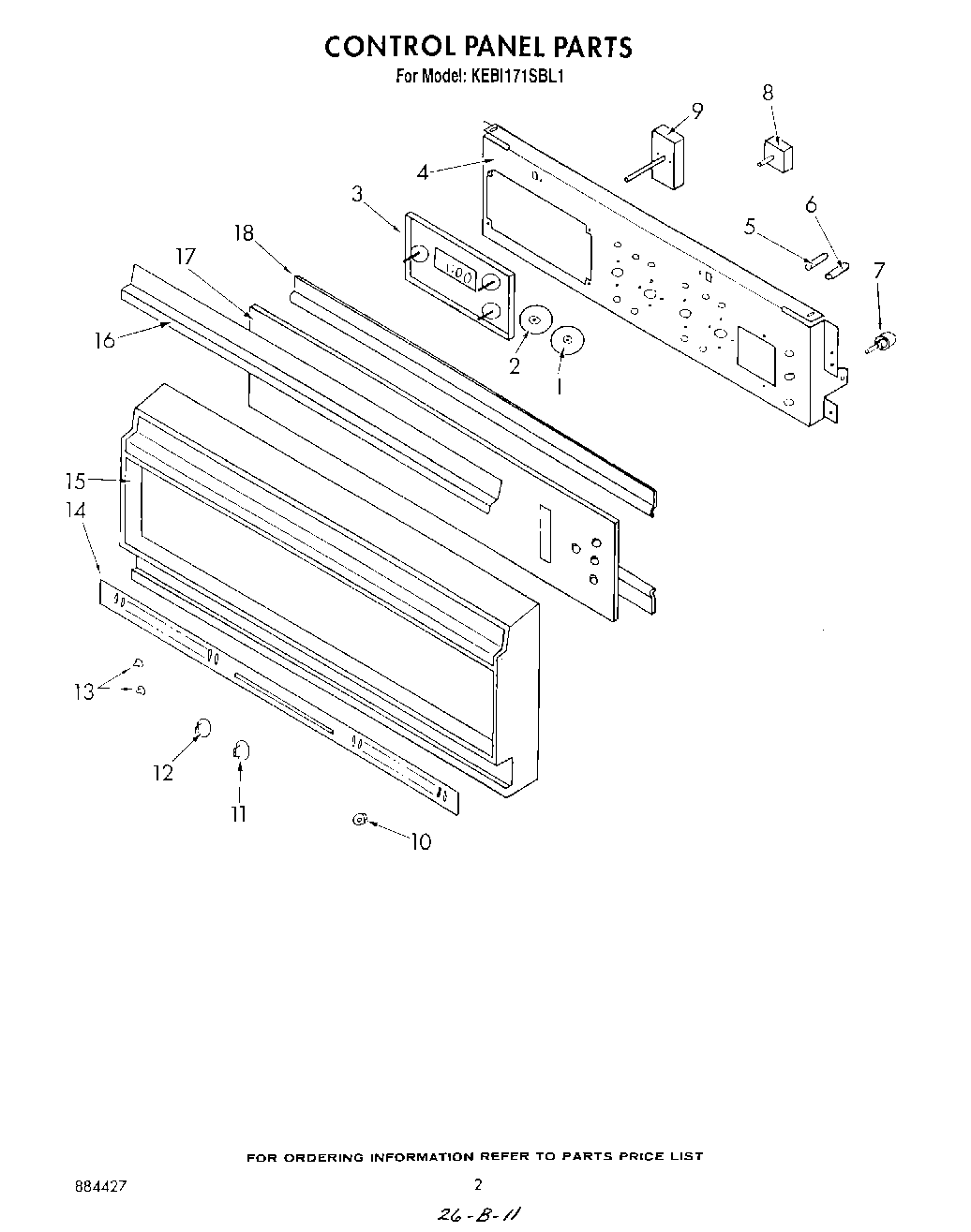

KEBI171SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Thermostat Disc Lower Oven
2Selector Disc
3Clock
4Control Mounting Panel
5Indicator Light,
6Indicator Light (2)
7Oven Light Switch
8Selector Switch
9Thermostat, Upper Oven
10Bezel, Oven Light Switch
11WP4168403 Whirlpool Knob
12Knob, Clock (2)
13Knob, Clock
14Vent Insert
15Control Frame
16Insert, Top (Black)
17Control Panel Glass
18Retainer
