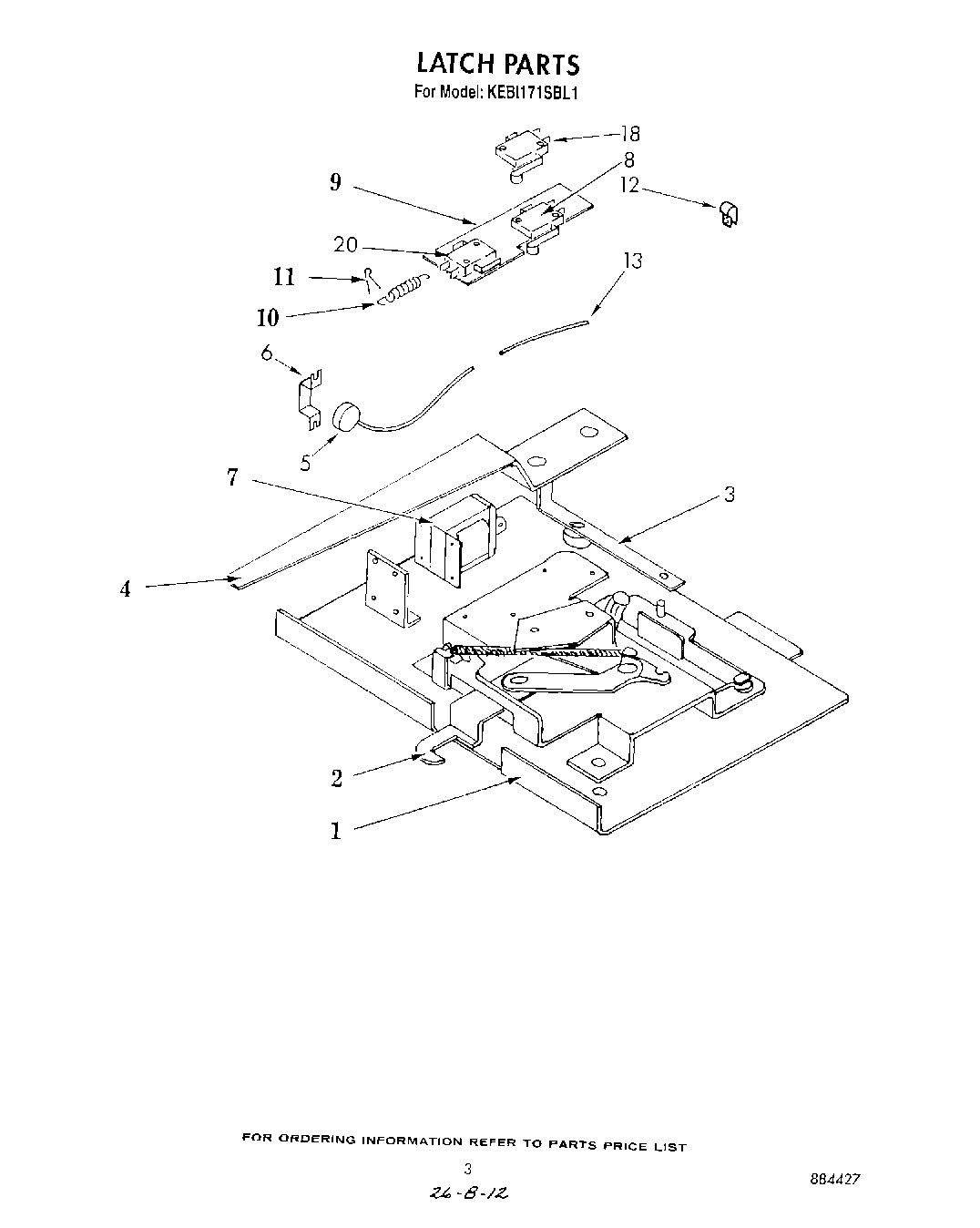

KEBI171SBL1 03 – LATCH

Products

Position	Product
1	Plate, Latch
1	Screw, No.10-24 X 3/8“ PTHMS
1	Nut, No.10-24 Hex Kep
2	Mechanism, Latch
2	Screw, No.10-24 X 3/8“ Hex TCS
3	Washer, Flat
3	Actuator Arm
3	Spacer, Actuator Arm
3	Shoulder Screw, Actuator Arm
4	lever, latch
5	Thermal Switch
6	Screw
7	Screw (2)
7	Solenoid
8	Latch Switch With Roller
9	Insulator (2)
10	Solenoid Spring
11	Cotter Pin
12	Bracket, Harness
13	Sleeve, Bulb
18	Nut (2)
18	Latch Switch
18	Screw, No.4-40 X 1 1/4“ Hex
20	Latch Switch (2)
20	Harness, Wiring (Latch Switch)
