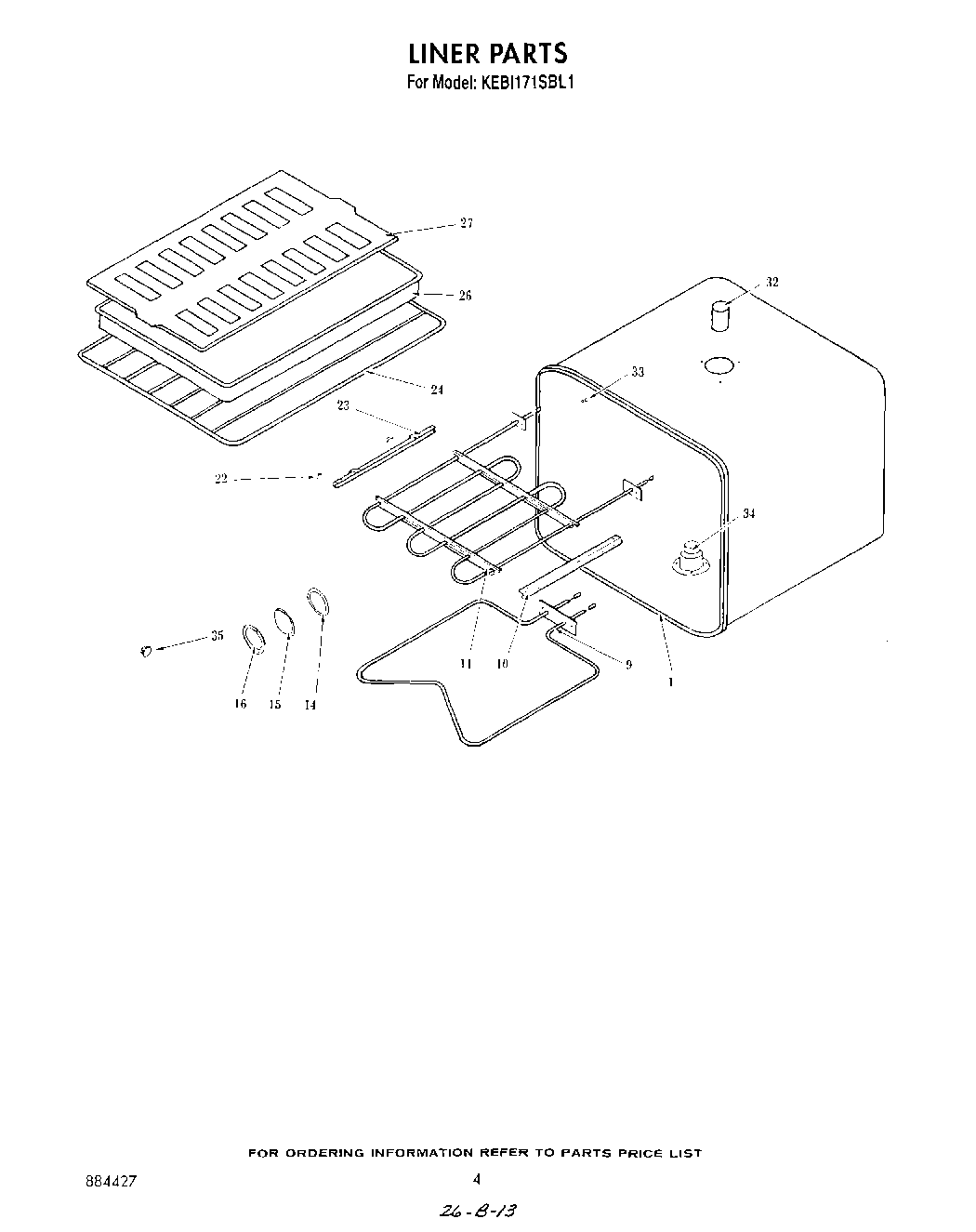

| 1 | Liner, Oven |
| 9 | WP3177420 Whirlpool Bake Element |
| 10 | Broiler Element Support-Right |
| 11 | Element, Broil |
| 14 | Light Lens Gasket |
| 15 | Light Lens |
| 16 | Light Lens Retainer |
| 22 | Clip, Thermostat Bulb |
| 23 | Broiler Element Support-Left |
| 24 | Oven Rack |
| 26 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 32 | Vent Tube Extension |
| 33 | Cover, Cap Tube |
| 34 | Smoke Eliminator (Upper Oven) |
| 35 | Plug Button (3/8`` Hole) |
| 35 | Plug Button (5/8`` Hole) |
| 35 | Plug Button (3/4`` Hole) |
