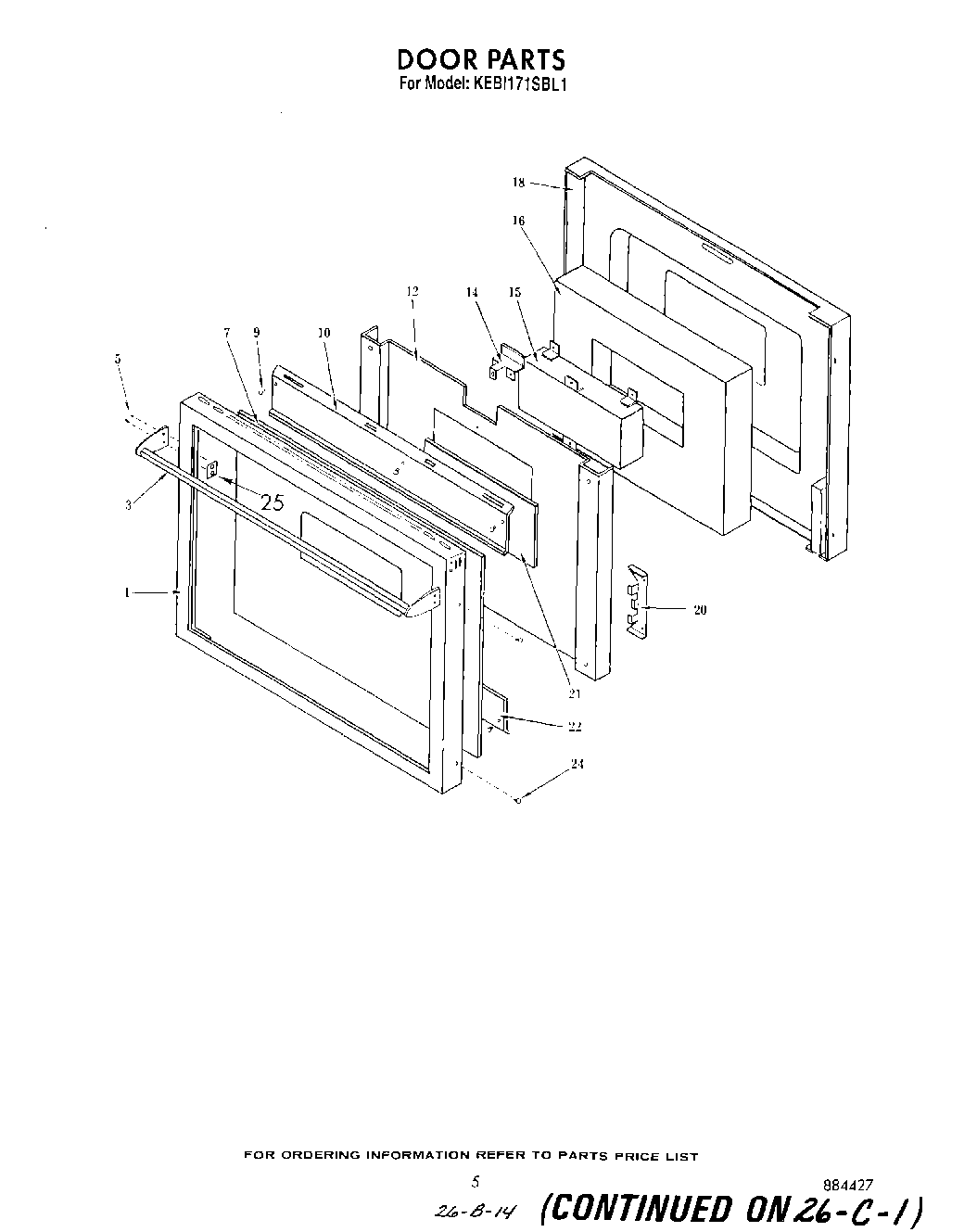

KEBI171SBL1 05 – DOOR

KEBI171SBL1 05 – DOOR

Written by

in

KEBI171SBL1 05 – DOOR

Products

Position	Product
1	Door Frame
3	Door Handle
5	Screw, 8-32 X 3/8“ PFHMS
7	Door Glass
9	Rubber Bumper
10	Air Baffle
12	Retainer, Insulation
14	Bracket, Lock
15	Window Pack
16	Insulation
18	Door Liner
20	Bracket, Glass Mtg.
21	Glass, Reflective
22	Air Baffle, Bottom
24	Vent, Lower Trim (Screw (2))
25	Insert (4)
