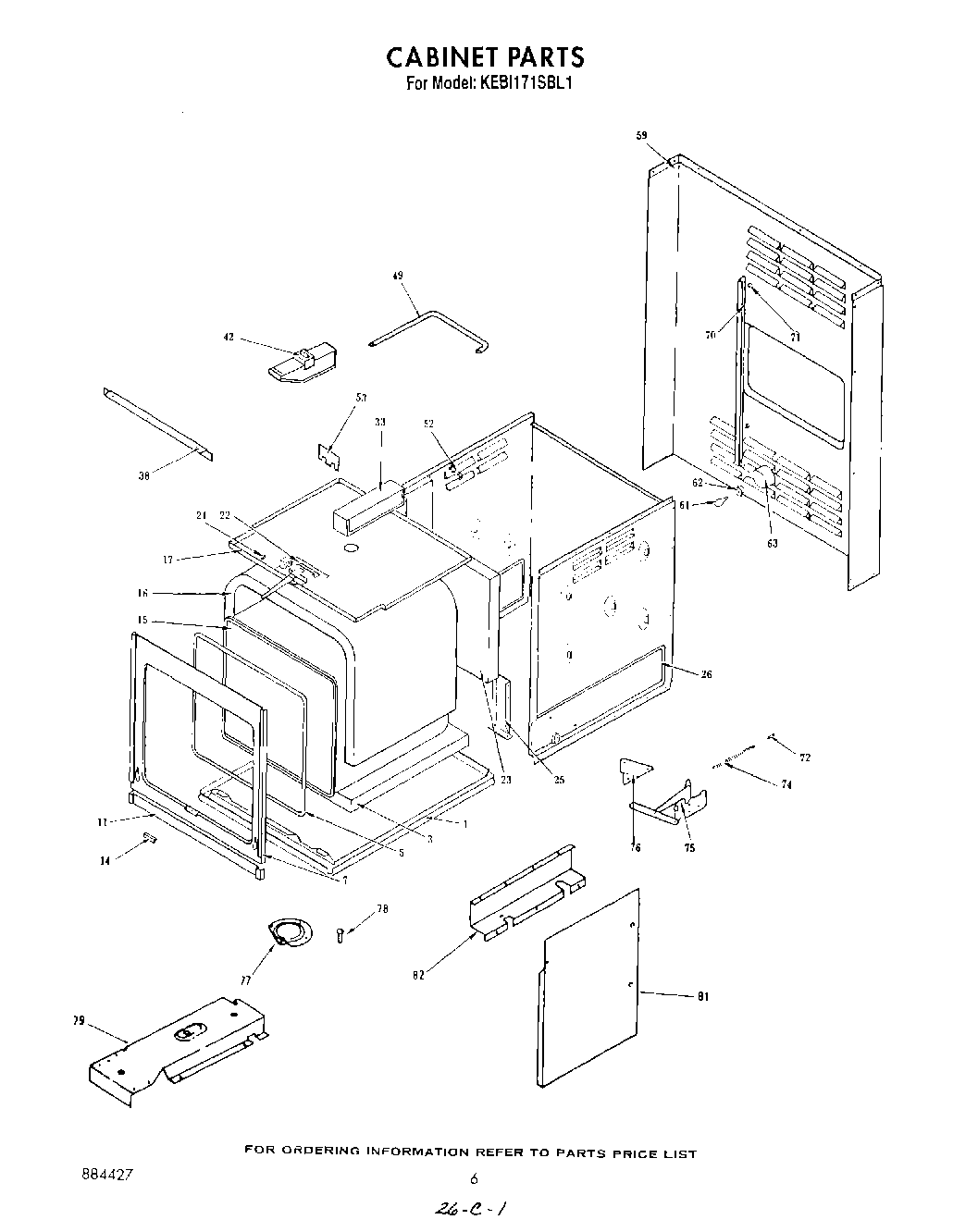

KEBI171SBL1 06 – CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT884427
	Installation Instructions
	Use and Care Guide
1	Main Bottom
3	Insulation, Bottom
5	Door Gasket
7	Front Frame
11	Bottom Trim
14	Cover, Seal End
15	Oven Liners (See Page 6 For Further Breakdown)
16	Insulation, Top and Sides
17	Compartment Top
21	Knob, Latch Lever
22	Latch Assembly (See Latch Parts On Pages 4 & 5 For Further Breakdown)
23	Insulation, Rear
25	Rear Anchor
26	Cabinet Side
33	Collector Box
38	Control Frame Support
42	Vent Box
49	Vent Tube (Upper Oven)
52	Clamp, Conduit
53	Vent Tube Mounting Bracket
59	Cabinet Back
61	RANGE ONLY 40W 120V APPL BULB
62	Socket, Lamp
63	Light Shield
70	Cabinet Support (Right)
70	Cabinet Support (Left)
71	Spacer
72	Spring, Anchor
74	Door Spring (Self Cleaning Oven)
75	Hinge Assembly
76	Cam Plate (Right)
76	Cam Plate (Left Left)
77	Probe Cover
78	Vent, Lower Trim (Screw (2))
79	Air Duct (Upper Oven) (Right)
79	Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
81	WPL 4173016
81	WPL 4173017
82	Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gray)
82	Air Baffle Channel
82	Toast
82	261900 Whirlpool Microwave Spray
82	WPL 282831
82	Wire (14 Ga. 150 c Green)
82	WP75614 Whirlpool Connector
82	Black Acrylic Static Cleaner
82	WPL 242860
82	350930 Whirlpool White Spray Paint
82	Enamal, Toast (1 Qt. Uncut)
82	Platinum (Uncut)
82	WPL 72112
82	350942 Whirlpool Spray Paint
82	WPL 799832
82	WPW10208653 Whirlpool Insulation
82	Wire, 25` Roll (Blue 16 Ga.)
82	Wire, 25` Roll (Black 14 Ga.)
82	Paint, Spray (13 Oz.) (Platinum)
82	Golden Harvest (Uncut)
82	Golden Harvest
82	350956 Whirlpool Spray Assembly
82	72017 Whirlpool Appliance Touch-Up Paint White
82	799344 Whirlpool Refrigerator Paint
82	WP72107 Whirlpool Touchup
82	Leveler (Thinner)
82	Almond (Uncut)
82	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
82	72113 Whirlpool Touch-Up Paint
82	Wire, 25` Roll (Red 14 Ga.)
82	Wire, 25“ Roll (White 14 GA.)
82	1
82	WPL 350806
82	WPL 591014
82	WPL 832985
82	Rotisserie Kit
82	8212471 Whirlpool Oven Paint
82	WPL 786020
82	WPL 786032
82	Wire (14 Ga. 200 c Brown)
82	18 Ga. 80~c Rating (Red)
82	Wire (12 Ga. 150 c Black)
82	285006 Whirlpool Spray
82	72032 Whirlpool Touch Up Paint Black
82	WP482338 Whirlpool Refrigerator Adhesive
82	WP261869 Whirlpool Microwave Paint
82	Wire (14 Ga. 150 c Blue)
82	Wire (14 Ga. 150 c Brown)
82	Wire (14 Ga. 150 c Orange)
82	Wire (14 Ga. 150 c Yellow)
82	Grease
