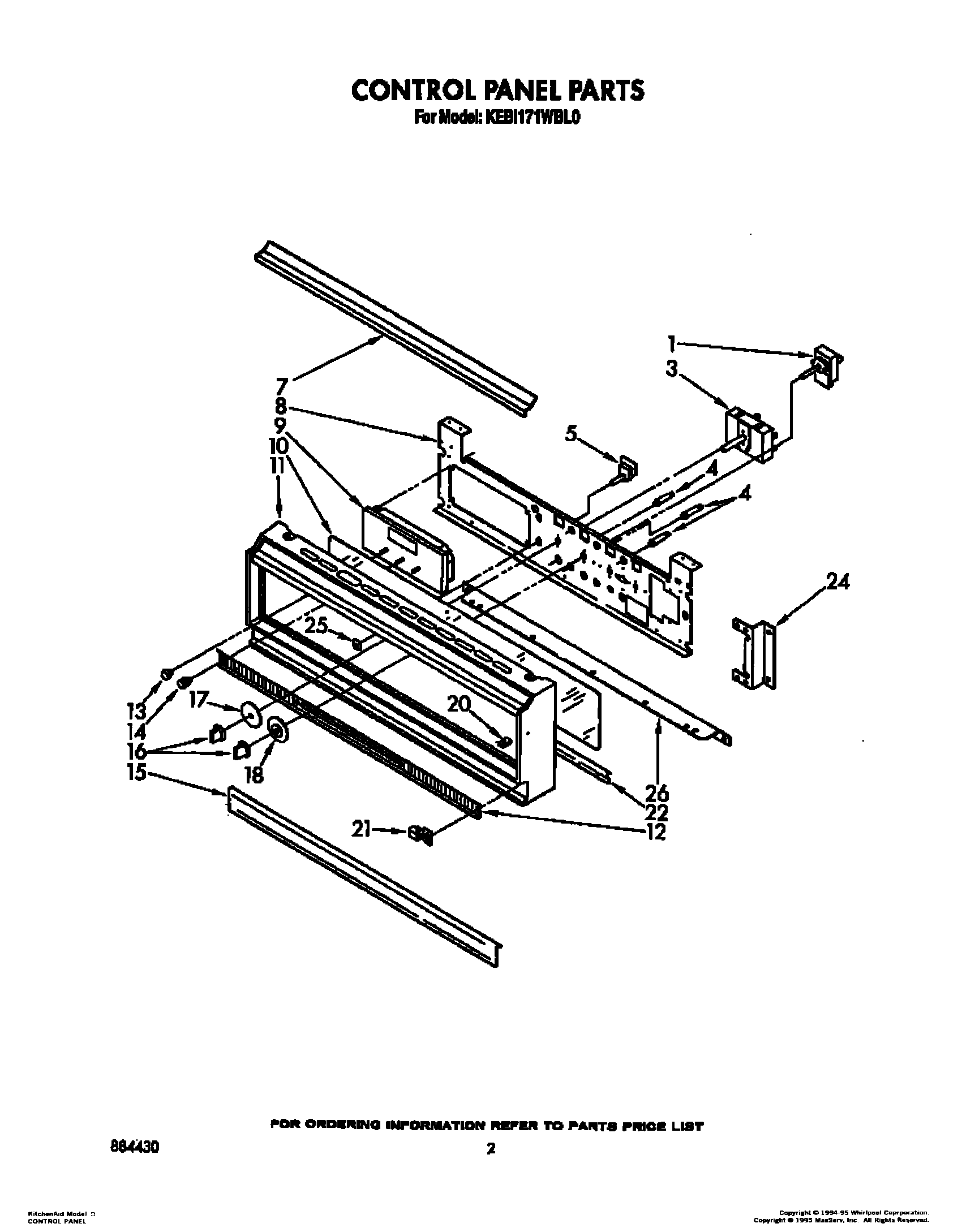

KEBI171WBL0 02 – CONTROL PANEL, OPTIONAL

Products

Position	Product
	Repair Parts List
	Guide, Use & Care
	WPL LIT3178195
	WPL LIT3178202
1	Thermostat, upper
3	Switch, Selector
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Nut, Timer (4)
5	Switch, Oven Light
7	Insert, Top (Black)
8	Bracket, Control
9	Nut, Timer (4)
9	Clock
10	Glass, Control Panel (Black)
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Clock
14	Knob, Clock (2)
15	nut (3)
15	Handle (Black)
15	Screw (5)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Screw (6)
22	Retainer
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
