KEBI171WBL1 05 – OVEN DOOR

KEBI171WBL1 05 – OVEN DOOR

Written by

in

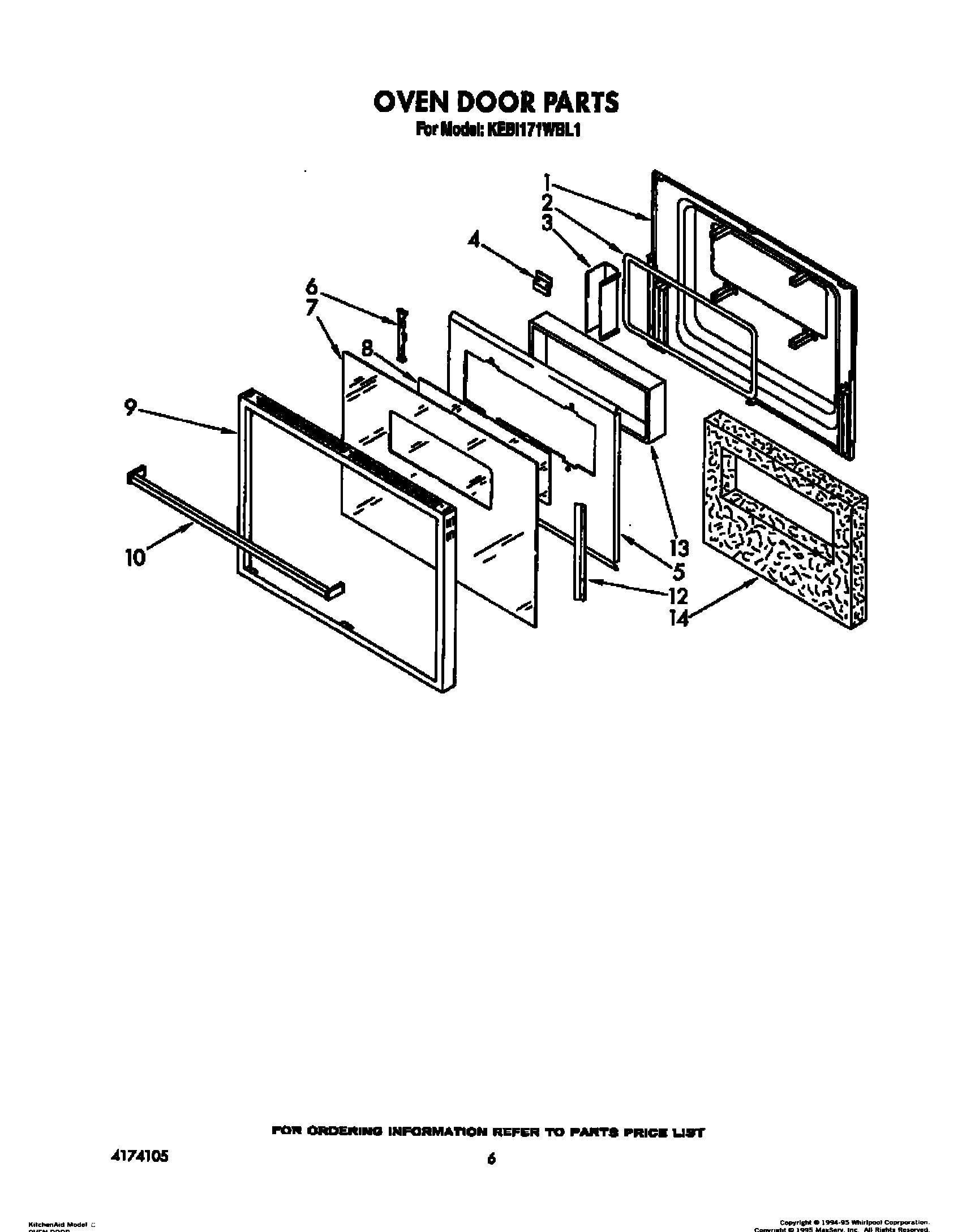

KEBI171WBL1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Bracket, Glass Mtg.
6	WP90767 Whirlpool Screw
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Handle, Door
10	Handle, Door (Screw)
12	Screw (6)
12	Retainer, Glass
13	Window Package
14	Screw, Black (2)
14	Insulation, Door
14	Vent, Lower Trim (Screw (2))
