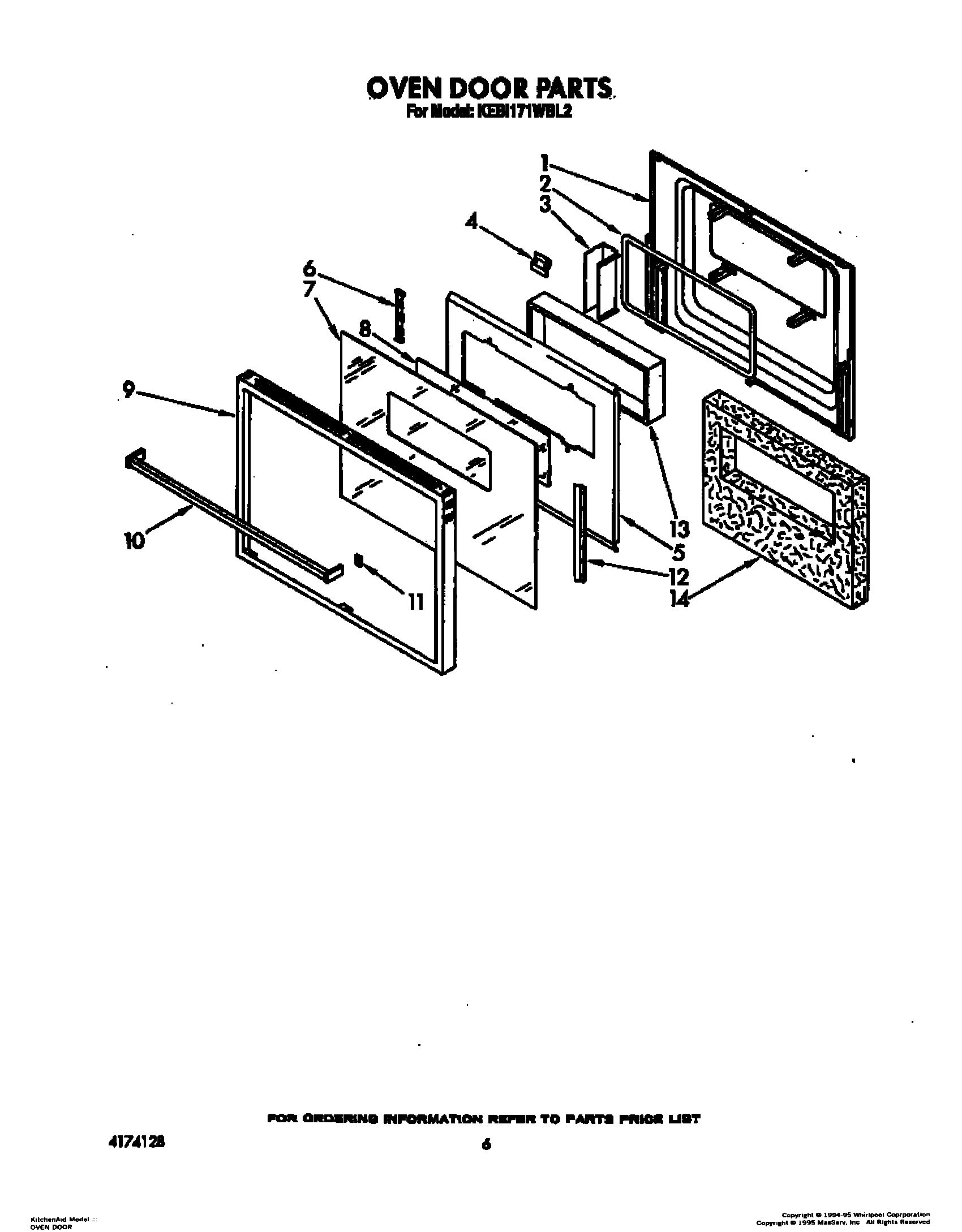

KEBI171WBL2 04 – OVEN DOOR

KEBI171WBL2 04 – OVEN DOOR

Written by

in

KEBI171WBL2 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
4	Latch, Strike
5	Insulation, Retainer
6	Bracket, Glass Mtg.
6	WP90767 Whirlpool Screw
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Screw)
10	Handle, Door
11	Spacer, Window
12	Screw (6)
12	Retainer, Glass
13	Window Package
14	Screw, Black (2)
14	Insulation, Door
14	Vent, Lower Trim (Screw (2))
