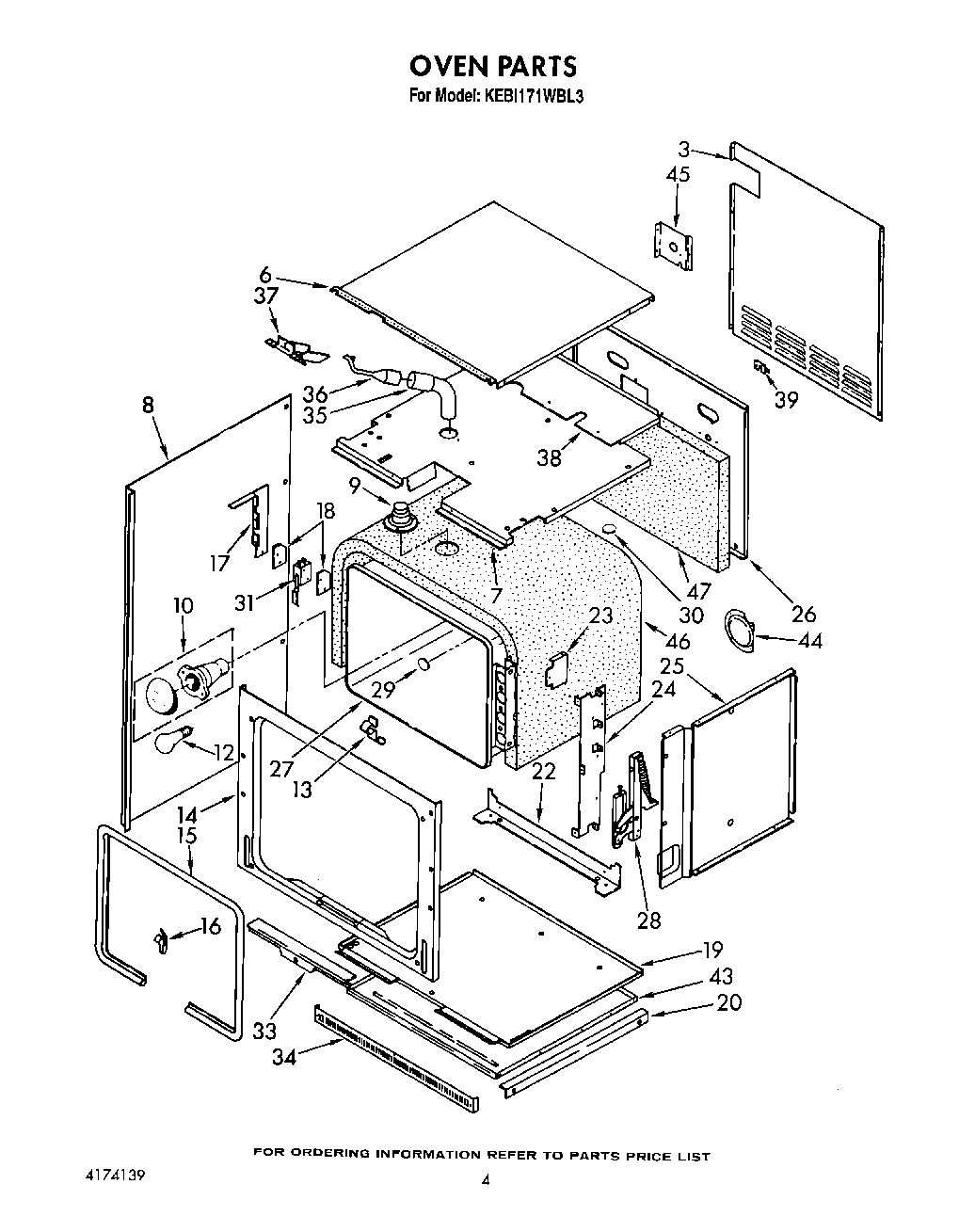

KEBI171WBL3 03 – OVEN, OPTIONAL

KEBI171WBL3 03 – OVEN, OPTIONAL

Written by

in

KEBI171WBL3 03 – OVEN, OPTIONAL

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
39	Screw
39	Cover, Cap Tube
39	WP3177991 Whirlpool Screw
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	WPL 832985
47	WPL 591014
47	WPL 350806
47	242831 Whirlpool Oven Wire
47	1
47	Wire (14 Ga. 200 c Brown)
47	18 Ga. 80~c Rating (Red)
47	Wire (12 Ga. 150 c Black)
47	Wire (14 Ga. 150 c Yellow)
47	Wire (14 Ga. 150 c Orange)
47	Wire (14 Ga. 150 c Green)
47	Wire (14 Ga. 150 c Brown)
47	WP261869 Whirlpool Microwave Paint
47	Wire (14 Ga. 150 c Blue)
47	Insulation, Back
47	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47	Toast
47	Golden Harvest (Uncut)
47	Golden Harvest
47	72113 Whirlpool Touch-Up Paint
47	Almond (Uncut)
47	Leveler (Thinner)
47	WP72107 Whirlpool Touchup
47	799344 Whirlpool Refrigerator Paint
47	72017 Whirlpool Appliance Touch-Up Paint White
47	350956 Whirlpool Spray Assembly
47	Paint, Spray (13 Oz.) (Platinum)
47	Enamal, Toast (1 Qt. Uncut)
47	WP482338 Whirlpool Refrigerator Adhesive
47	72032 Whirlpool Touch Up Paint Black
47	285006 Whirlpool Spray
47	Wire, 25“ Roll (White 14 GA.)
47	Wire, 25` Roll (Red 14 Ga.)
47	Wire, 25` Roll (Black 14 Ga.)
47	WPL 799832
47	350942 Whirlpool Spray Paint
47	WPL 72112
47	Platinum (Uncut)
47	350930 Whirlpool White Spray Paint
