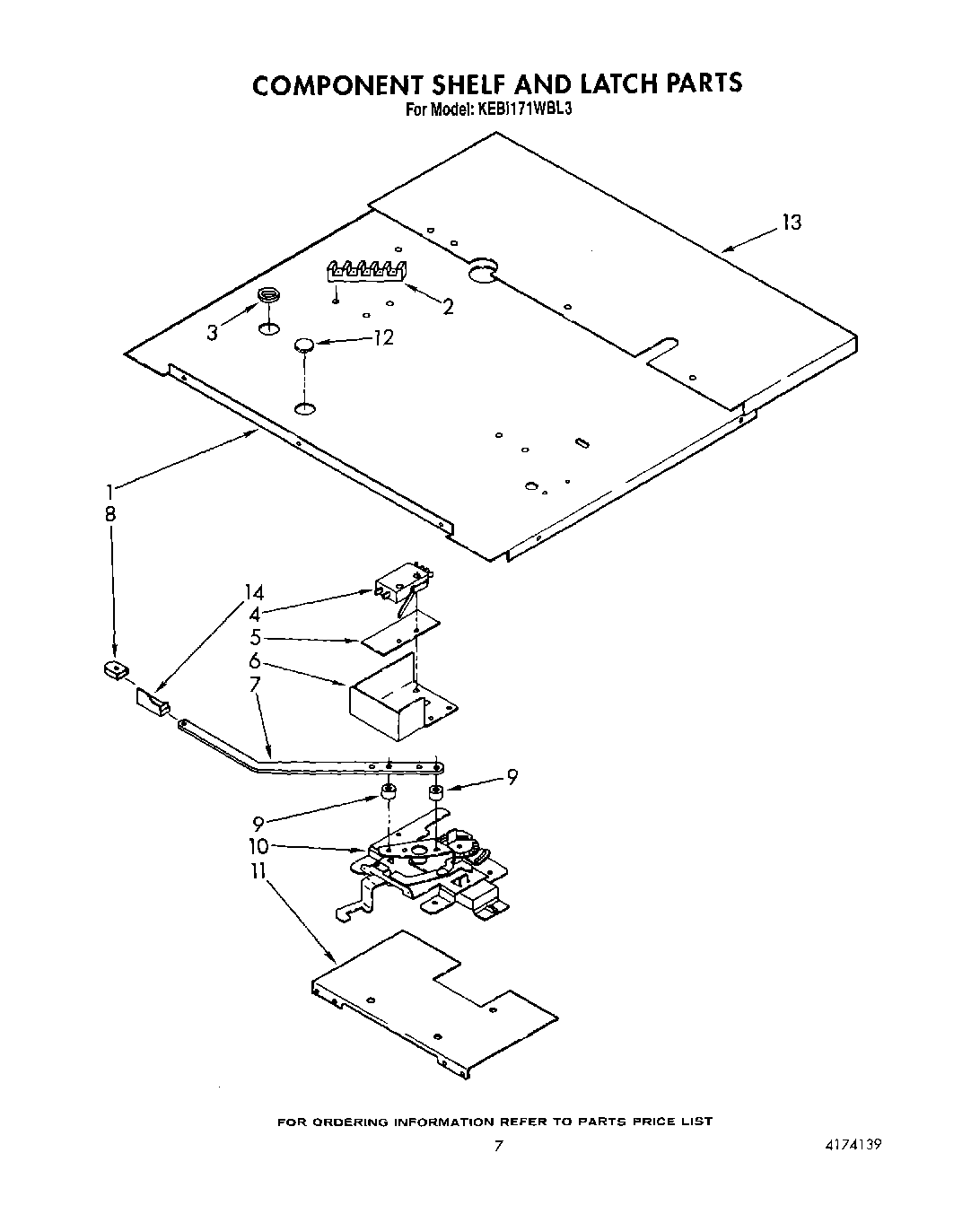

KEBI171WBL3 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
4Screw
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
8WP488234 Whirlpool Air Conditioner Screw
8Knob, Latch Handle
9Screw, 8-18 X 3/4 (4)
9Screw (2)
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13WP90767 Whirlpool Screw
13Extension, Shelf
13WP3177991 Whirlpool Screw
14Support, Latch
