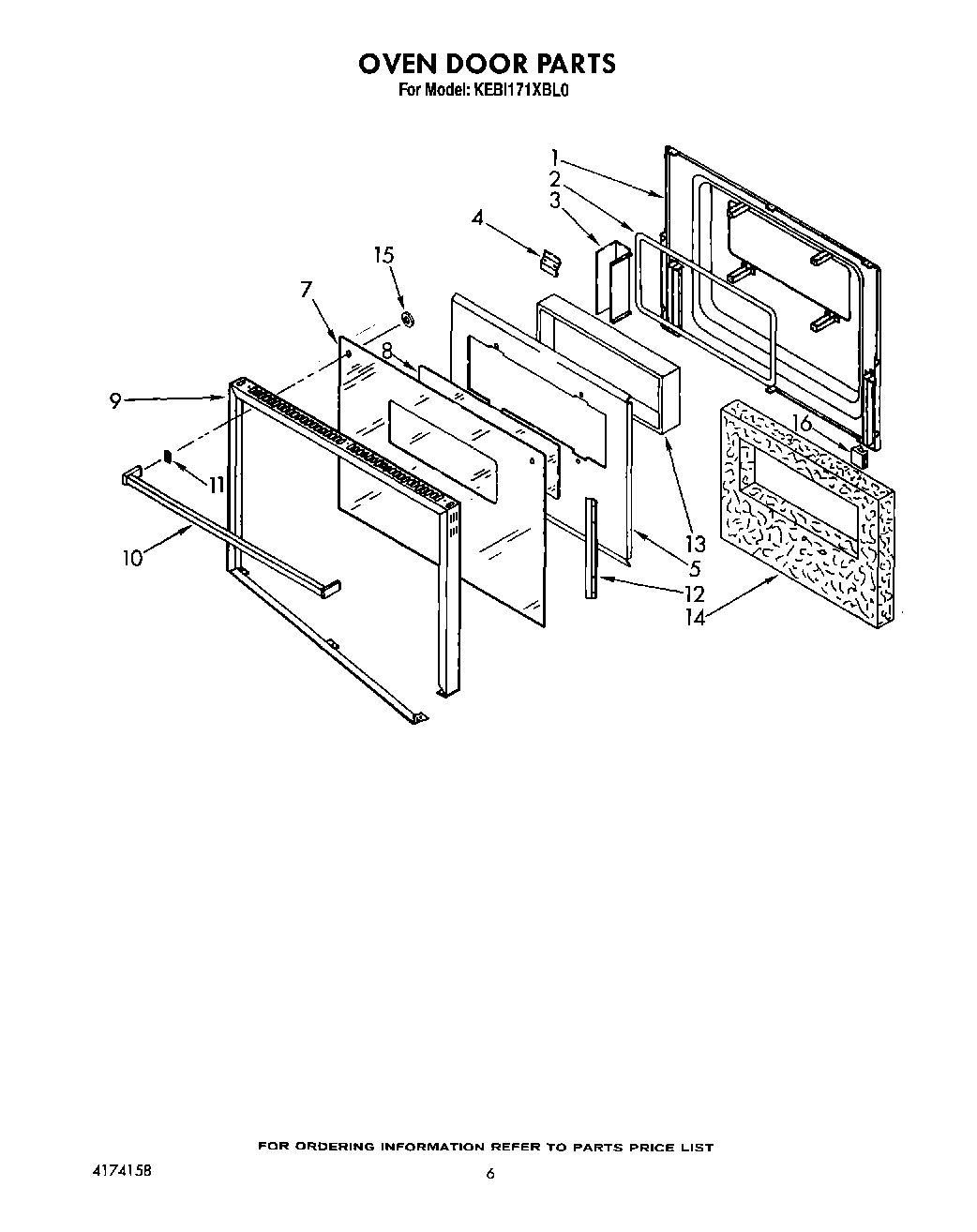

KEBI171XBL0 04 – OVEN DOOR

KEBI171XBL0 04 – OVEN DOOR

Written by

in

KEBI171XBL0 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
7	Glass, Door (White)
7	Glass, Door (Black)
8	Glass, Reflective
9	Frame, Door
10	Screw
10	Handle, Door (Screw)
10	Handle, Door (White)
10	Handle, Door (Black)
11	Spacer (2) (White)
11	Spacer (2)
12	WP90767 Whirlpool Screw
12	Bracket, Glass Mtg.
13	Window Package
14	Insulation, Door
14	Vent, Lower Trim (Screw (2))
15	Bushing, Door Handle
16	Bumper, Door Glass
