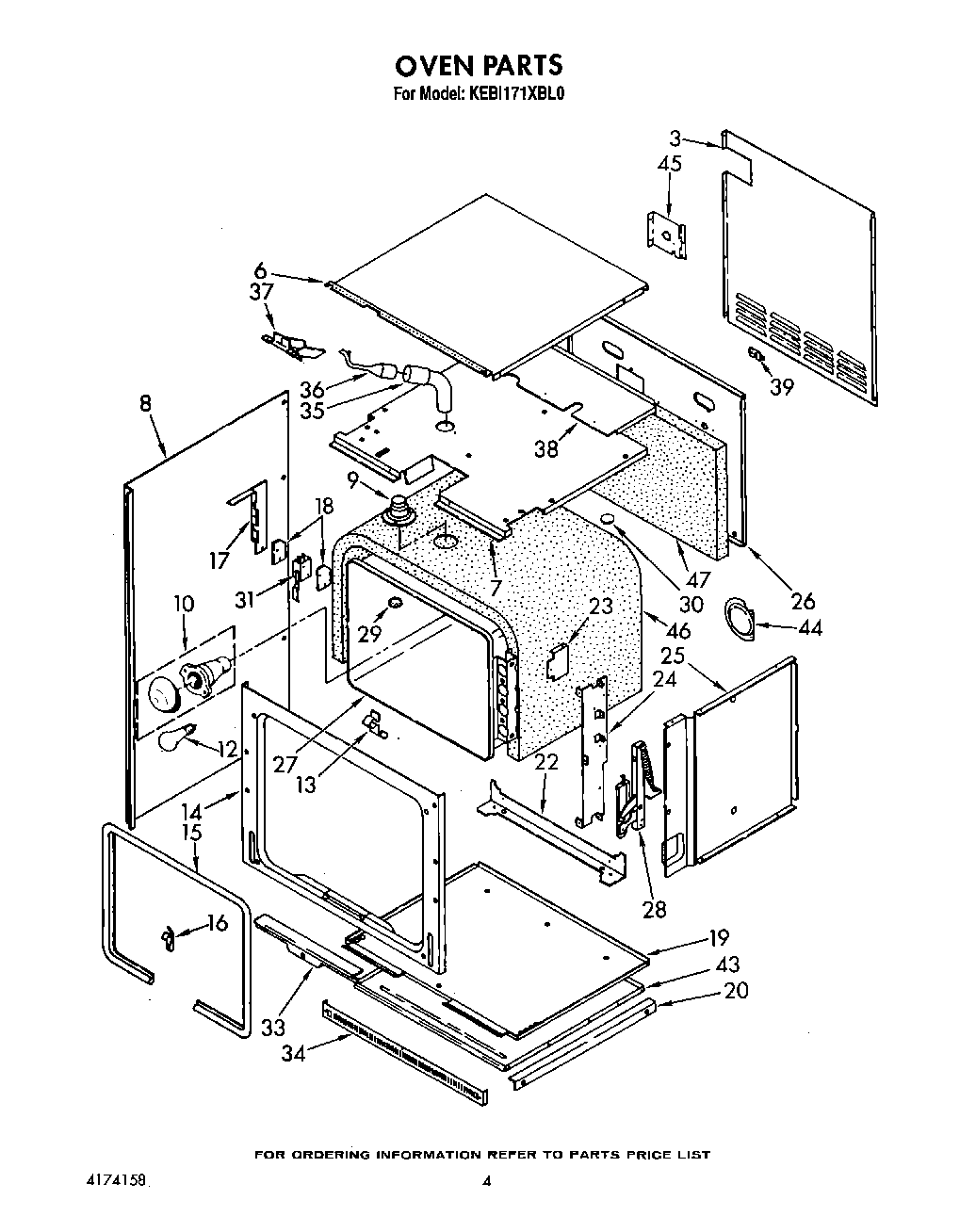

KEBI171XWH0 03 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
15	Screw (4)
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
24	Screw (6)
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
32	Insulator, Switch
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
38	Extension, Shelf
39	Screw
39	Cover, Cap Tube
39	WP3177991 Whirlpool Screw
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
