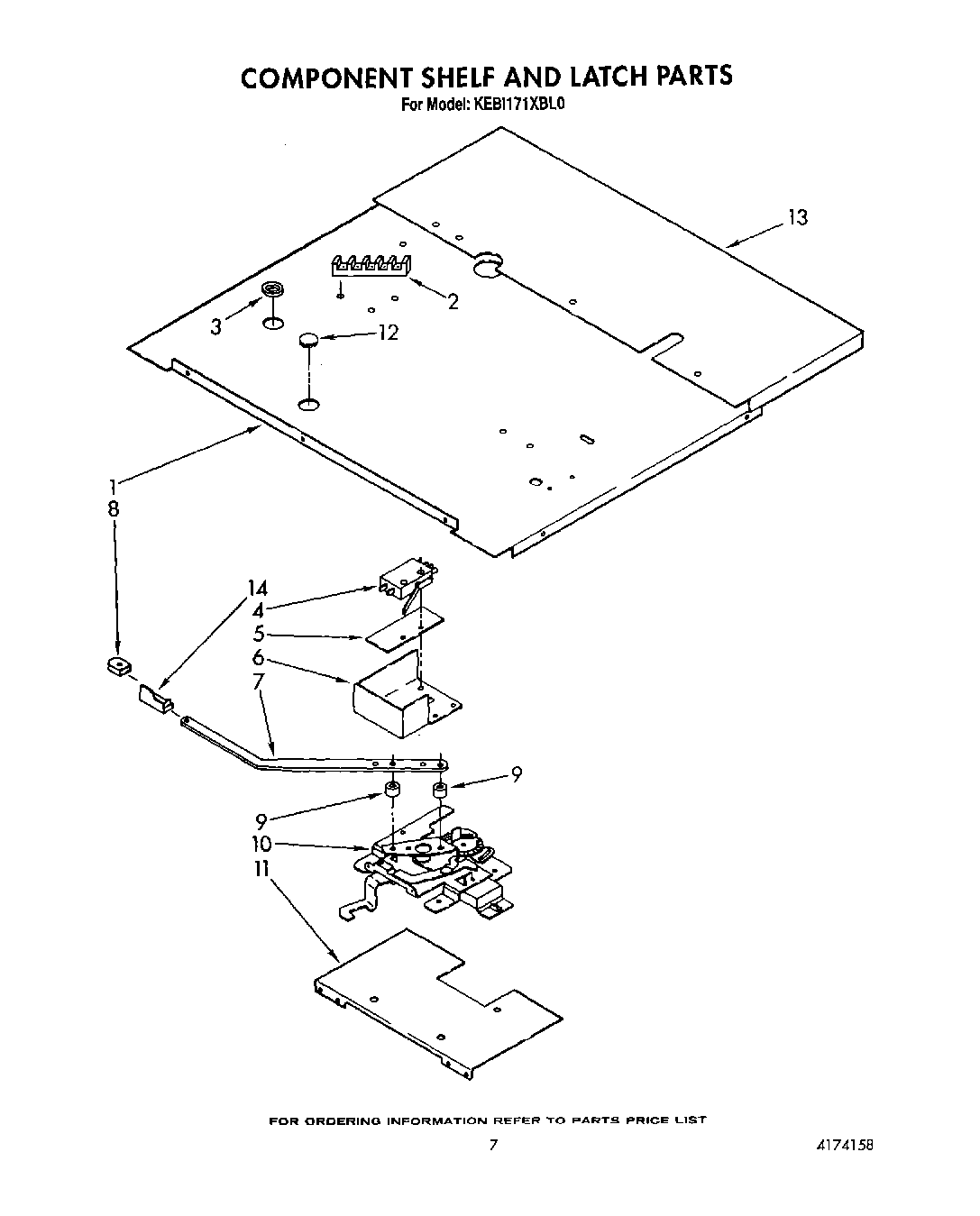

KEBI171XWH0 05 – COMPONENT SHELF AND LATCH

KEBI171XWH0 05 – COMPONENT SHELF AND LATCH

Written by

in

KEBI171XWH0 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
4Screw
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
8Knob, Latch Handle
9Screw, 8-18 X 3/4 (4)
9Screw (2)
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13WP90767 Whirlpool Screw
13Extension, Shelf
13WP3177991 Whirlpool Screw
14Support, Latch
14WP488234 Whirlpool Air Conditioner Screw
