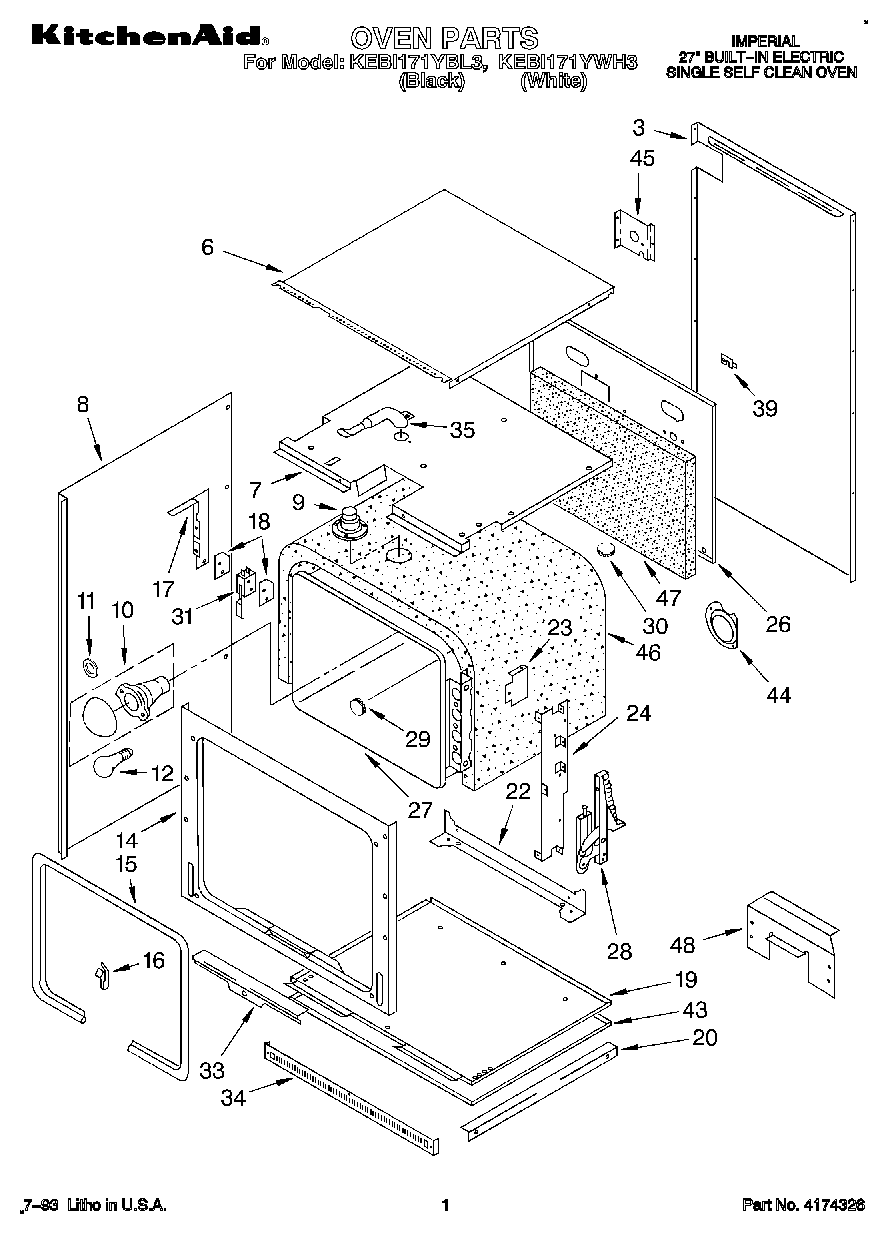

KEBI171YBL3 01 – OVEN, OPTIONAL

KEBI171YBL3 01 – OVEN, OPTIONAL

Written by

in

KEBI171YBL3 01 – OVEN, OPTIONAL

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
35	Tube, Vent
39	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
48	350930 Whirlpool White Spray Paint
48	Wire (14 Ga. 150 c Yellow)
48	Wire (14 Ga. 150 c Orange)
48	Wire (14 Ga. 150 c Green)
48	Wire (14 Ga. 150 c Brown)
48	Wire (14 Ga. 150 c Blue)
48	WP261869 Whirlpool Microwave Paint
48	242831 Whirlpool Oven Wire
48	Wire (12 Ga. 150 c Black)
48	Golden Harvest
48	18 Ga. 80~c Rating (Red)
48	350956 Whirlpool Spray Assembly
48	72017 Whirlpool Appliance Touch-Up Paint White
48	799344 Whirlpool Refrigerator Paint
48	WPL 832985
48	WPL 591014
48	WPL 350806
48	1
48	Wire (14 Ga. 200 c Brown)
48	WP72107 Whirlpool Touchup
48	Leveler (Thinner)
48	350942 Whirlpool Spray Paint
48	WPL 799832
48	Wire, 25` Roll (Black 14 Ga.)
48	Wire, 25` Roll (Red 14 Ga.)
48	Wire, 25“ Roll (White 14 GA.)
48	285006 Whirlpool Spray
48	72032 Whirlpool Touch Up Paint Black
48	WP482338 Whirlpool Refrigerator Adhesive
48	WPL 72112
48	Platinum (Uncut)
48	Almond (Uncut)
48	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
48	72113 Whirlpool Touch-Up Paint
48	WPL 3183752
48	Golden Harvest (Uncut)
48	Toast
48	Paint, Spray (13 Oz.) (Platinum)
48	Enamal, Toast (1 Qt. Uncut)
48	Screw
