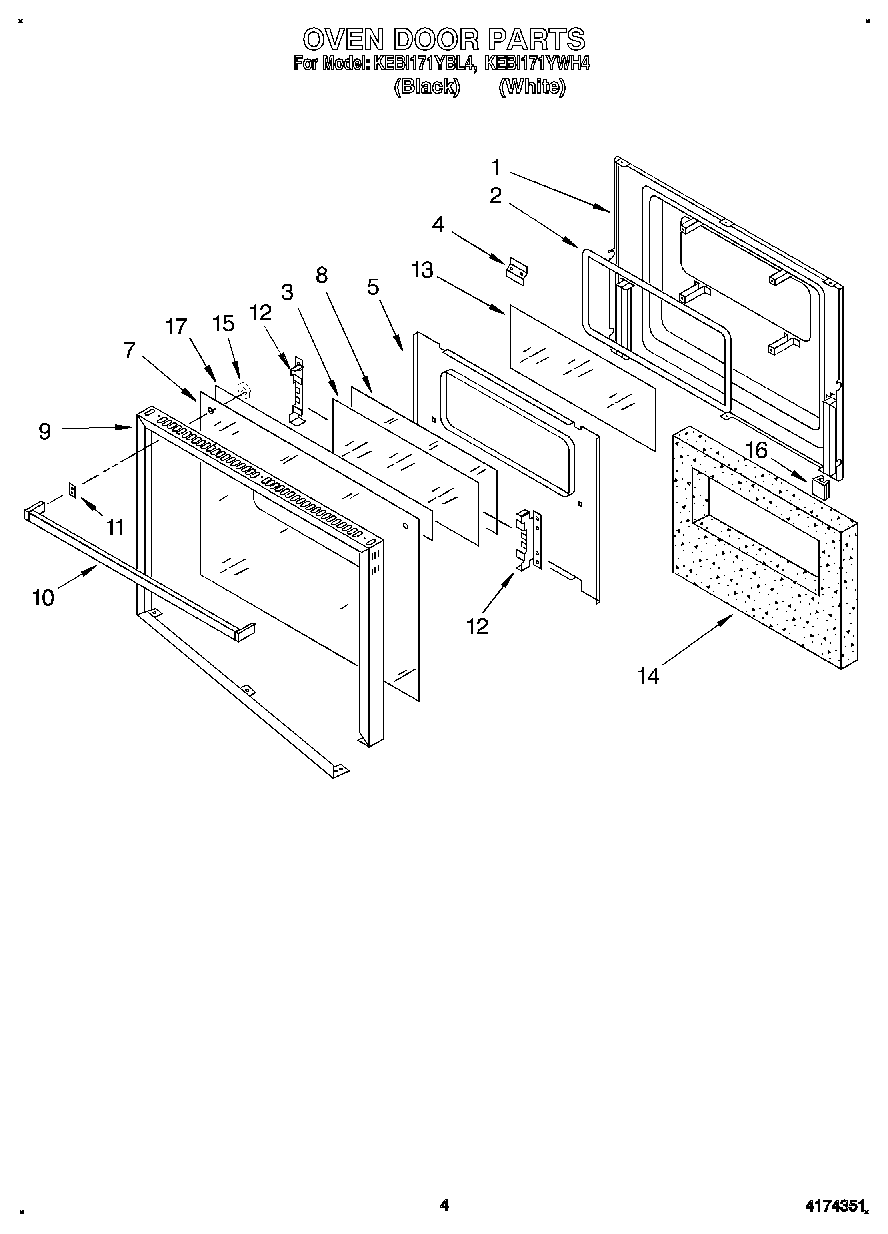

KEBI171YBL4 03 – OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Latch, Strike
5	Screw
5	Retainer, Insulation
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Spacer, Door Handle
12	Retainer, Glass
12	Screw
13	Glass, Clear
14	Insulation, Door
15	Screw
15	Bushing, Door Handle
15	Screw, 10-32 x 1/2
16	Bumper, Door Glass
17	Screw
17	Foil-Adhesive Backed
