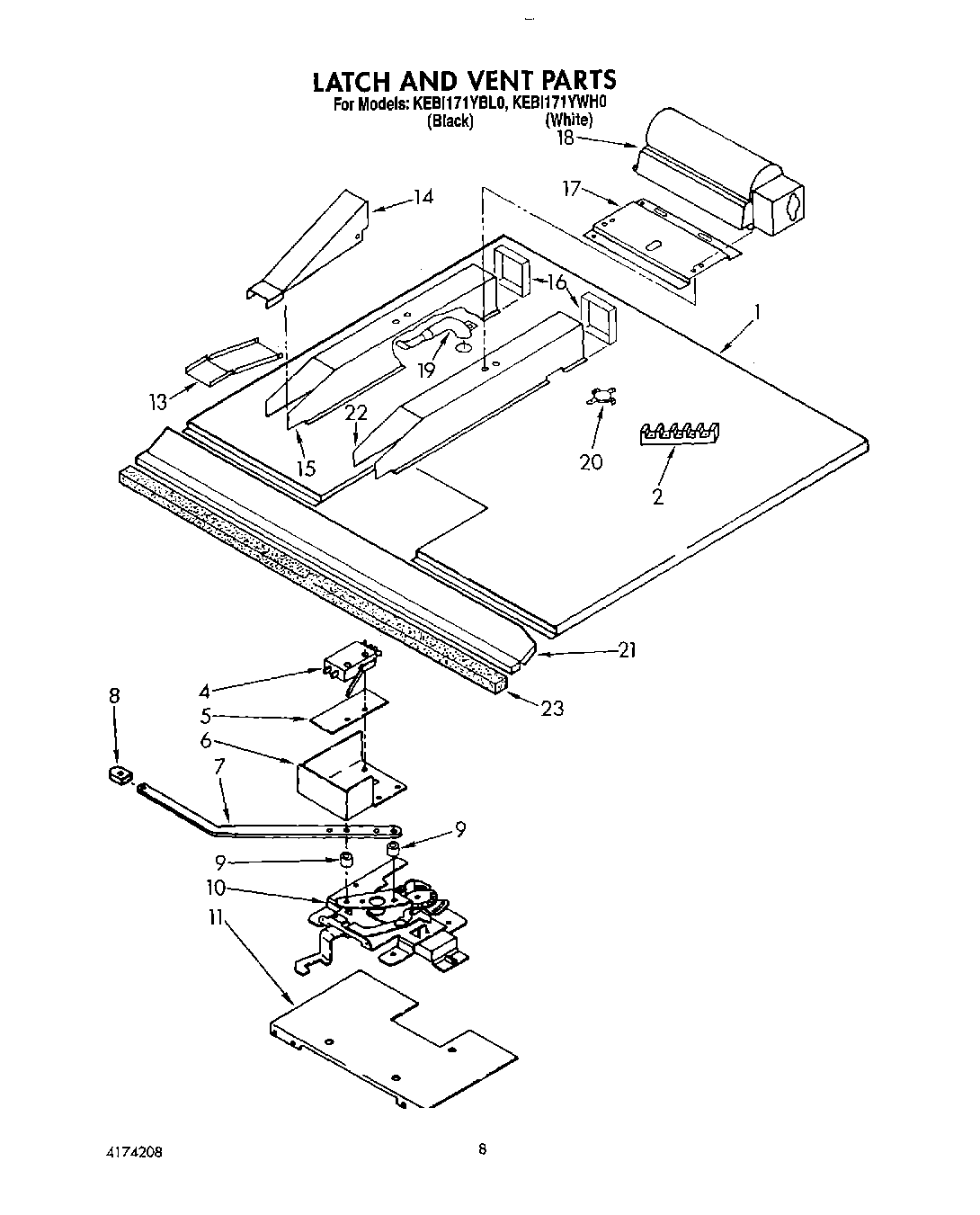

KEBI171YWH0 06 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2WP8203546 Whirlpool Terminal Block
2Screw (10-12 x .875)
4Screw
4Switch, latch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Knob, Latch Handle
8Screw
9Screw (2)
9Spacer, Latch Handle
10Latch, Mechanism
11Plate, Mounting
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Tube, Vent
19Screw
20WP90767 Whirlpool Screw
20SPST Thermostat
21Shield, Heat
21WP3177991 Whirlpool Screw
22Box, Vent
23Seal, foam
