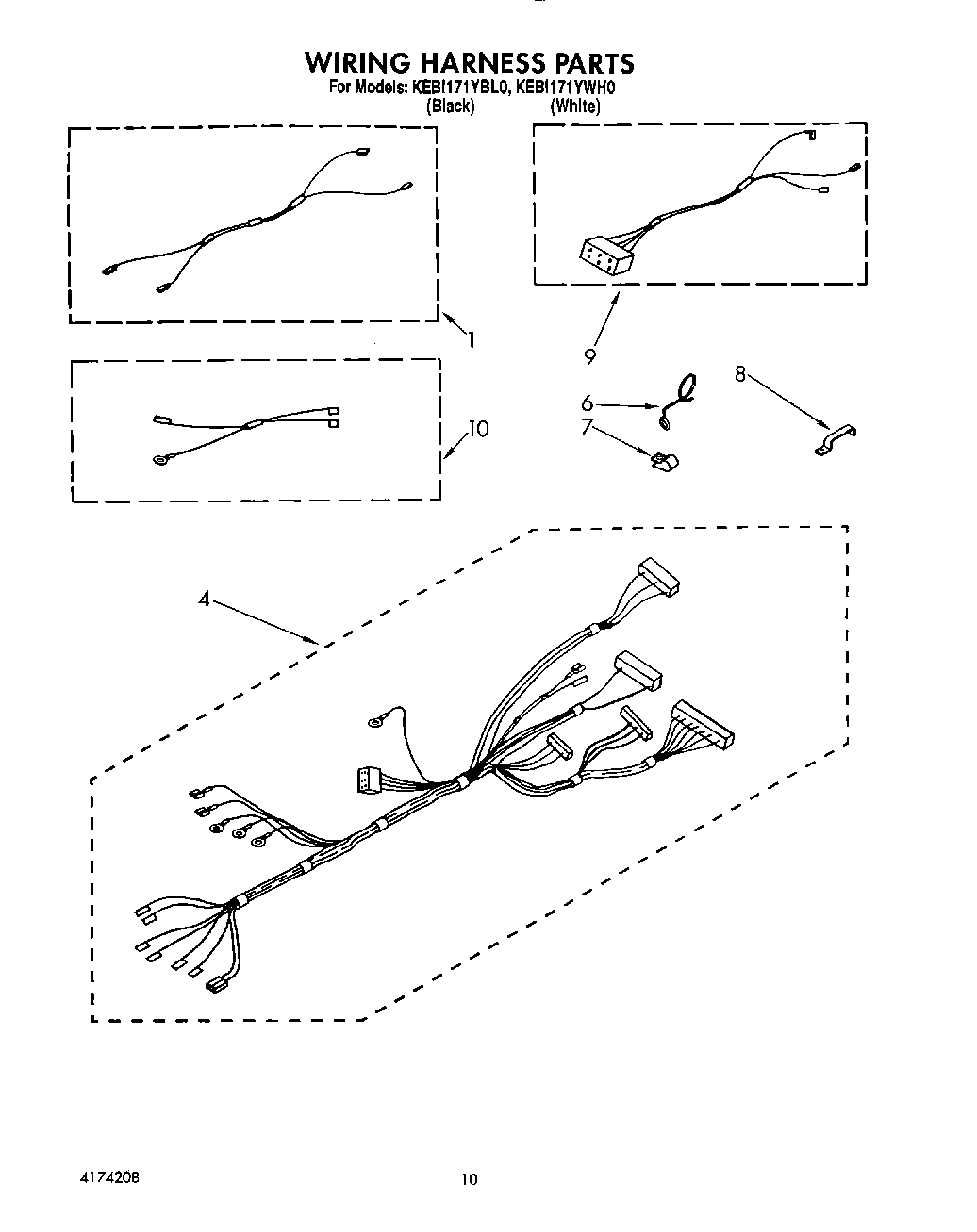

KEBI171YWH0 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness Wire (Door Switch)
4	Harness Wire (Oven)
6	WP90767 Whirlpool Screw
6	Standoff, Wire
7	WP308605 Whirlpool Refrigerator Clamp
8	WP112432 Whirlpool Nut Assembly
8	7111P002-60 Whirlpool Clamp
9	Harness, Wire (Latch Assy.)
10	Harness, Wire (Blower Fan)
