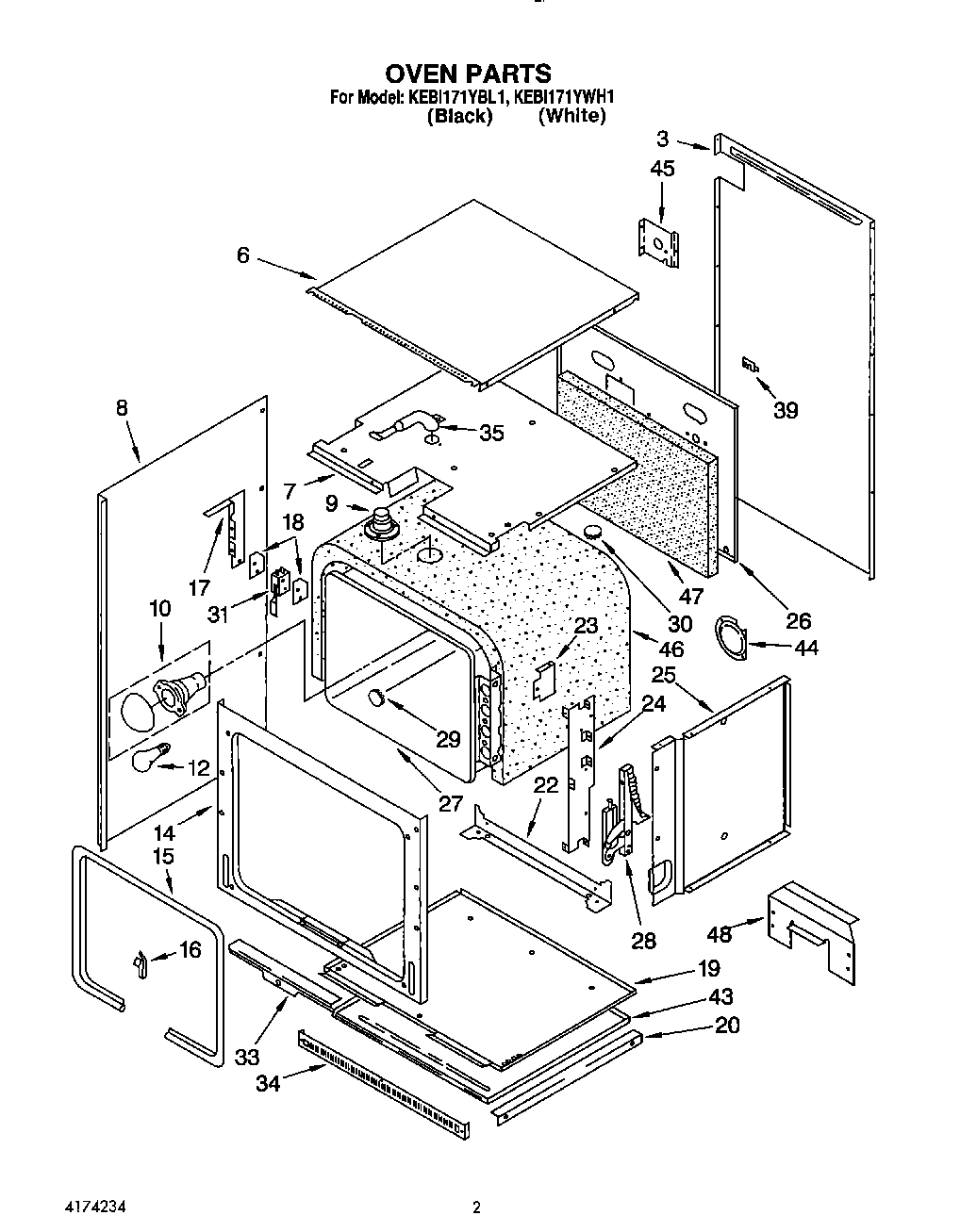

KEBI171YWH1 02 – OVEN, OPTIONAL

KEBI171YWH1 02 – OVEN, OPTIONAL

Written by

in

KEBI171YWH1 02 – OVEN, OPTIONAL

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
35	Tube, Vent
39	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
48	Wire (14 Ga. 150 c Blue)
48	242831 Whirlpool Oven Wire
48	WPL 832985
48	WPL 591014
48	WP261869 Whirlpool Microwave Paint
48	Wire (14 Ga. 150 c Orange)
48	Wire (14 Ga. 150 c Yellow)
48	Wire (12 Ga. 150 c Black)
48	18 Ga. 80~c Rating (Red)
48	Wire (14 Ga. 150 c Brown)
48	Wire (14 Ga. 200 c Brown)
48	1
48	WPL 350806
48	Wire (14 Ga. 150 c Green)
48	WPL 3183752
48	Toast
48	Golden Harvest (Uncut)
48	Golden Harvest
48	72113 Whirlpool Touch-Up Paint
48	WP90767 Whirlpool Screw
48	Almond (Uncut)
48	Leveler (Thinner)
48	WP72107 Whirlpool Touchup
48	799344 Whirlpool Refrigerator Paint
48	72017 Whirlpool Appliance Touch-Up Paint White
48	350956 Whirlpool Spray Assembly
48	Paint, Spray (13 Oz.) (Platinum)
48	Enamal, Toast (1 Qt. Uncut)
48	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
48	WP482338 Whirlpool Refrigerator Adhesive
48	72032 Whirlpool Touch Up Paint Black
48	285006 Whirlpool Spray
48	Wire, 25“ Roll (White 14 GA.)
48	Wire, 25` Roll (Red 14 Ga.)
48	Wire, 25` Roll (Black 14 Ga.)
48	WPL 799832
48	350942 Whirlpool Spray Paint
48	WPL 72112
48	Platinum (Uncut)
48	350930 Whirlpool White Spray Paint
