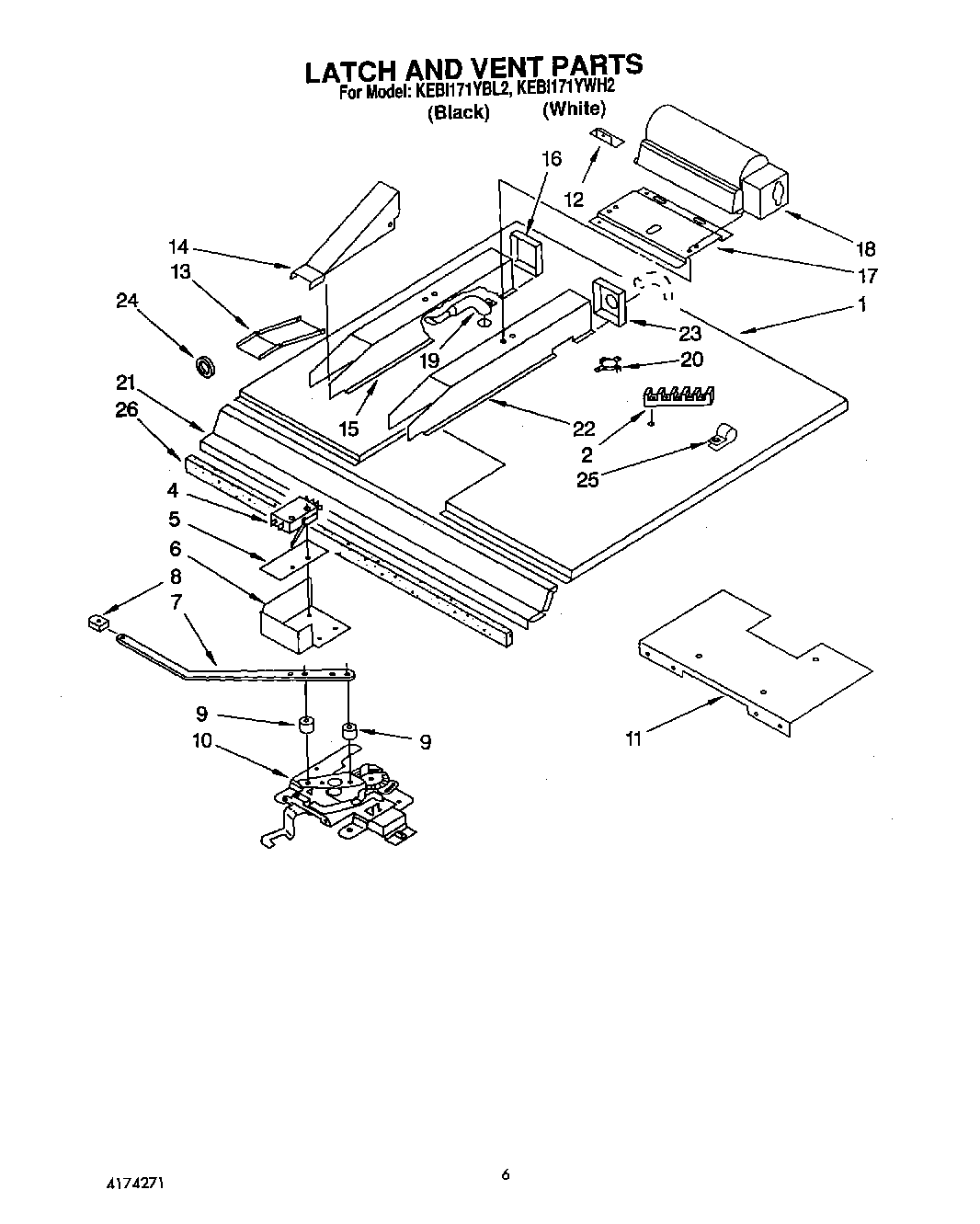

KEBI171YWH2 04 – LATCH AND VENT

KEBI171YWH2 04 – LATCH AND VENT

Written by

in

KEBI171YWH2 04 – LATCH AND VENT

Products

Position	Product
1	Module, Top
2	WP8203546 Whirlpool Terminal Block
2	Screw (10-12 x .875)
4	Screw
4	Switch, latch
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
9	Screw (2)
9	Spacer, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
12	Baffle-Blower
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent
16	End, Vent Box
17	Bracket, Mounting
18	Blower, fan
19	Tube, Vent
19	Screw
20	Screw
20	SPST Thermostat
21	Shield, Heat
21	WP3177991 Whirlpool Screw
22	Box, Vent
23	Seal, foam
24	Bushing
