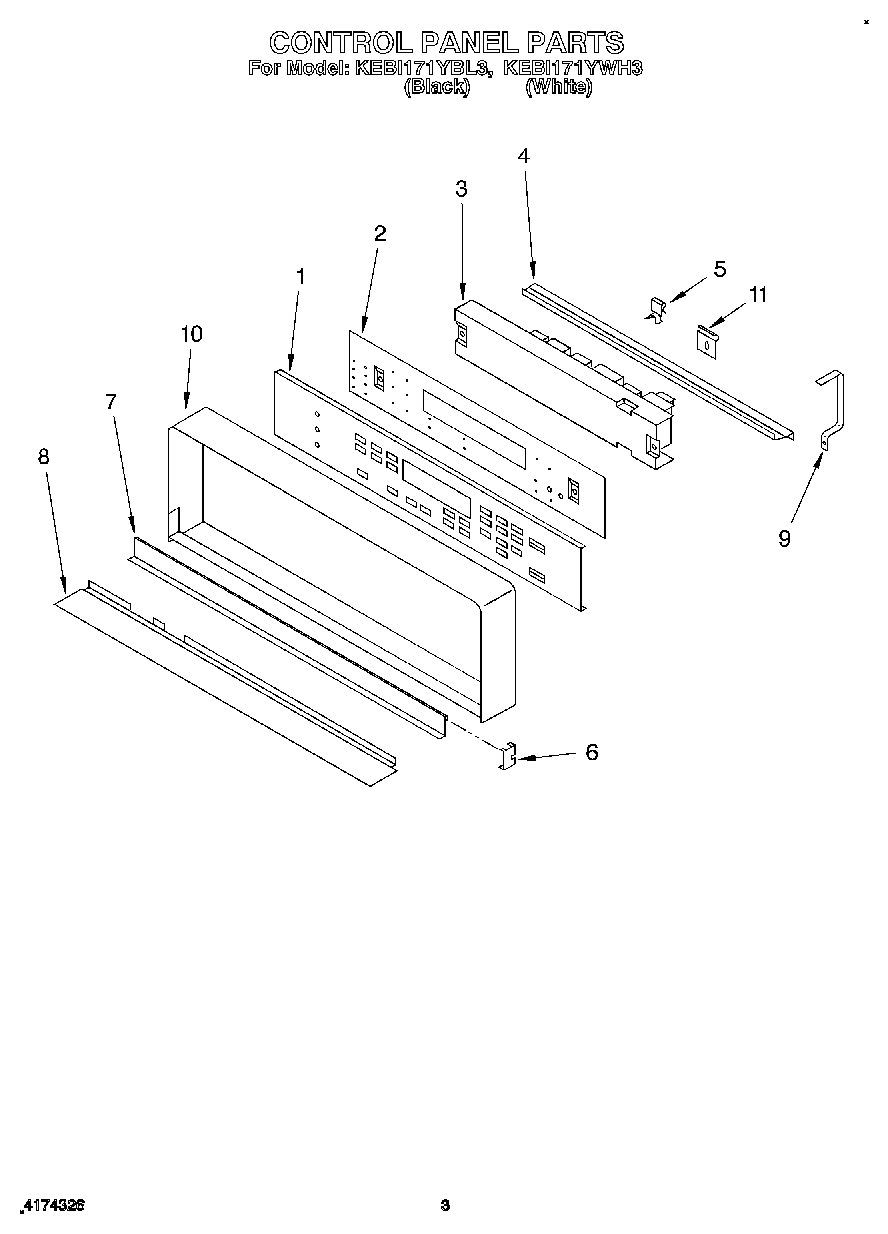

KEBI171YWH3 02 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Tech Sheet
	WPL 3171507
	Use & Care Guide
	Installation Instructions
1	Membrane, Switch (White, Model)
1	Membrane, Switch (Black Model)
2	Bracket, Mounting Switch Membrane
3	Screw (2)
3	Microcomputer
4	Retainer, Bracket
5	Clip, Retainer (3)
6	Trim, Door (2)
7	Door, Latch Handle (White)
7	Door, Latch Handle (Black)
7	Door, Latch Handle (Screw (2))
8	Trim, Panel
8	Screw
9	Screw (2)
9	Bracket (2)
10	Frame, Control Panel
11	Clip, Control Frame
