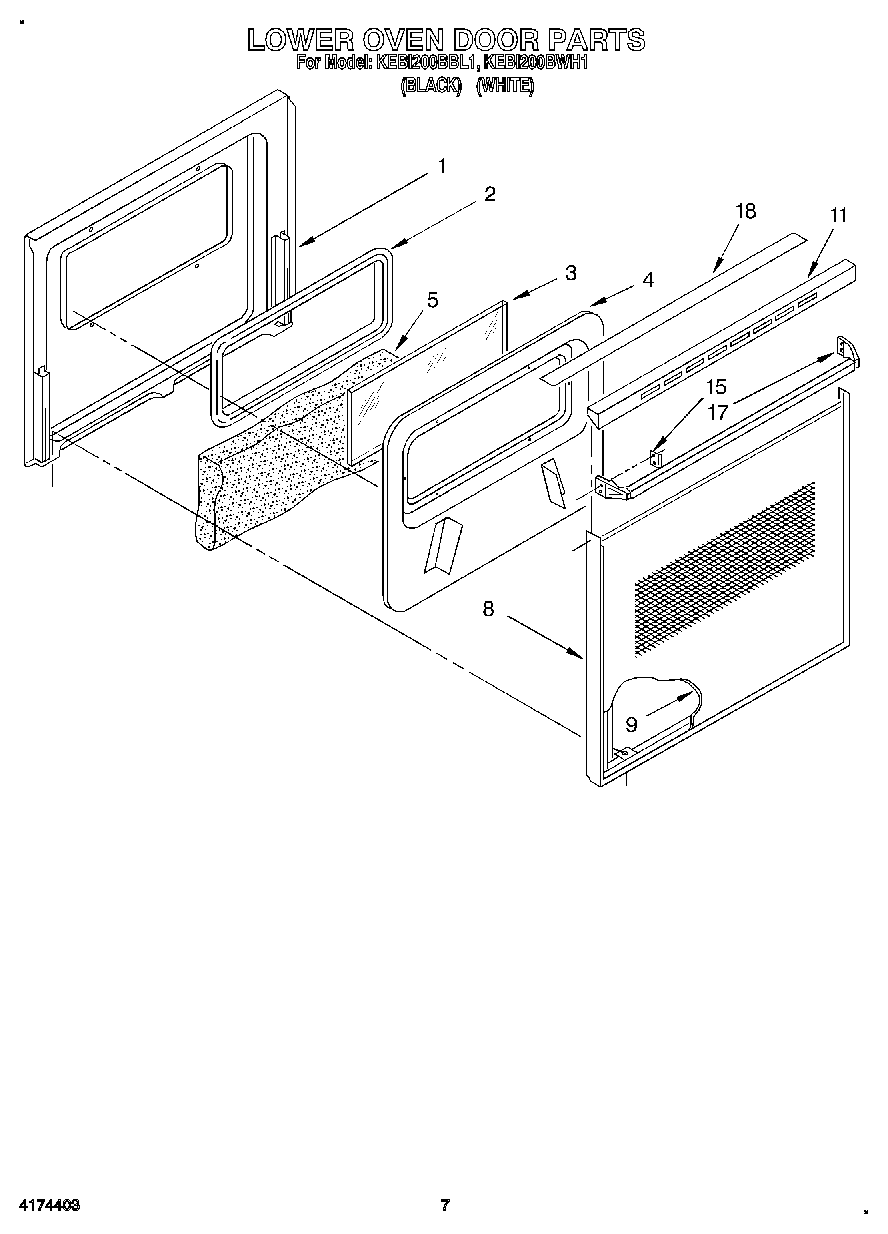

KEBI200BBL1 04 – LOWER OVEN DOOR

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Screw
4	Retainer, Insulation
5	Insulation
8	Frame, Panel (White Model)
8	Frame, Panel (Black Model)
9	Glass, Panel (White Model)
9	Glass, Panel (Black Model)
11	Top, Door (White Model)
11	Top, Door (Black Model)
15	Clip, Mtg (2)
15	Screw
17	Handle, Door (Screw (4))
17	Handle, Door (Black)
17	Handle, Door (White)
17	Back Splash (Screw (4) 10AB x 1/2“)
18	Cap, Top (White Model)
18	Cap, Top (Black Model)
