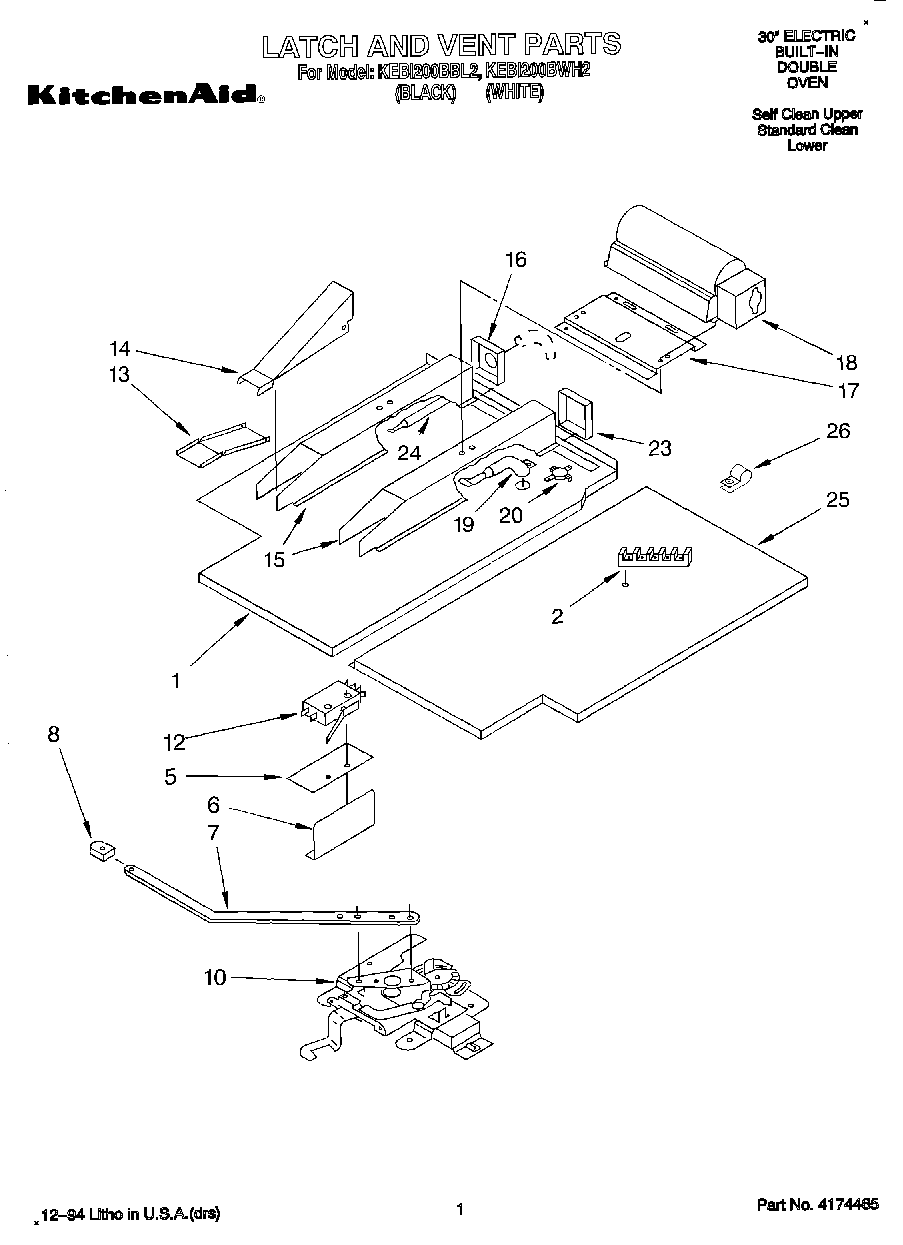

KEBI200BBL2 01 – LATCH AND VENT, LITERATURE

Products

Position	Product
	Use & Care Guide
	Tech Sheet
	Installation Instructions
1	Baffle, Vent
2	WP112432 Whirlpool Nut Assembly
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
5	Insulator, Switch
5	Screw
6	Shield, Latch
6	Screw
7	Screw
7	Handle, Latch
8	Knob, Latch Handle
8	Screw
10	Latch Mechanism
12	Switch, Latch
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent (2)
15	Screw
15	Screw, 8-18 X 3/4 (4)
16	End, Box Vent
17	Bracket, Mounting
17	WP3177991 Whirlpool Screw
18	Blower, fan
19	SCREW
19	Tube, Vent
20	SPST Thermostat
23	End, Vent Box
24	Tube, Vent Lower Oven
25	Baffle, Vent Mtg.
26	Clamp, Tube
26	WP488729 Whirlpool Refrigerator Door Screw
