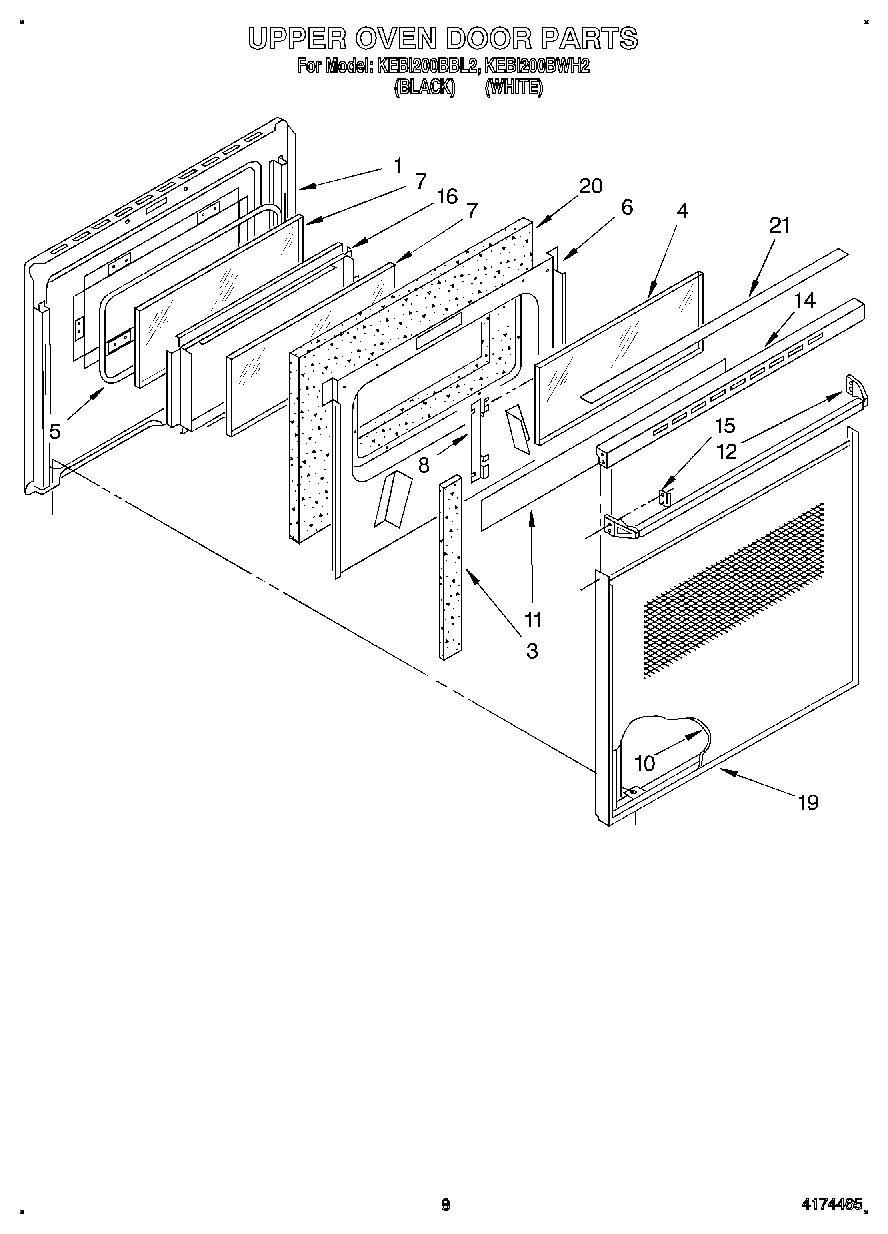

KEBI200BBL2 05 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Back Splash (Screw (4) 10AB x 1/2“)
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (Screw)
12	Handle, Door (White)
12	Handle, Door (Screw (4))
12	Handle, Door (Black)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
19	Frame, Panel (White Model)
19	Frame, Panel (Black Model)
20	Insulation, Door
21	Cap, Top (Black Model)
21	Cap, Top (White Model)
