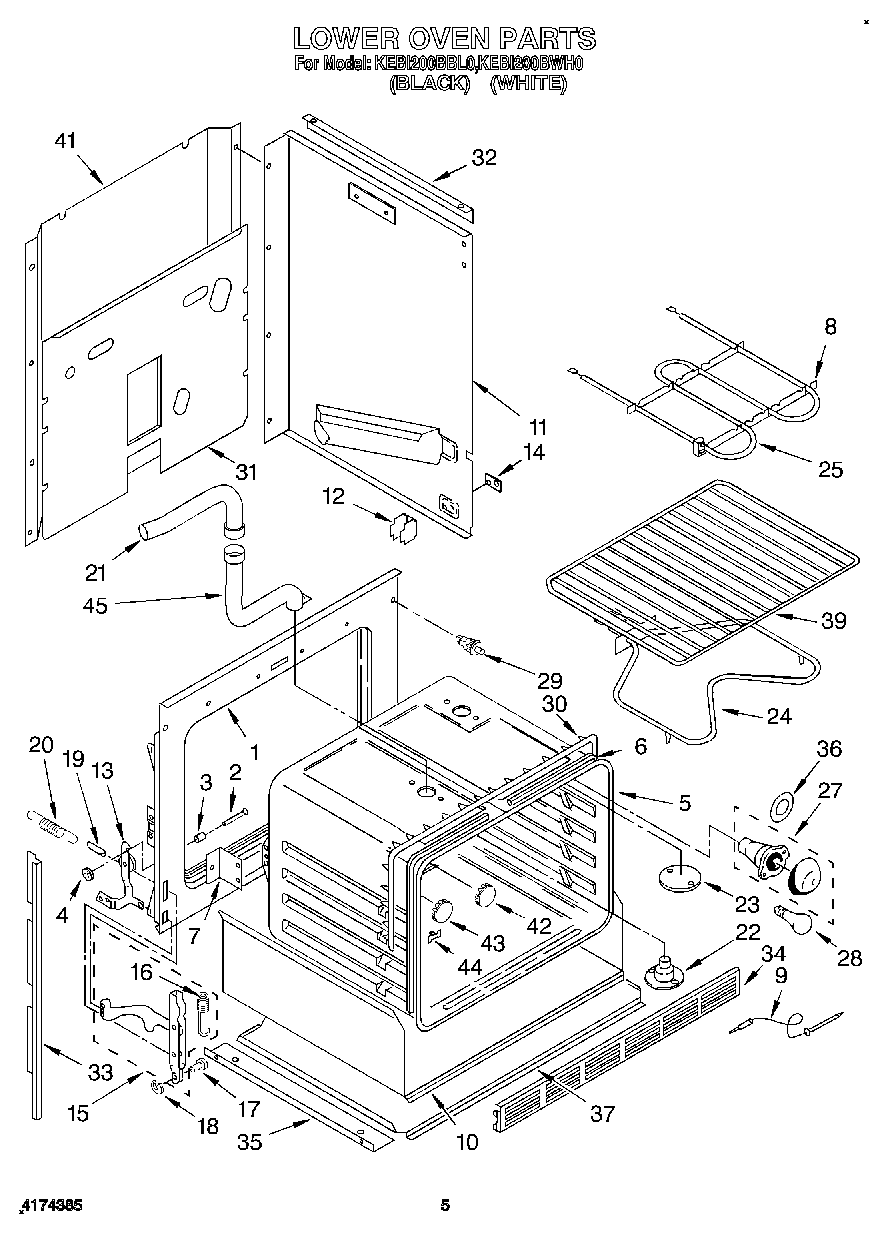

KEBI200BWH0 03 – LOWER OVENadmin2025-04-26T09:52:09+00:00KEBI200BWH0 03 – LOWER OVEN
Products
| Position | Product |
|---|
| 1 | Frame, Front |
| 2 | Pin, Hinge Ear (2) |
| 3 | Snubber, Door (2) |
| 4 | Pushnut (2) |
| 5 | Screw (3) |
| 5 | Oven 30`` |
| 6 | Heat Seal |
| 7 | Bracket, Oven Mounting (2) |
| 8 | Bracket, Element |
| 9 | Sensor, Heat |
| 10 | Insulation Tray |
| 11 | Side Wrapper (Left Side) |
| 11 | Side Wrapper (Right Side) |
| 12 | Support, Side Wrapper (4) |
| 13 | Hinge, Ear (Right Side) |
| 13 | Hinge, Ear (Left Side) |
| 14 | Plate, Side Panel (2) |
| 14 | WP308544 Whirlpool Screw |
| 15 | Channel, Arm (2) |
| 16 | Spring, Door Stop (2) |
| 17 | WP307986 Whirlpool Hinge Pin |
| 18 | Retainer Ring (2) |
| 19 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 20 | Spring, Oven Door (2) |
| 21 | Tube, Lower Vent |
| 22 | Eliminator, Smoke |
| 23 | WPL 310662 |
| 24 | WP661416 Whirlpool Bake Element |
| 25 | Unit, Broil |
| 25 | Screw (2) |
| 27 | W11594027 Whirlpool Range Oven Light Socket |
| 28 | RANGE ONLY 40W 120V APPL BULB |
| 29 | Switch, Door |
| 30 | WPL 3185197 |
| 31 | Panel, Back |
| 32 | Support Angle (2) |
| 33 | Side Trim (White Model, LH) |
| 33 | Side Trim (White Model, R.H.) |
| 33 | Side Trim (Black Model, L.H.) |
| 33 | Side Trim (Black Model, R.H.) |
| 34 | Grill, Bottom (Screw (3)) |
| 34 | WP488627 Whirlpool Refrigerator Screw |
| 34 | Grill, Bottom (Black) |
| 34 | Grill, Bottom (White) |
| 35 | Angle, Support (2) |
| 36 | WP3184533 Whirlpool Range Light Lens Gasket |
| 37 | Cover, Bottom |
| 39 | Rack, Straight |
| 41 | WPL 3185959 |
| 41 | WP488729 Whirlpool Refrigerator Door Screw |
| 42 | Button, Plug |
| 43 | WPL 3185086 |
| 44 | WPL 3169107 |
| 45 | WPL 310433 |
| 45 | WPL 310435 |
| 45 | SCREW |
| 45 | Tube, Vent Male |
