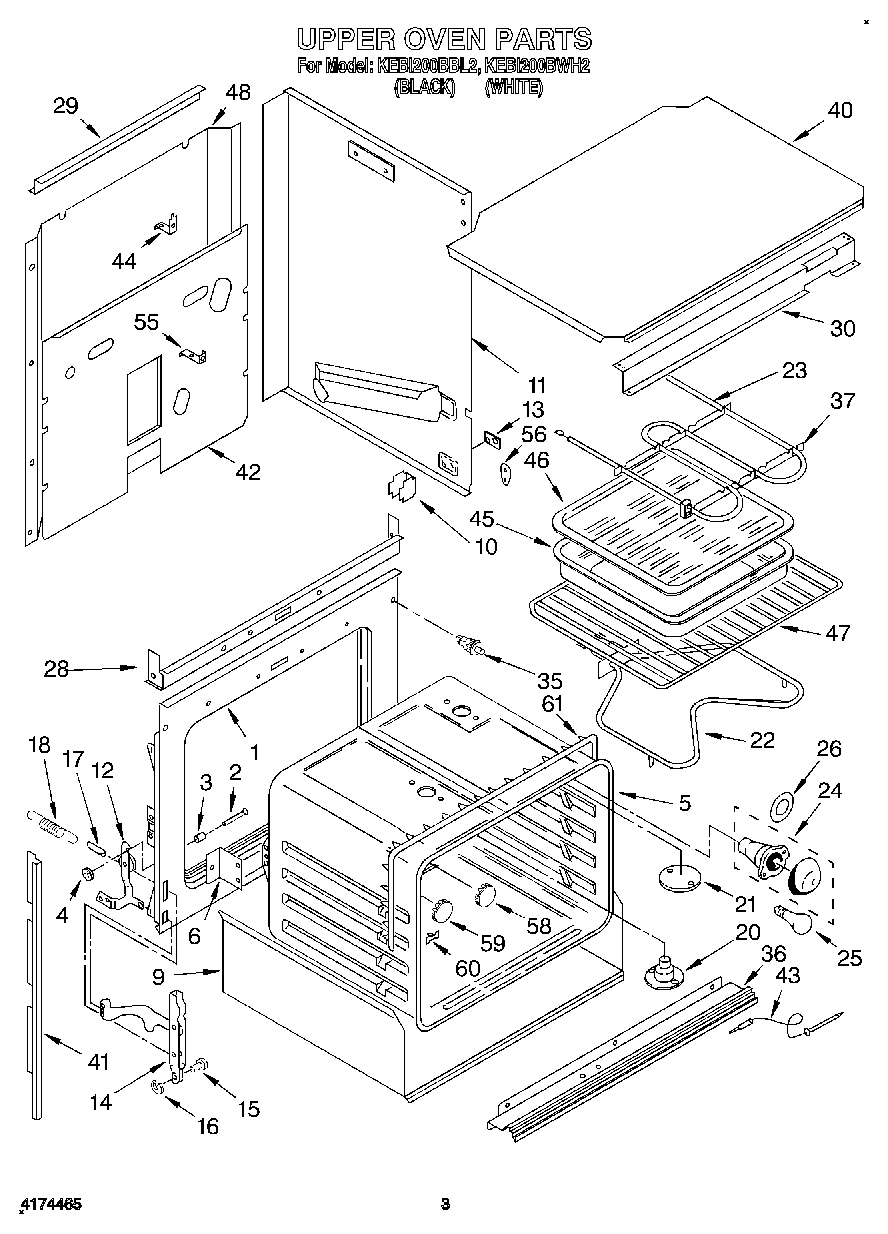

KEBI200BWH2 02 – UPPER OVENadmin2025-04-26T09:53:02+00:00KEBI200BWH2 02 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Frame Front |
| 2 | Pin, Hinge Ear (2) |
| 3 | Snubber, Door (2) |
| 4 | Pushnut (2) |
| 5 | Screw (3) |
| 5 | Oven 30`` |
| 6 | Bracket, Oven Mounting (2) |
| 6 | SCREW |
| 9 | Insulation Tray |
| 10 | Support, Side Wrapper (4) |
| 11 | Side Wrapper (L.H.) |
| 11 | Side Wrapper (R.H.) |
| 12 | Hinge, Ear (Right Side) |
| 12 | Hinge, Ear (Left Side) |
| 13 | WP308544 Whirlpool Screw |
| 13 | Plate, Side Panel (2) |
| 14 | Channel Arm (2) |
| 15 | WP307986 Whirlpool Hinge Pin |
| 16 | Retainer Ring (2) |
| 17 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 18 | WP308126 Whirlpool Door Spring |
| 20 | Eliminator, Smoke |
| 22 | WP661416 Whirlpool Bake Element |
| 23 | Unit, Broil |
| 24 | W11594027 Whirlpool Range Oven Light Socket |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | WP3184533 Whirlpool Range Light Lens Gasket |
| 28 | Baffle, Top Insulation |
| 30 | screw |
| 30 | Bracket, Mounting Control Frame |
| 35 | Switch, Door |
| 36 | Trim, Center vent (White Model) |
| 36 | Screw |
| 36 | Trim, Center vent (Black Model) |
| 37 | Bracket, Element |
| 37 | Screw (2) |
| 40 | Cover, Top |
| 41 | Side Trim (White Model, RH) |
| 41 | Side Trim (Black Model, RH) |
| 41 | Side Trim (Black Model, LH) |
| 41 | Side Trim (White Model, LH) |
| 42 | Panel, Back |
| 43 | Sensor, Heat |
| 44 | Stand Off |
| 46 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 47 | Rack, Straight |
| 47 | Rack, Offset |
| 48 | WPL 3185961 |
| 55 | WP488729 Whirlpool Refrigerator Door Screw |
| 55 | WPL 309102 |
| 56 | WPL 310662 |
| 58 | Button, Plug |
| 59 | WPL 3185086 |
| 60 | WPL 3169107 |
| 61 | WPL 310433 |
| 61 | WPL 310435 |
| 61 | WPL 3149328 |
| 61 | WPL 3185197 |
