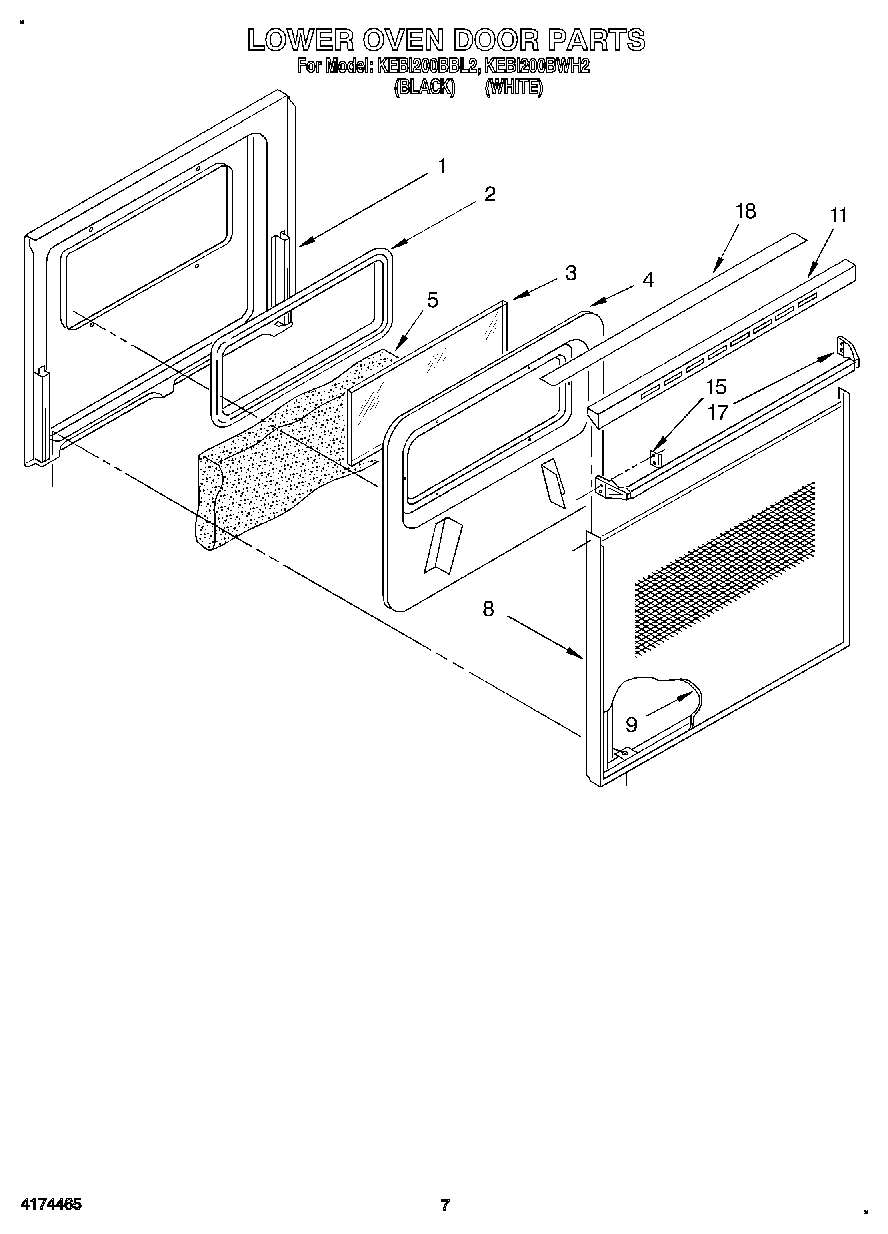

KEBI200BWH2 04 – LOWER OVEN DOORadmin2025-04-26T09:51:13+00:00KEBI200BWH2 04 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP488729 Whirlpool Refrigerator Door Screw |
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Seal, Door |
| 3 | Glass, Clear |
| 4 | Screw |
| 4 | Retainer, Insulation |
| 5 | Insulation |
| 8 | Frame, Panel (White Model) |
| 8 | Frame, Panel (Black Model) |
| 9 | Glass, Panel (White Model) |
| 9 | Glass, Panel (Black Model) |
| 11 | Top, Door (White Model) |
| 11 | Top, Door (Black Model) |
| 15 | Clip, Mtg (2) |
| 15 | Screw |
| 17 | Handle, Door (Screw (4)) |
| 17 | Handle, Door (Black) |
| 17 | Handle, Door (White) |
| 17 | Back Splash (Screw (4) 10AB x 1/2``) |
| 18 | Cap, Top (White Model) |
| 18 | Cap, Top (Black Model) |
