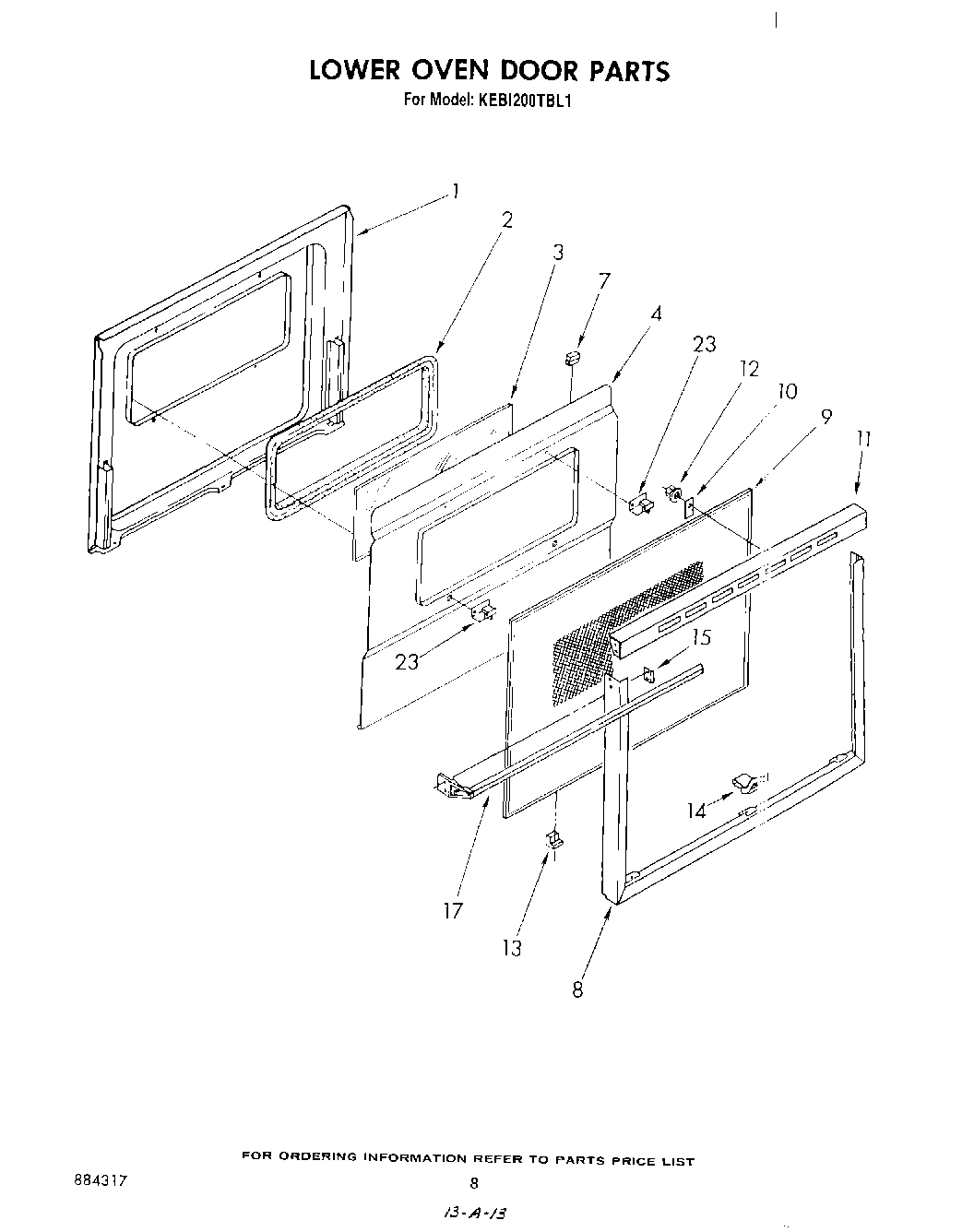

KEBI200TBL1 04 – LOWER OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	Book, Cooking Guide
	Tech Sheet
	List, Parts
1	Liner, Door
1	WP488729 Whirlpool Refrigerator Door Screw
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
7	Channel, Rubber (4)
8	Frame, Door
9	Glass, Outer
10	hold down, glass (2)
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	Clip, Glass (10)
15	Clip (2)
17	WP355515 Whirlpool Screw
17	Handle, Oven Door
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	18 Ga. 80~c Rating (Red)
23	Wire, 25` Roll (Red 14 Ga.)
23	Rotisserie Kit
23	Wire, 25` Roll (Black 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	Touch-Up Oven (1 Oz.)
23	Wire (14 Ga. 200 c Brown)
23	1
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Wire (12 Ga. 150 c Black)
23	Spacer (4)
23	Grease
